COMPLETE TUBE MILL & SLITTING FACILITY FOR SALE
EQUIPMENT INSTALLED
Click on photographs for more specifications
1550mm x 6mm x 33 TON FAGOR LOOP INJECTOR  SLITTING LINE, Stk# 113188
Year 1991
Material: Hot and Cold Rolled Steel
Strip width: 500 to 1550mm
Thickness Range: 0.9 to 6mm
Line Speed: 75 to 150m/min
Total AC/DC Power Installed: 65HP/460HP

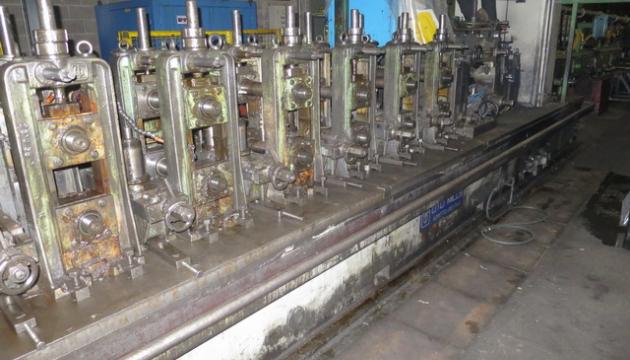

Tube Mills
127mm x 4mm NEIROTTI TUBE MILL, Stk # 113190

Includes Mair Packaging Line
Tube Diameter Range: 42mm to 127mm
Wall Thickness Range: 1.2mm to 4mm
Line Direction: Right to Left
Line Speed: 100mpm
60.3mm x 3mm OTO MILLS TUBE MILL LINE, Stk#113191

Includes Mair Packaging Line
Year: 1991 Update: 2007
Diameter Range: 16mm - 60.3mm
Thickness Range: 0.8mm to 3mm
Tube Length: 4 to 8meter
Line Speed: 130 mpm
32mm x 2mm SOMENOR WELDED TUBE REDUCING MILL, Stk #113192

Wall Thickness Range: 0.6mm - 2mm
Line Speed: 35 to 100 mpm
Tube Outside Diameter: 8mm  - 32mm
Tube Length: 8 meter
Shaft Diameter: 40mm
EXTENSIVE AMOUNT OF TOOLING AND TURKSHEADS FOR ROUNDS, SQUARES AND OVALS

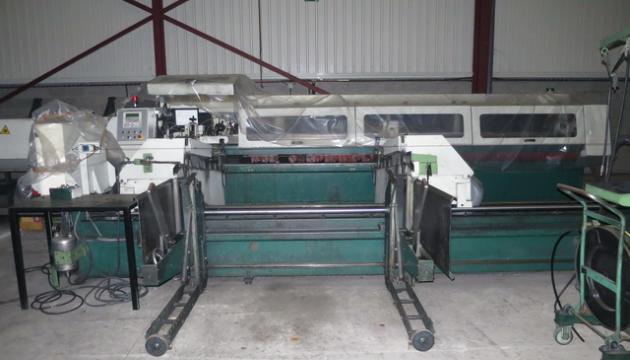

80mm ADIGE RE CUT MACHINE
Stk #113189
Year: 2003
Round Min. Diameter: 12mm
Round Max. Diameter: 80mm
Square Range: 10mm x 10mm / 70mm x 70mm
Rectangular: 15mm x 10mm / 80mm x 70mm
Min Solid Bars: 12mm
Max Solid Bars: 30mm
