Everlasting Valve
Severe Service Valves to
Cut Maintenance and Replacement Costs
Do you replace or repair an installed valve more than once per year? If so, there is a better valve for your application. Abrasive and corrosive materials, extreme temperatures and high pressure are all problematic for standard rotary valves. Designed to resist erosion,
Everlasting Valve Company's rotating disc valve is made for tough applications in pneumatic conveying or vessel discharge systems

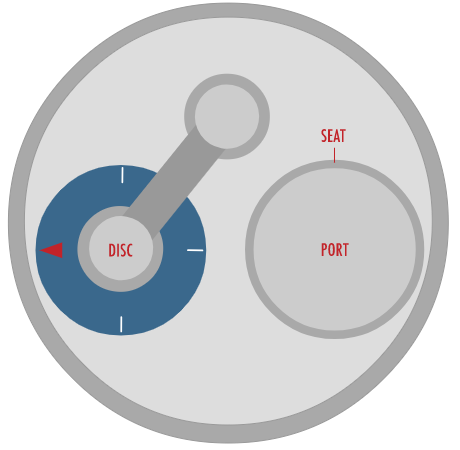

How They Work
Unique to the market,
Everlasting Valve engineered a self-lapping, rotating disc valve to provide longer service life and a tighter shut-off even with abrasive media.
Spring-loaded discs maintain contact with the sealing surfaces and protect them from erosive materials. A double disc and seat design permit inlet from either direction, so the valve can also be installed backward.
Other valves open and close in the same place each time, developing scratches and wear patterns that can weaken the seal, causing costly leaks. As the EVL valve opens and closes, the disc rotates incrementally, uniformly polishing away scratches and creating an ever-tightening seal. The seal actually gets tighter and stronger as it wears "in".
Advantages over traditional designs:
- Self Cleaning Internals
- Protection of Sealing Surfaces
- Positive Shut Off
- Self Lapping Discs
- Separation of Pneumatic Actuator and Valve
|
|
|
|
QUOTE OF THE DAY
"If you think hiring professionals is expensive, try hiring amateurs"
- Anonymous
|
|
|
|
|
|
Bulk Material Valves
For applications handling abrasive solids,
Everlasting's BMV's withstand tough
applications including dry solids dense and dilute phase pneumatic conveying system
s for transporter fill valve, discharge, vent and filling applications, transfer lines, under baghouses, silos, cyclones, ESPs and dust collectors.
 Process Valves
Everlasting Valve's Process Valves are used worldwide for reactor loading, lockhoppers, pneumatic conveying systems, vessel discharge, and slurry applications.
Applications include etroleum refineries catalysts, chemical plant reactor loading, pneumatic conveying, inorganic chemicals, and line diverters.
Diverter Valves
Eliminate wasted time, downstream line plugging, full fringe bins and off-quality silos for significant savings in terms of parts, labor and lost production.
Designed for erosive slurries, abrasive solids and dry powders, including Portland Cement, bottom and fly ash, titanium dioxide, tabluar alumina, alumina silica, kaolin, Raney nickel catalysts and metal silicon powders.
|
SPECIFICATIONS
|
BULK
MATERIAL
VALVES
|
PROCESS VALVES
|
DIVERTER
VALVES
|
|
SIZE
|
- 2" (50mm) through 14" (350mm), including 5" (125mm)
- Cast iron sizes 2" through 8" available from stock
|
- ½" (12mm) through 18" (450mm)
|
- 4" (50mm) through 14" (350mm), including 5" (125mm)
|
|
PRESSURE
|
- Vacuum to 100 psig (7 bar)
|
- ANSI Class 150 through 2500
- Vacuum to 10,000 psig
|
- ANSI Class 150 and 300
- Vacuum to 100 psig (7 bar)
|
|
TEMPERATURE
|
|
- -50°F (-46°C) to +1500°F (+815°C)
|
|
|
FEATURES/
TRIM
|
- Two-way on/off
- 440 Stainless Steel
- Pneumatic cylinder actuator
|
- Stellite #6
- 440 Stainless Steel
- Tungsten Carbide
|
- Stellite #6
- 440 Stainless Steel
- Tungsten Carbide
|
|
CONSTRUCTION
|
- Cast Iron to +450°F (+232°C)
- Carbon Steel to +550°F (+288°C) - Special design to +750°F (+400°C)
|
- Carbon or Stainless Steel
- Hasteloys
- Inconels
- Duplex SS, F-255
- Your Choice
|
- Cast Iron
- Carbon Steel
- Stainless Steel
- Your Choice
|
|
END CONNECTIONS
|
- Flanged, ASME and DIN
- Flangeless
|
- Flanged
- Buttweld
- Flangeless
|
- Drill Class 125 Flanged (Cast Iron)
- Flanged, ASME and DIN (Carbon Steel)
- 30° or 45° Laterals
|
|
ACTUATION
|
|
- Level, Manual
- Hand Wheel, Manual
- Air Cylinder
- Hydraulic Cylinder
- Electric
|
- Lever, Manual
- Hand Wheel, Manual
- Air Cylinder
- Electric
|
For more information, contact your TEC representative or visit Everlasting Valve Company. |
|
