Separation Distance Between Flex Circuit Cores

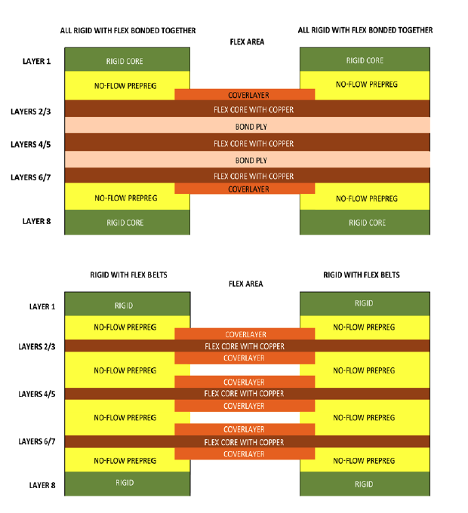

When a product requires two or more cores, there is a need to define in the specification what the spacing requirements are between cores. The spacing can impact product performance (physical and electrical) and, most obviously, thickness. In some designs, the spacing between flex circuit cores may be filled with dielectric material, but with other designs the dielectric between flex cores in the flex area may be omitted in order to assure maximum flexibility.



If the core layers must be unbonded, this should be noted in the documentation. Those areas where bonding is to be avoided should be identified in the design artwork package. The unbonded areas must have a coverlayer applied to each exposed side. In laminated areas, it is not required, and arguably a liability, when considering reliability for plated through-holes in the assembly process. Obviously, in areas where interconnection is required between multiple layers of internal circuits, the dielectric properties and thickness is critical.
