NEW PRODUCT ANNOUNCEMENT

From a U.S.-Friendly Manufacturer

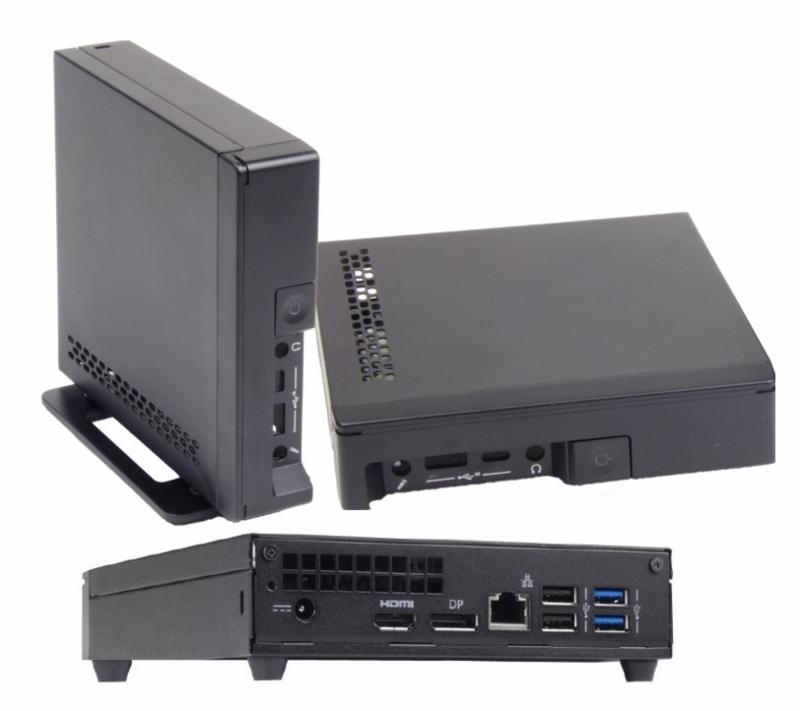

IMP-3654-B1-S520 is a new 6.5” x 5.78” x 1.4” industrial personal computer / IPC (can also serve as a media player) by Impact, based on German made Kontron mini-STX computer motherboard . Mean Time Between Failures of 28.3 years at its highest rated temperature is impressive enough. Recently, Fujitsu-Germany lab confirmed its operation is possible at -40C from entirely cold start, see info below.

Features and Options

MASS PRODUCTION LONGEVITY Extended LifeCycle CPU OPTIONS Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh” with built-in graphics Core™ i3 Core™ i5 Core™ i7 Core™ i9 POWER CONSUMPTION CPU up to 65W TDP, fan adds PWM @ 5V, max. 3W

FEATURES Up to 32GB DDR4 RAM, up to 2TB M.2-based SSD or 2.5” SSD, optional WiFi/Bluetooth

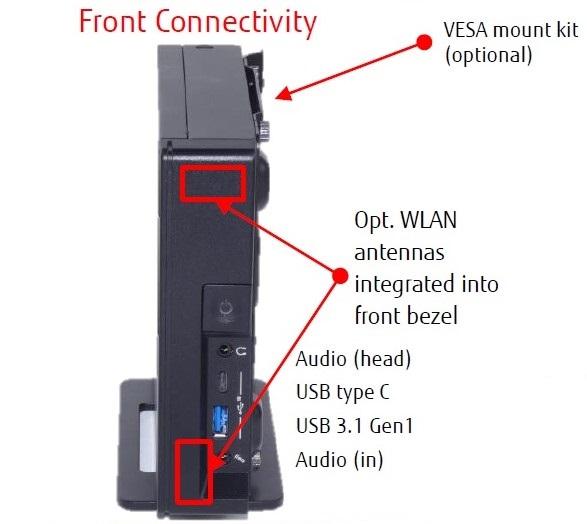

1 Display Port, 1 HDMI port, 6 USBs, 1 LAN, TPM security module,

TEMPERATURE RANGE Operating: -40°C to +40°C Storage: -40C to +70C Note about high temperature: The limit on the upper side +40°C of this IPC is because the computer chassis traps some heat, too. As long as you are capable to maintain chassis ambient temperature not to exceed +40C, then this complete IPC solution is for you. If not, then you can simply use our computer without chassis , that way it is rated for operation up to +50C, simply attach the motherboard to your bracket via our board’s mounting holes. Note about low temperature: Although its data sheet of complete system in chassis shows conservative 0 to +40C operating temperature, Fujitsu-Germany lab recently conducted special tests and generated new data now confirming operation at -40C from cold start! (C ontact Impact for password for the document.) And once started at -40C, this computer board should generate enough internal warmth for continuous operation at that temperature.

RELIABILITY AND CERTIFICATIONS System certs FCC Class B, CE Class B, EN 61000-6-2 (Industrial Immunity) Motherboards certs also available MTBF: 248,623 hours at 40C = 28.3 years with 24/7 use, more info Please specify O/S (operating system, if any) and amount of RAM & storage you need when inquiring about this new product - supported in mass production for min 5 years or longer without any changes to the motherboard design . Impact has partnered with Kontron in the U.S. as their tech support and selling channel. Kontron’s German-made (U.S. friendly) computer motherboards are both high quality and very inexpensive because of their nearly 100% robotic assembly. K ontron S&T Group is “Premier Member” of Intel's IoT Alliance, the highest level member of Intel partners, which enables Impact to provide the highest level of support to our customers. Check out Fanless version of this PC in our Previous Product Announcement
