New D3713 Series Industrial Mini-ITX
Made in Germany
Greetings from San Diego!

Avoid delays associated with a virus outbreak from Asia by switching to German-made computer products! In fact, Europe's leading SBC and motherboard manufacturer, Kontron, has already put enough of all components in their warehouse to last until the Fall of 2020 (at minimum) according to their current projected sales forecasts. They are prepared to build your needed inventory immediately. With mainly robotic assembly in Bavaria for all motherboards like this new AMD Ryzen board, the production lead times through Impact in San Diego are ensured to stay short and unaffected by the world-wide turmoil in supply chain.

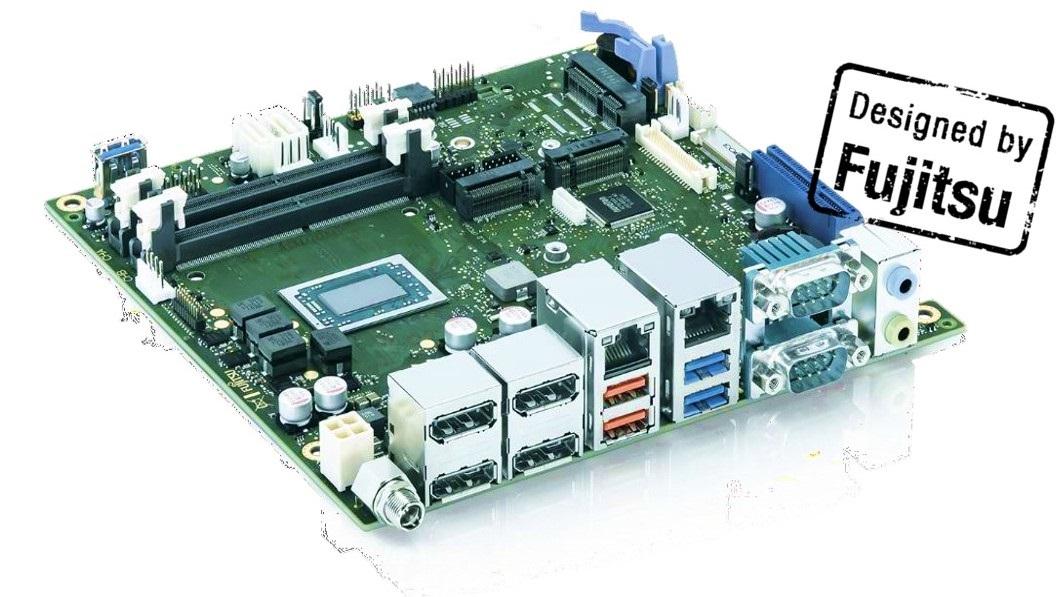

Designed for fanless operation, the new embedded low-power industrial D3713-V/-R mini-ITX motherboard has an optional system chassis, and features the AMD Ryzen™ Embedded V1000 and R1000 series processors. The SoC-integrated AMD Radeon™ Vega GPU shines in graphics-heavy applications, and supports up to four independent displays in 4K resolution via display ports, embedded display port, and dual-channel LVDS (24bit). This powerhouse system works in any environment by offering 5 different configurations with different AMD processors available, see list below or contact us for help in selecting the correct set up to begin your system design.
D3713 Features
-up to 32GB RAM
-2x Serial ATA III 600
-Mini-PCI Express®
-M.2 Keys B & M
-2 LANs
-7 USBs (w.internal)
-1x RS232/422/485
-3x RS232 (2x by header)
-8 Bit GPIO
-HD Audio
Environmental Specifications
(motherboard)
Operating temp -10C to +70C
Storage temp -25C to +70C

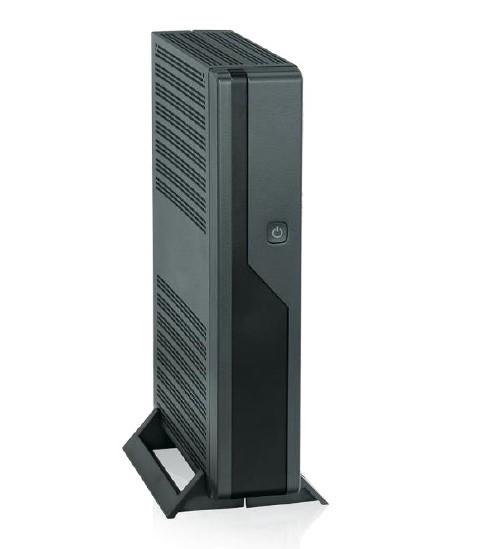

Complete System in Chassis
•250 x 191 x 52 mm
•Built-in cooling solution
(Active or Passive)
•Optional Risercard (PCIe x4)
•Optional Wall Mount Kit
•Optional 84W AC-Adapter
•Optional WiFi/Bluetooth (via mPCIe-to-m.2 WLAN Adapter)
Flexible DC-in (any 8V to 36V)

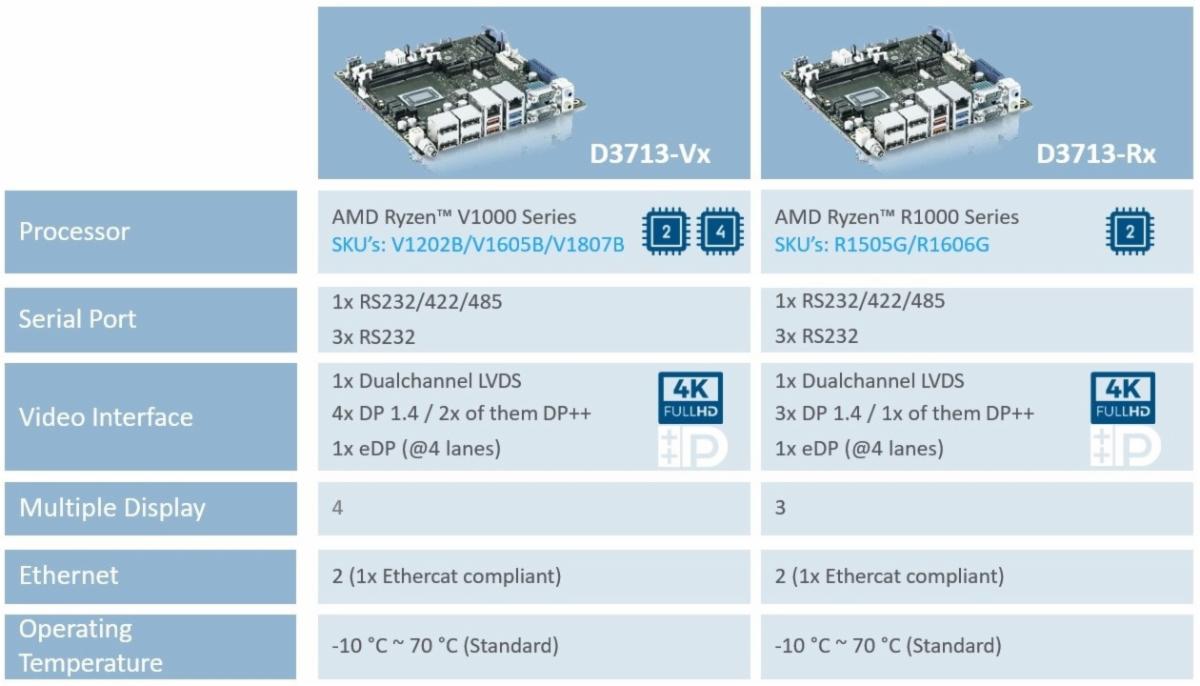

Choose From These Motherboard Models

D3713-V2 with V1605B (Quad-Core 2.0/3.6 GHz)
D3713-V4 with V1807B (Quad-Core 3.35/3.8 GHz)
D3713-R2 with R1305G (Dual-Core 1.5/2.8 GHz)
D3713-R4 with R1606G (Dual-Core 2.6/3.5 GHz)
