Embedded Coin Technology

Embedded coin technology is quickly becoming a preferred alternative to internal heatsinks to draw heat directly down and away from the heat generating device to the backside of the PCB. There are three basic types (shapes) of embedded coins in common use today; U-Coin, T-Coin and I-Coin. When designing, it is always preferred that the top and bottom of the coin be in a positive or near neutral position relative to the top and bottom of the PCB. On the bottom, this ensures that intimate contact can be made with any external heat sinking or thermal dissipation device.

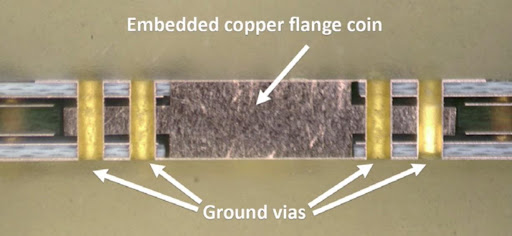

Most practical applications where coins are employed use a coin which is bonded into the structure during the multilayer lamination process. In this case, the coin is bonded into place and sealed by the flow of the prepreg resin which is adjacent to the coin at the time of lamination. The result is a securely mounted, but electrically isolated coin. Ground connections can be accomplished with vias through a flange in the coin or the cap plating on the top and bottom of the coin.

When designing, it is always preferred that the top and bottom of the coin be in a positive or near neutral position relative to the top and bottom of the PCB.
