All-New GEHL Mid-Range V Series Skid Loaders and VT Series Track Loaders to North America!

Introducing the All-NEW Mid-Range GEHL V210, V230 and V275 Skid Loaders and the VT210, VT230 and VT275 Track Loaders

to the North American Market!

Dear Manitou,

We are pleased to announce the launch of three all new “V Series” compact skid loaders and three “VT Series” compact track loaders to our Dealer Network: the V210, V230, V275, VT210, VT230, and the VT275. These new models have rated operating capacities from 2,100 lbs. to 2,750 lbs. with vertical lift arms, operating weights from 7,480 lbs. to just over 10,000 lbs. and many new patented features.

We have focused our improvements in five main areas: safety, comfort, productivity, simplification, and serviceability. The driver’s station has also been redesigned with an improved version of our patented folding door and more accessories including a new digital display. The new cab also offers some of the best visibility on the market thanks to a new window and roof design.

The operators cab now tilts all the way forward by loosening two bolts, for easy access to components under the carriage. Plus grease points are now easily accessible on the lift arm for proper daily maintenance.

These new Skid and Track Loaders are available to order with start of production beginning in October 2023. See below for Marketing and Support Materials.

Contact your Regional Sales Manager or Sales Support Admin for more details!

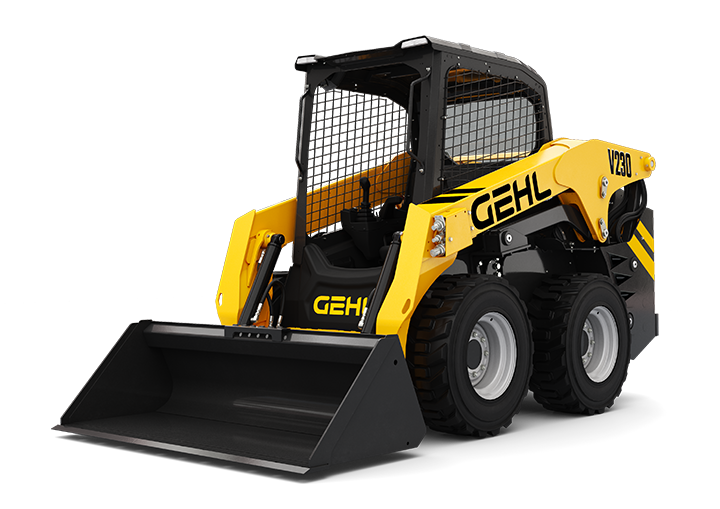

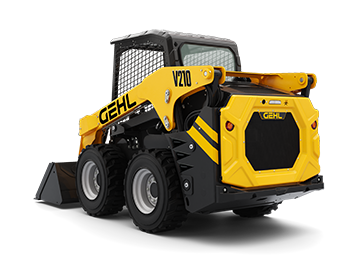

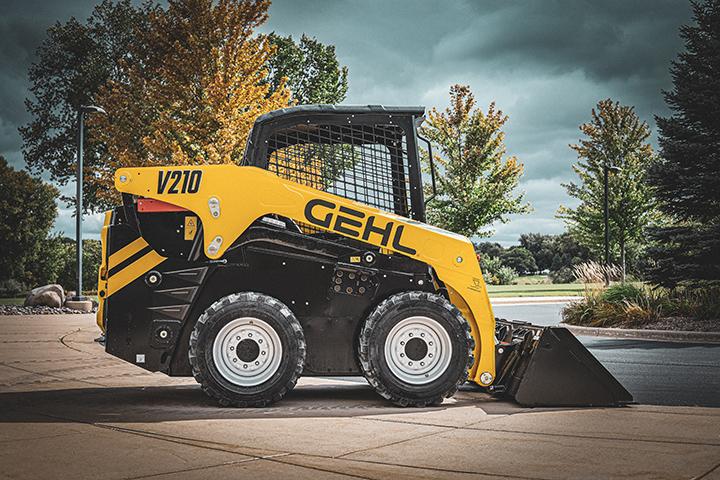

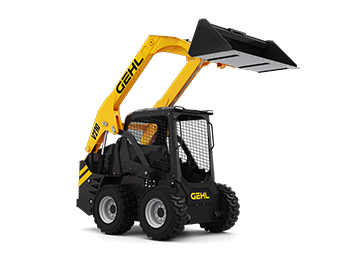

Skid Loaders	V210	V230	V275
Operating Weight	7,480 Ibs.	7,710 Ibs.	8,320 Ibs.
Rate Operating Capacity	2,100 lbs.	2,300 lbs.	2,750 lbs.
Rated Capacity with optional counterweight	2,250 Ibs.	2,450 Ibs.	2,925 Ibs.
Height to Hinge Pin	120.5"	121.5"	129"
Travel Speed	7.5/11.6 mph	7.9/12.6 mph	7.1/10.9 mph
Engine HP	69.3 hp	72 hp	72 hp

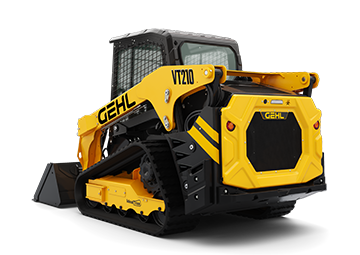

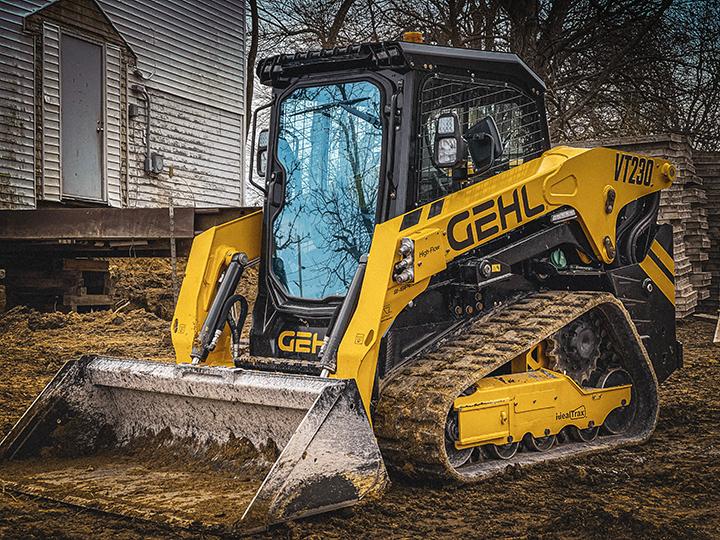

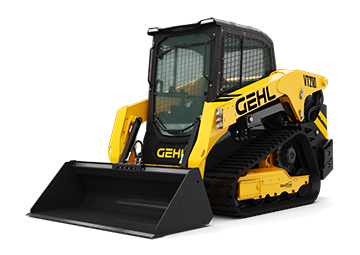

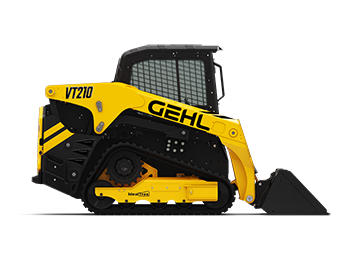

Track Loaders	VT210	VT230	VT275
Operating Weight	8,865 Ibs.	9,250 Ibs.	10,051 Ibs.
Capacity at 35% Tipping Load	2,100 lbs.	2,300 lbs.	2,750 lbs.
Capacity at 50% Tipping Load	3,150 Ibs.	3,436 Ibs.	4,100 Ibs.
Height to Hinge Pin	121"	121"	129.5"
2 Travel Speed Options	6.4/9.5 mph	6.4/9.5 mph	5.5/8.4 mph
Engine HP	69.3 hp	72 hp	72 hp

Product Innovations

IdealTrax is standard on all VT Series models

For added comfort, the track loader range is equipped as standard with the patented “IdealTrax” system, ensuring automatic track tensioning and extending the life of the tracks. Numerous options (additional LEDs on the sides, high flow hydraulics, rear camera, etc.) are also available to meet the requirements of each user. It is worth noting that the total cost of ownership (TCO) of these models has been reduced, with the VT210 model, for example, boasting a TCO of only $20 per hour, representing an average reduction of 7.2% over the previous model range.

GEHL V Series / VT Series New Features:

Rated Operating Capacities from 2,100 to 2,750 lbs.
Height to Hinge Pin up to 129.5"
New in-cab Design, 23% larger and more operator accessories
New 7" Digital Display
Patented IdealTrax standard on VT track loaders
Improved Optional IdealAccess Fold-up Door for Skids and Tracks
New Vertical Lift Arm redesigned for more visibility, with angled arms to remove soot and debris
New sloped roof for more visibility to the load and easier for rain to run off
Redesigned and configured Engine Compartment
New placement for Radiator with auto-reversing fan
Operators cab tilts forward for full access under the carriage
High Flow and Standard Flow are now on the same side
Grease Points are now easier to Access
Increased Fuel Capacities
Pilot joysticks that moves with the seat for optimized comfort during operation
New Boom Suspension
Many Attachments available with the patented attachment locking system
