Introducing the All-NEW Manitou Mid-Range V Series Skid Loaders and VT Series Track Loaders to the North American Market! | |
|
Dear Manitou,
Manitou is pleased to announce the launch of three all new “V Series” compact skid steer loaders and three “VT Series” compact track loaders to the North American Market: 2100V, 2300V, 2750V, 2100VT, 2300VT and the 2750VT. These six new models have rated operating capacities from 2,100 lbs. to 2,750 lbs.
We've focused on enhancing five main areas: safety, comfort, productivity, simplification, and serviceability. All models are vertical lift and feature a new lift arm design. The driver’s station has also been redesigned with an improved version of our patented folding door. The new cab also offers some of the best visibility on the market thanks to a new window and roof design."
These new Skid and Track Loaders are available for orders with start of production in October 2023. See below for Marketing and Support Materials. Contact your Regional Sales Manager or Sales Support Admin for more details!
| |

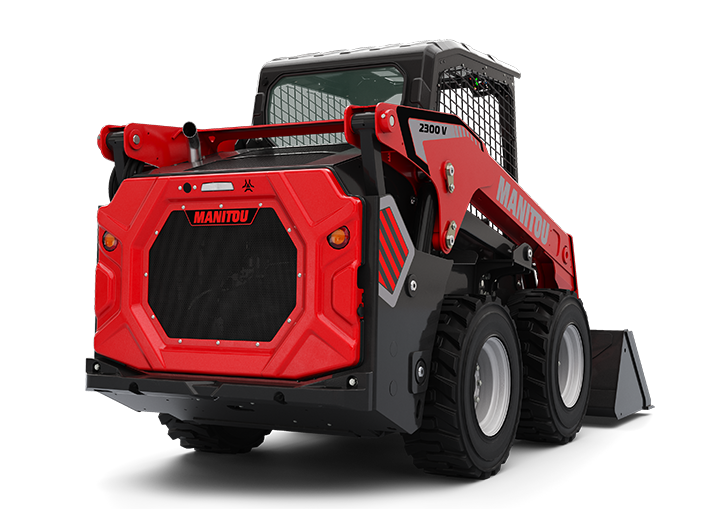

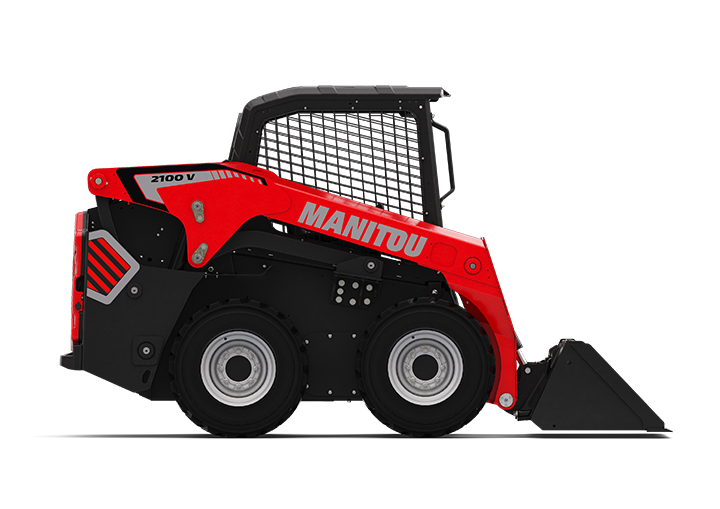

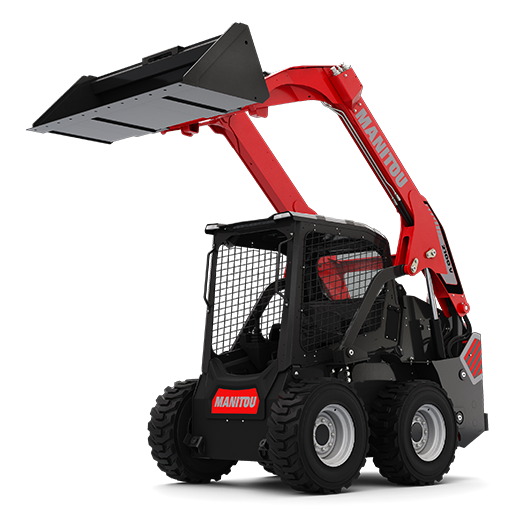

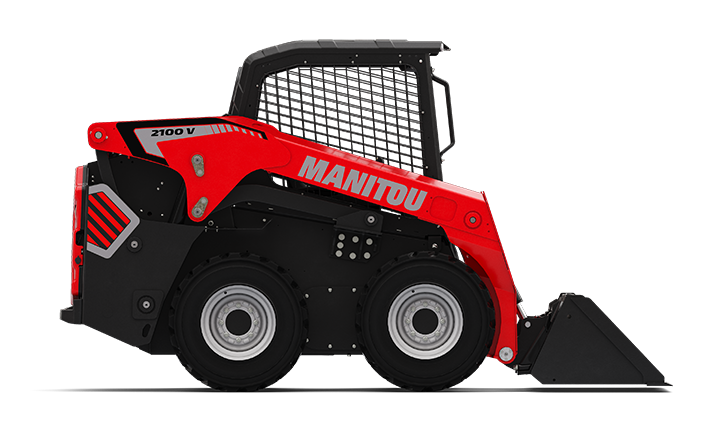

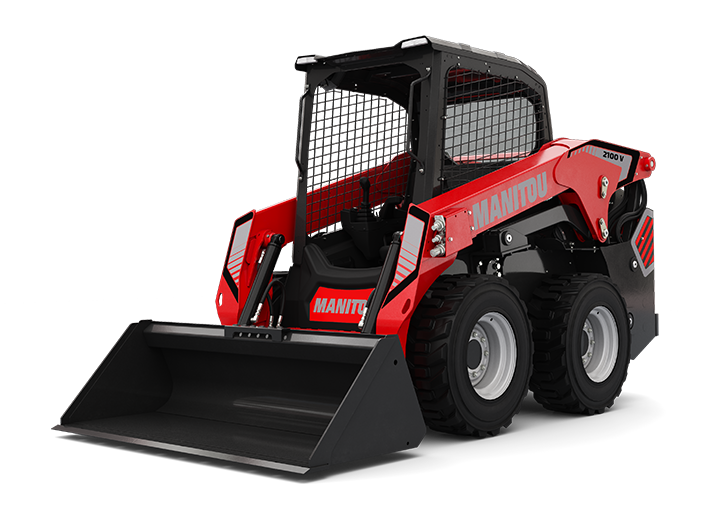

| Skid Steer Loaders | 2100 V | 2300 V | 2750 V | | Operating Weight | 7,480 Ibs. | 7,710 Ibs. | 8,320 Ibs. | | Rated Operating Capacity | 2,100 lbs. | 2,300 lbs. | 2,750 lbs. | | Rated Operating Capacity with Counterweight |
2,250 Ibs. |
2,450 Ibs. |
2,925 Ibs. | | Height to Hinge Pin | 120.5" | 121.5" | 129" | | Travel Speeds | 7.5/11.6 mph | 7.9/12.6 mph | 7.1/10.9 mph | | Engine HP | 69.3 hp | 72 hp | 72 hp | | |

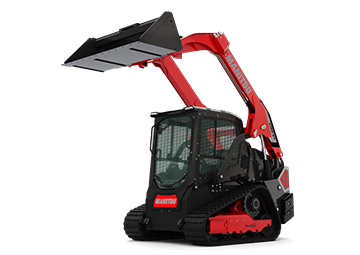

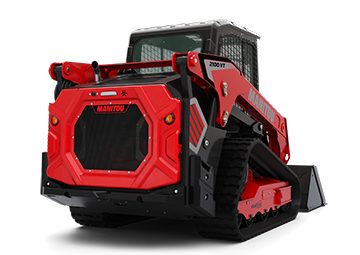

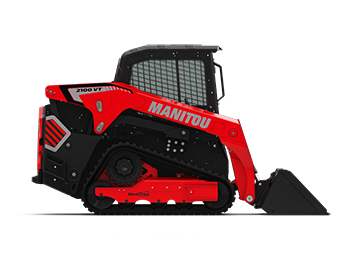

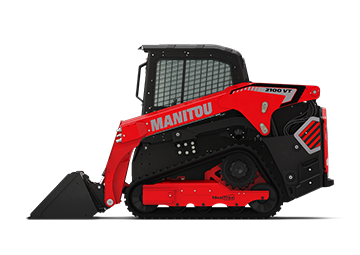

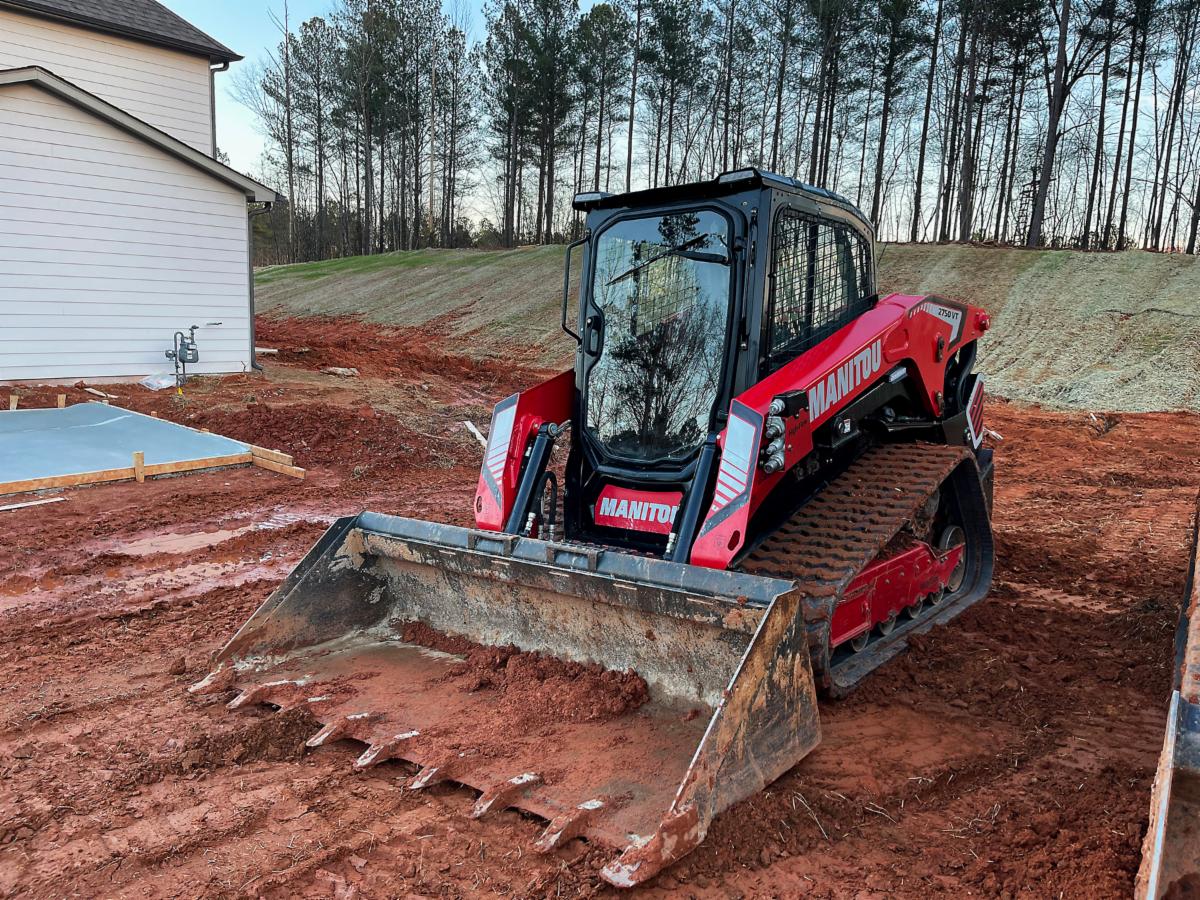

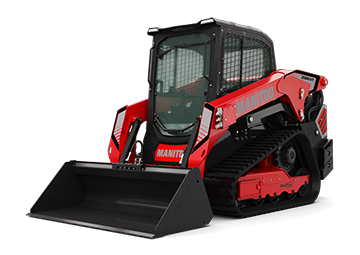

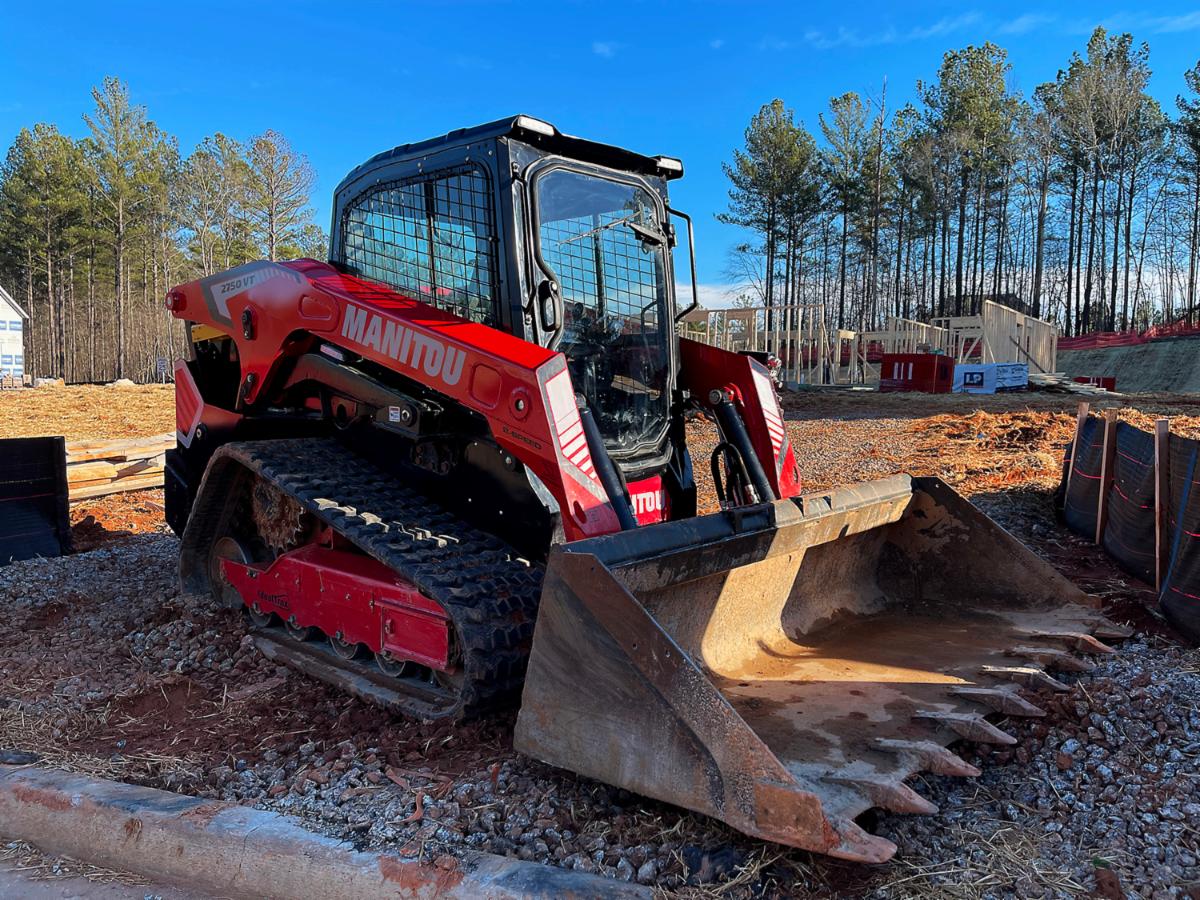

| Track Loaders | 2100 VT | 2300 VT | 2750 VT | | Operating Weight | 8,865 Ibs | 9,250 Ibs | 10,051 Ibs | | Operating Capacity at 35% Tipping Load | 2,100 Ibs. | 2,300 lbs. | 2,750 lbs. | | Operating Capacity at 50% Tipping Load | 3,150 Ibs | 3,436 Ibs | 4,100 Ibs | | Height to Hinge Pin | 121" | 121" | 129.5" | | 2 Travel Speed Options | 6.4/9.5 mph | 6.4/9.5 mph | 5.5/8.4 mph | | Engine HP | 69.3 hp | 72 hp | 72 hp | | | |
|
IdealTrax is standard on all VT Series machines
For added comfort, the track loader range is equipped as standard with the patented “IdealTrax” system, ensuring automatic track tensioning and extending the life of the tracks. Numerous options (additional LEDs on the sides, high flow hydraulics, rear camera, etc.) are also available to meet the requirements of each user. It is worth noting that the total cost of ownership (TCO) of these models has been reduced, with the 2100VT model, for example, boasting a TCO of only $20 per hour, representing an average reduction of 7.2% over the previous model range.
| | |
|
Manitou V Series / VT Series New Features:
- Rated Operating Capacities from 2,100 to 2,750 lbs.
- Height to Hinge Pin up to 129.5"

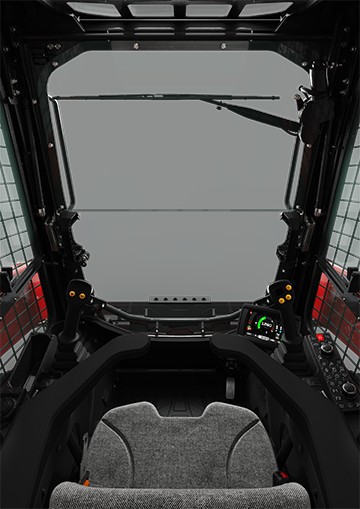

- New in-cab Design, 23% larger and more operator accessories
- New 7" Digital Display
- Patented IdealTrax standard on VT track loaders
- Improved Optional IdealAccess Fold-up Door for Skids and Tracks

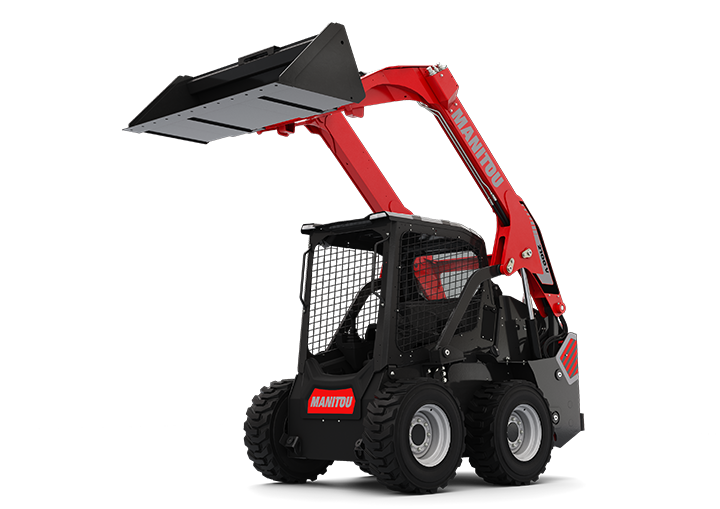

- New Vertical Lift Arm redesigned for more visibility, with angled arms to remove soot and debris
- New sloped roof for more visibility to the load, and easier for rain to run-off
- Redesigned and configured Engine Compartment
- New placement for Radiator with auto-reversing fan
- Operators cab tilts forward for full access under the carriage
- High Flow and Standard Flow are now on the same side
- Grease Points are now easier to Access
- New Boom Suspension
- Increased Fuel Capacities
- Pilot joysticks that moves with the seat for optimized comfort during operation
- Many Attachments available with the patented attachment locking system
| |
