Improve your production and quality
in your cutting room with these innovative models!
| |
|

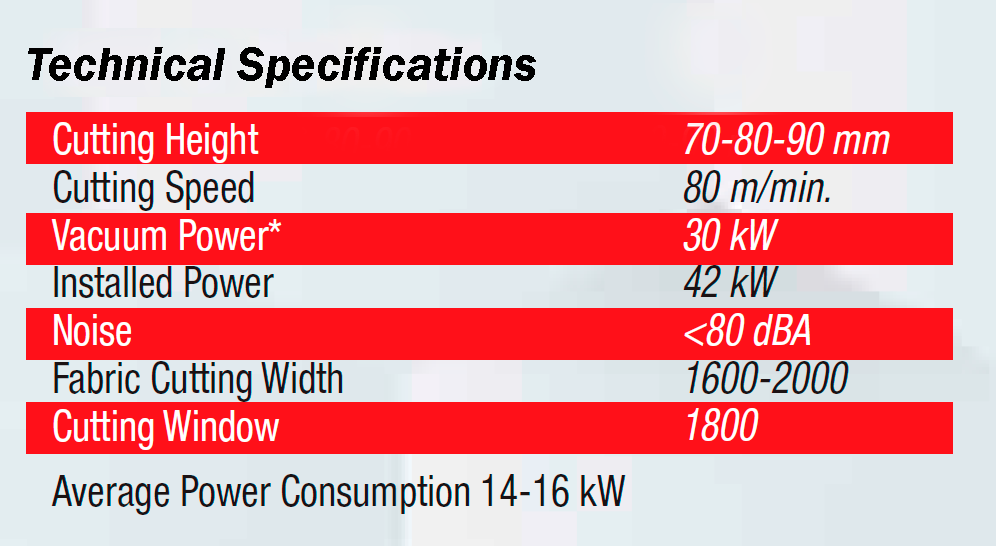

DCC90-80-70
Conveyorized Automatic Fabric Cutting
Machine with Continuous Cutting System
| |
- Application Range: Industries that handle textiles (e.g. Garments; Upholstery, Denim)
- Touch Smart All-In-One desktop
- Compatible with all CAD Systems
- Files can be controlled on display before cutting
- Possible cutting sequence change for optimization
- Selecting the pieces which are not to be cut before starting and bypass them during cutting.
- Possibility to manage, convert and transform all kind of notches (normal, V notch and fly notch).
- When the pieces do not fit the width of spread fabrics, operator may change the scale of the pieces.
- Easily stores cutting setup files for quick retrieval to accelerate future cut jobs.
| |
- If preferred the knife does not pass through the cut adjacent lines twice (no overcut).
- Blade monitoring system observes the abrasion of the blade and stops the machine automatically when It needs to be replaced.
- Ability to change the Radius of patterns at corners
- Able to increase efficiency by adjusting speed ramps up/down according to fabric type
-
Different Cutting Options (Crosswise, One Way Cutting, Mixed Cutting, Symmetry Cutting, Tubular Cutting, Clockwise/Anticlockwise Cutting)
- Intelligent Reporting System.
- Zero Buffer
- Automatic Knife Oil Lubrication
- Automatic Knife Re-Sharpening.
| |
|

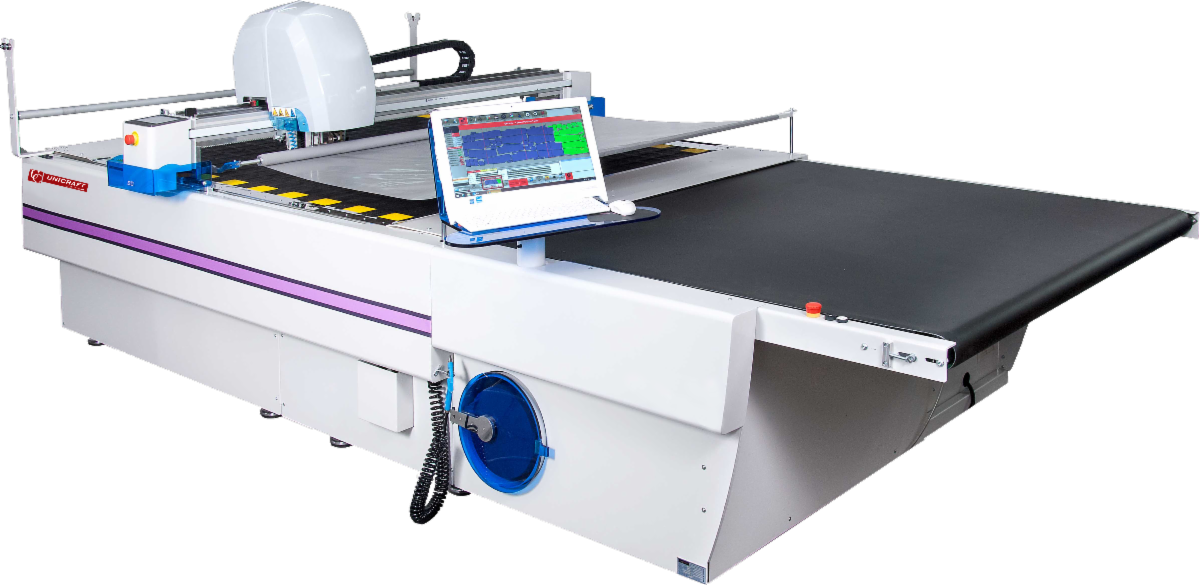

DC90-80-70
Conveyorized Automatic Fabric Cutting
Machine
| |
- Application Range: Industries that handle textiles (e.g. Garments; Upholstery, Denim)
- Capable of cutting up to 90, 80 or 70 mm of compressed fabric.
- Touch Smart All-In-One desktop
- Compatible with all CAD Systems
- Files can be controlled on display before cutting
- Possible cutting sequence change for optimization
- Selecting the pieces which are not to be cut before starting and bypass them during cutting.
- Possibility to manage, convert and transform all kind of notches (normal, V notch and fly notch).
- When the pieces do not fit the width of spread fabrics, operator may change the scale of the pieces.
- Easily stores cutting setup files for quick retrieval to accelerate future cut jobs.
| |
- If preferred the knife does not pass through the cut adjacent lines twice (no overcut).
- Blade monitoring system observes the abrasion of the blade and stops the machine automatically when It needs to be replaced.
- Ability to change the Radius of patterns at corners
- Able to increase efficiency by adjusting speed ramps up/down according to fabric type
-
Different Cutting Options (Crosswise, One Way Cutting, Mixed Cutting, Symmetry Cutting, Tubular Cutting, Clockwise/Anticlockwise Cutting)
- Intelligent Reporting System. Delivering hard data for analyzing cutter activity and production. Graphical report is also included.
- Zero Buffer
- Automatic Knife Oil Lubrication
- Automatic Knife Re-Sharpening.
| |
|

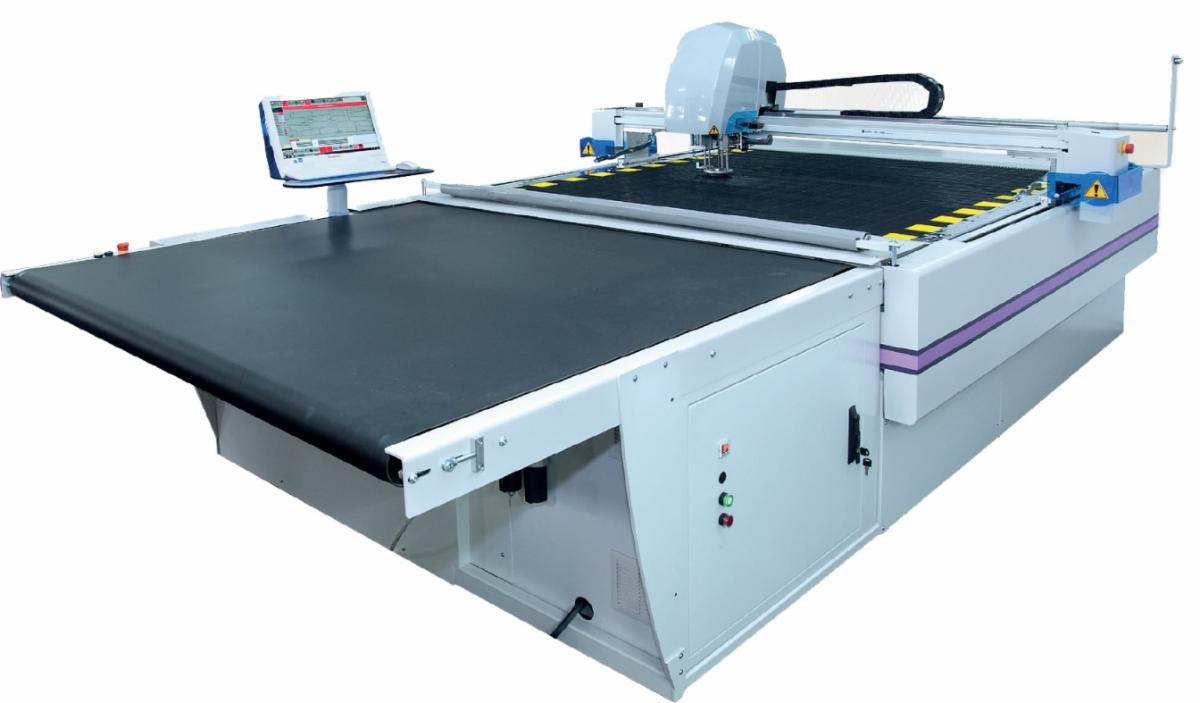

MC80-50-30
MASTER CUT Conveyorized Automatic Fabric Cutting
Machine
| |
- Application Range: Industries that handle textiles (e.g. Garments; Upholstery)
- Touch Smart All-In-One Desktop
- Compatible with all CAD systems
- Windows operating system
- Monitoring of all parameters on display.
- Files can be controlled on display before cutting
- Possible cutting sequence change for optimization
- Selecting the pieces which are not to be cut before starting and bypass them during cutting
- Detecting the crosness of the spread fabric by laser and cutting it with the same cross angle
- Possibility to manage, convert and transform all kind of notches (normal, V notch and fly notch).
- When the pieces do not fit the width of spread fabrics, operator may change the scale of the pieces
- Operator may adjust the bite length
- Easily stores cutting setup files for quick retrieval to accelerate future cut jobs.
| |
- If preferred the knife does not pass through the cut adjacent lines twice (no overcut)
- Blade monitoring system observes the abrasion of the blade and stops the machine automatically
- Ability to change the Radius of patterns at corners.
- Resume cutting by Hibernation if ıt is being disturbed.
- Able to increase efficiency by adjusting speed ramps up/down according to fabric type.
- Different Cutting Options (Crosswise, One Way Cutting, Clockwise and Anticlockwise).
| |
|

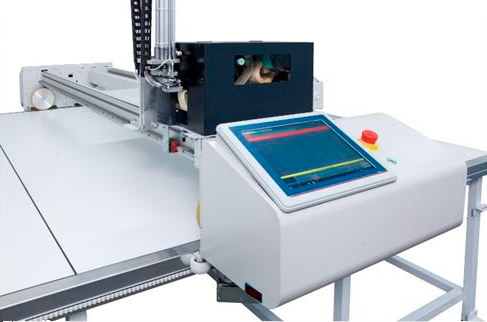

MB1
MASTER LABELER
Fully Automatic Labeling Machine
| |
- The Labeller prints out and places a sticky label on each pattern of the marker on the upper ply of the lay directly on the fabric.
- The label contains the required information to make each piece easily identified after cutting for proper bundling.
- It is no longer needed to print out the marker with plotters, to place it on top of the fabric and cut it with CNC Cutters.
- Master Label runs on the top of the spreading table on special metal side rails in order to work fully independently on the lay after spreading and before cutting, without affecting the total work process time.
- The labels are placed directly on the fabric and not on the plastic seal.
- They will not be able to move after cutting due to thermoheat printed sticky labels, even the smallest ones and will be perfectly recognizable.
- It is interfaced with CAD system to collect all required marker data.
- Approximately 100 labels are placed in 10 minutes in Underwear, 12 minutes in kidwear, 14 Minutes Adult Garments and 18 minutes in Upholstery.
- Laser point is available to set up the starting point.
- The machine is equipped with encoder along with Servo Motor to guarantee highest possible precision and accuracy.
- The Labeling machine reduces the consumption of paper and ink and improves your return on investment.
| | | | |
