Avoid Common Mistakes. See How These 2 Differ.

Ball screw actuators can move a load block up to a meter and a half/sec.

Ball screw actuators can travel distances of a meter and a half or less.

Because ball screw actuated guides combine the bearing block and the ball screw into a single unit, they are particularly useful in tight applications where a slide guide and an actuating system might not fit.

Ball screw actuators combine a block with a control method that can be directly connected to a motor. What’s more, ball screw actuators generally require fewer and smaller supporting devices than hydraulic or pneumatic-powered slide guides.

PRESS HERE TO READ MORE

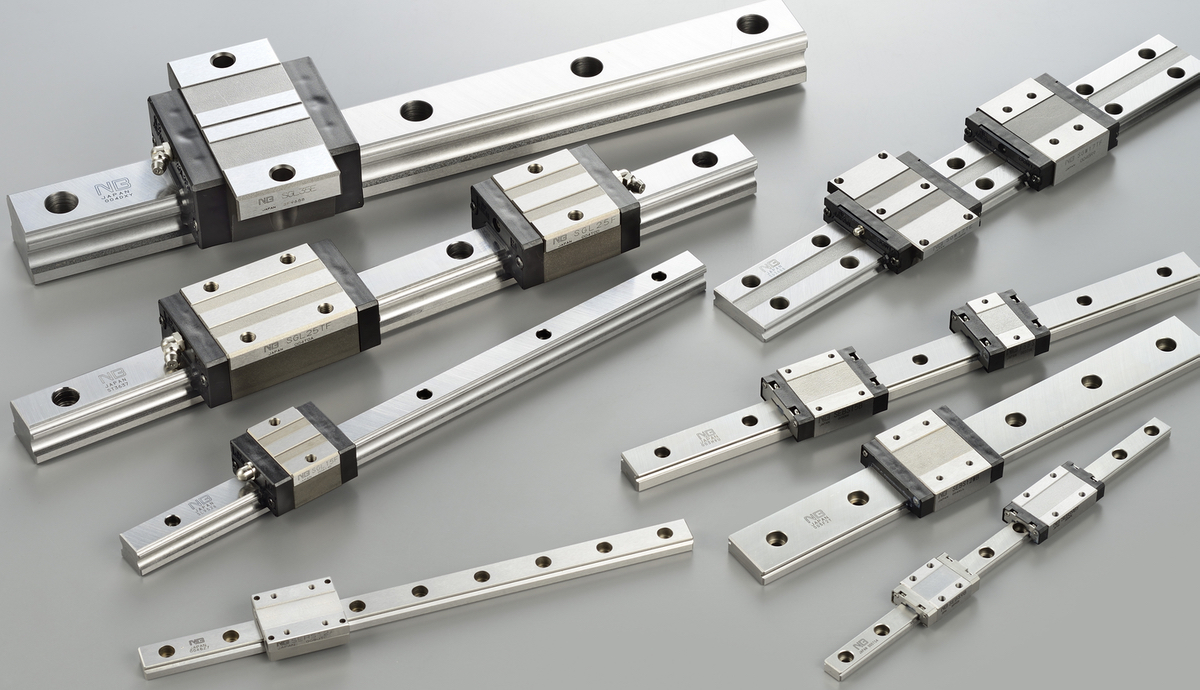

Slide guides can move a load block at up to a meter/sec.

Slide Guides can travel distances over a rail of more than a meter and a half.

A major difference between ball screw actuators and slide guides is that a slide guide can move freely over longer distances.

Slide guide ball bearings travel through raceways with a circular arch (left), giving the bearing two points of contact with the raceway. Ball screws can use raceways with Gothic arches which give the bearings four points of contact with the raceway. This enables the bearings to carry heavier loads than bearings with just two points of contact.



PRESS HERE TO READ MORE

3D / 2D CAD Data PARTcommunity

3D / 2D CAD data [PARTcommunity] is available for selected products.

[PARTcommunity] has functions to view 3D / 2D drawings by specifying values and to insert the drawing into the CAD screen.



To access 3D / 2D CAD File Viewer installation, PRESS HERE

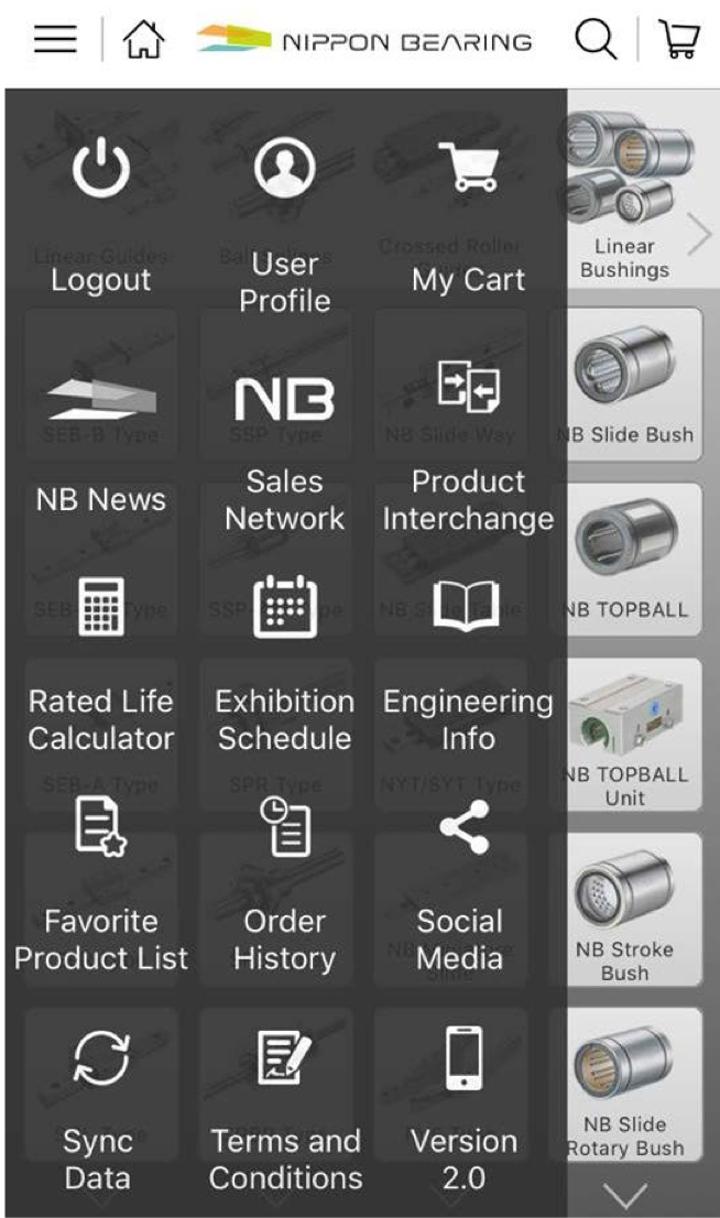

Introducing NB Linear Mobile™

We're proud to announce the launch of

the free NB Linear Mobile™.

Press to access download info

The App That Puts NB In The Palm of Your Hand

• Includes our entire product line.
• Contains detailed write-ups and videos.
• Use Apple Pay® or Android Pay™ to shop directly.
• The search function lets you find what you’re looking for quickly.
• Download CAD files and datasheets
• From the app, connect to the free eCAT Viewer app from CADENAS to download and view 2D and 3D CAD files.
• Great tools to perform on-the-go calculations.
• The product interchange feature shows options for swapping other's products for ours.
• And much more.

Customer Quote of the Month

“We were able to make the product more cost competitive. Our product lowered the client’s cost by 17%.”

Flange Rotary Bush

Speeds Assembly

(SREK Series)

NB’s SREK Slide Rotary Flange Bush series offers the best of both worlds - the benefits of a slide rotary bush with the mounting ease of a flange. When your application calls for ease of assembly, you can select a completely integrated system.

No matter the installation direction of this compact unit, because the ball elements of the NB SREK Slide Rotary Bush series are positioned in a cylindrical formation inside the retainer, it smoothly facilitates both rotary and linear motion. Though compact, the relatively large steel balls support higher loading.

Size ranges are from 6mm to 30 mm. Detailed drawings and tables provide dimensional and mechanical information. Now also available in 3-D CAD.

To Join the 3D/2D CAD Data PARTcommunity - PRESS HERE



NB can fulfill your orders faster because we only use air transport – not ships.
