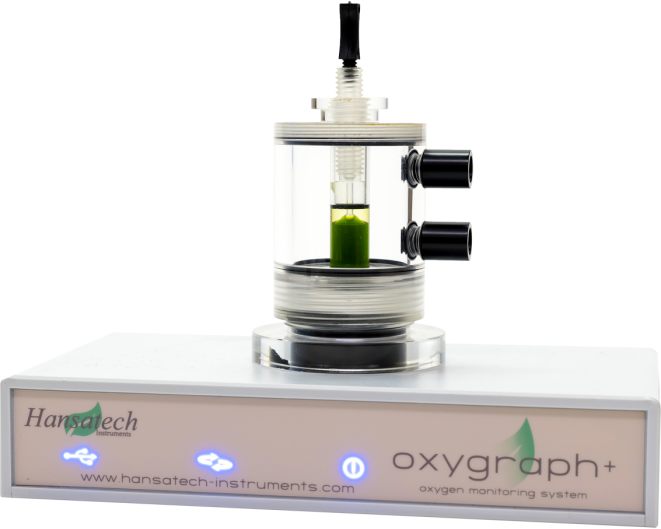

The Oxygraph+ : The liquid-phase oxygen electrode system for photosynthesis & respiration studies

Suitable for liquid-phase samples with 0 – 100% oxygen concentration!

The Oxygraph+ oxygen electrode system provides PC control of oxygen uptake or evolution measurements across a broad range of applications - from studies of mitochondria and cellular respiration to measurements of isolated chloroplast suspensions in photosynthesis research applications with up to 100% oxygen concentration.

The individual components of the Oxygraph+ System include:

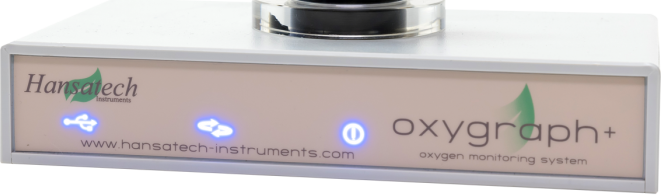

Oxygraph+ Control Unit The next generation Oxygraph+ oxygen electrode control unit offers unrivalled price vs. performance combining simplicity of operation with an enviable feature set. This outstanding flexibility ensures Oxygraph+ is equally useful in both a teaching and research capacity.  24 bit resolution allows detection of minute changes in oxygen tension without needing to apply instrument gain. This results in beautiful, noise-free traces even when zoomed close in on areas of interest.

Oxygraph+ allows real-time graphing of signals from auxiliary inputs and ion-selective electrodes. This allows comprehensive analysis of oxygen activity simultaneously with signals such as pH, TPP+, calcium, potassium and hydrogen ions. Up to 8 individual Oxygraph+ control units may be linked to a single PC and operated simultaneously from OxyTrace+ software providing a powerful, multi-channel system.

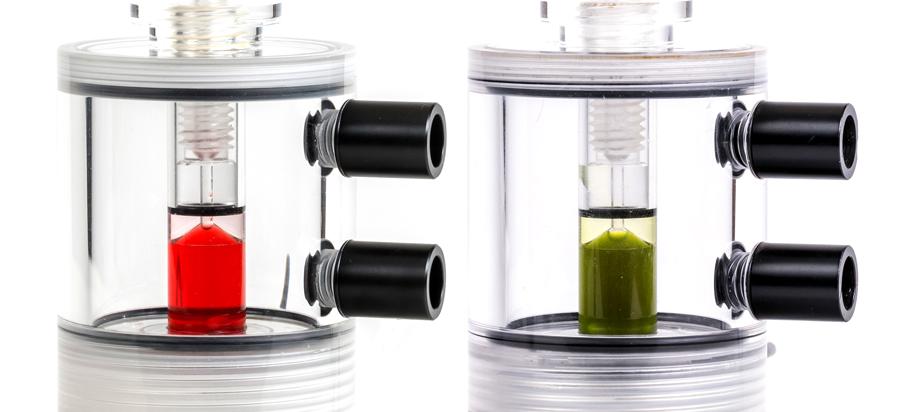

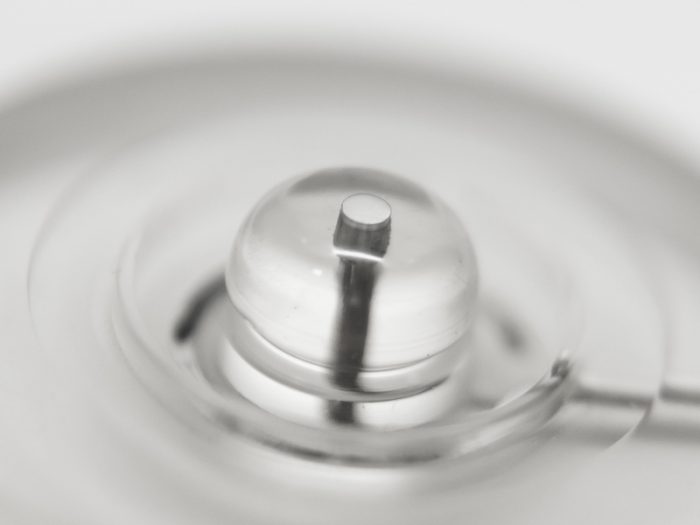

S1 Oxygen Electrode Disc When connected to the electrode control unit, the S1 provides a fast, effective and accurate method of detecting small changes in O 2 concentration. DW1/AD Electrode Chamber The DW1/AD provides a highly versatile solution to measurements of dissolved oxygen in liquid-phase samples of between 0.2ml – 2.5ml with its clear cast acrylic construction providing excellent sample visibility & uniform illumination.

Contact us to learn more about the Oxygraph+: The liquid-phase oxygen electrode system for photosynthesis & respiration studies

Request a Quote

Data Sheet
