DECEMBER 2022 EDITION

Hello!

Thanks for reading the November 2022 edition of Omron Electronic Component's product newsletter, Component Insider.

If you have any feedback on this new resource, please email us! Also make sure you checkout out Omron Components first in-person event of FY22 by registering Here!

Sincerely,

The Team @ Omron Electronic Components

Featured New Products

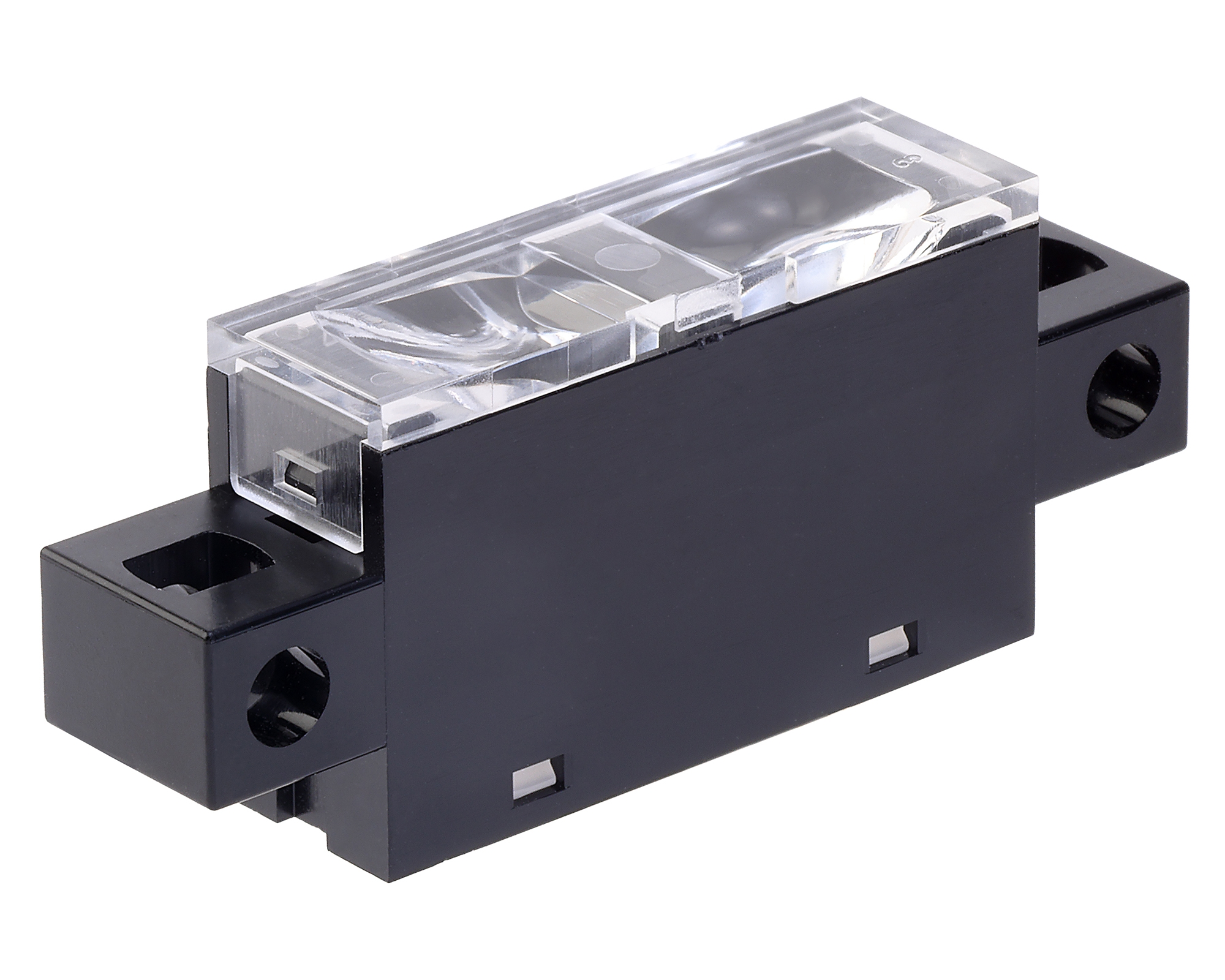

B5WC

Color Sensor is Ready to Build into Equipment

The B5WC color sensor offers reliable detection of changes and differences in color that can contribute to the automation of equipment. This color sensor emits light using a white LED as a light source and receives reflected light determined by the color of the detected object (the ratio of red, green, and blue is unique to each color). The color sensor separates the received reflected light into red, green, and blue, and makes an output of red, green, and blue data (RGB data) using the I2C communication method. For example, when detecting red and yellow objects, the reflected light from the white LED is red and yellow, so the red, green, and blue output values from the color sensor is different, so red and yellow can be distinguished.

Learn More

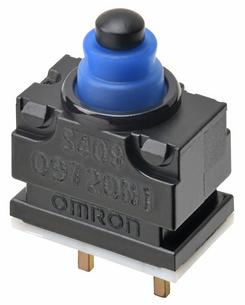

D2GW

Sealed Ultra
Subminiature Basic Switch

The new D2GW Sealed Ultra Subminiature Basic Switch is the industry’s smallest class size (8.3 x 6.5 x 5.3mm), which has a volume ratio that is 62% of the conventional types. Combined with its double-sided twin sliding contacts and wide variety of mounting structures and actuators, the D2GW is an ideal switch solution for EV charging stations, electronic locks, metering devices, security devices and more.

Learn More

G5PZ (E)

PCB Power Relay

Our G5PZ (E) is compact and slim in size W10.5mm x L24mm with high switching capacity of 20A at 250 VAC. This helps to contribute to downsizing of equipment. With it's low coil power consumption of 530mW in the 20A class of relays makes it great for saving energy. It can also contribute to a longer life of customer equipment as this relay is rated to 50k life cycles under full rated load.

Learn More

G9EC-X

PCB Power Relay

Omron's G9EC-X is a compact relay capable of switching 400-V, 200-A DC loads. The switching section and driving section are gas-injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saves space, and helps ensure safe applications. It is the same size as the standard G9EC (98 x 44 x 86.7mm (L XW X H)).

Learn More
