Here we have a machine that shows off
Multicyl's Pragmatic Design Philosophy
. Using standard Multicyl components along with Multicyl MLR technology and PIB press packages we designed a custom machine that brings several advantages to the sheet metal punching process that is critical to the customer's business.
The customer has a family of similar sheet metal parts that need each corner and one side punched; the parts have various sizes and the corners of the parts have different notch configurations. By removing this process from a traditional press the customer gained three main advantages:
- The need to punch the parts twice was eliminated.
- The need for different tooling set ups for each side of the part was eliminated.
- Set up time for different parts was greatly reduced.
All of this was accomplished with standard Multicyl components and some Pragmatic Design.
There will be more to come on our Pragmatic Design Philosophy in our next newsletter, for now
click here

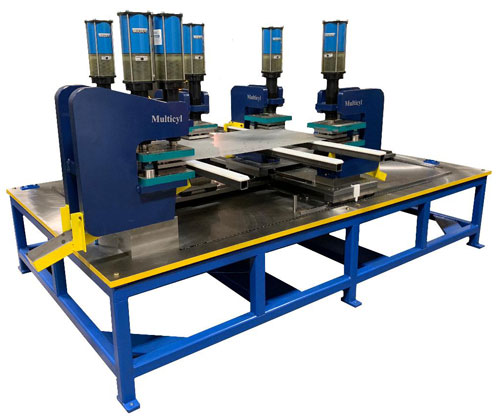

or on the picture above to see it in action with this custom machine.
