Will you be in Munich next week?  DON'T MISS us at Laser World of Photonics! See how our embedded motion modules help you make great products smaller ... AND shorten your development time as well.
Stand A2.420
Laser World of Photonics
June 26-29
Messe München

All-in-one linear microstages
Controller inside for smallest size , unmatched ease of integration
M3-LS Smart Stages enable smaller, battery-powered instruments with precision motion inside. For embedded microscopes, spectroscopy systems and more.
Greatest load capacity and travel
The NEW M3-LS-3.4-15 linear smart stage features 200 g load capacity and 15 mm travel.
Shown here in xyz configuration
with commercial microscope objective.

Smallest size

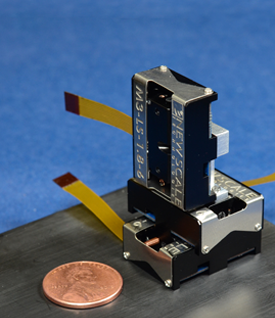

The M3-LS-1.8-6 linear smart stage, our smallest all-in-one microstage, has 20 g load capacity and 6 mm travel.
Shown in xyz configuration.

Focus modules
Controller inside for smallest size , unmatched ease of integration
Add high-resolution lens motion, with excellent dynamic stability, to the smallest embedded optical systems in handheld and portable instruments. Each module is a complete closed-loop motion solution - including embedded controller  - and requires no more space than a typical fixed lens mount.
Highest dynamic stability

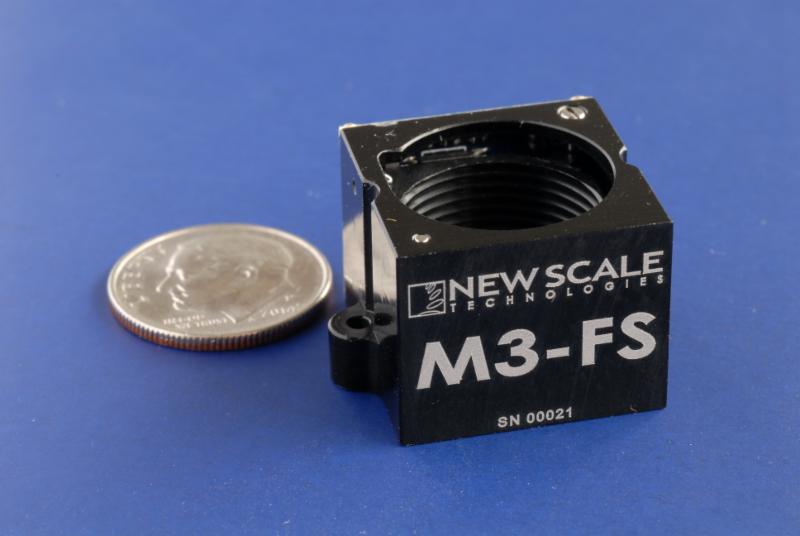

The M3-FS focus module has superior dynamic stability to minimze pixel shift with changing camera orientation. Fits lenses up to M16.

Economical precision

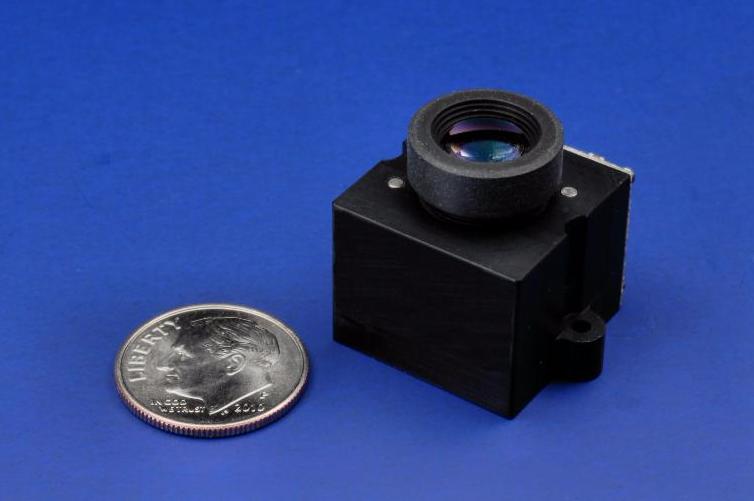

The original M3-F focus module remains an economical choice for fixed camera positions. Fits lenses up to M12.

Rotary smart stages and beam steering kits
Controller inside for smallest size , unmatched ease of integration
With M3-RS-U smart stages for beam steering and mirror positioning, you get a familiar galvo-scanner form factor with a drastically smaller size.
360 degree continuous rotation

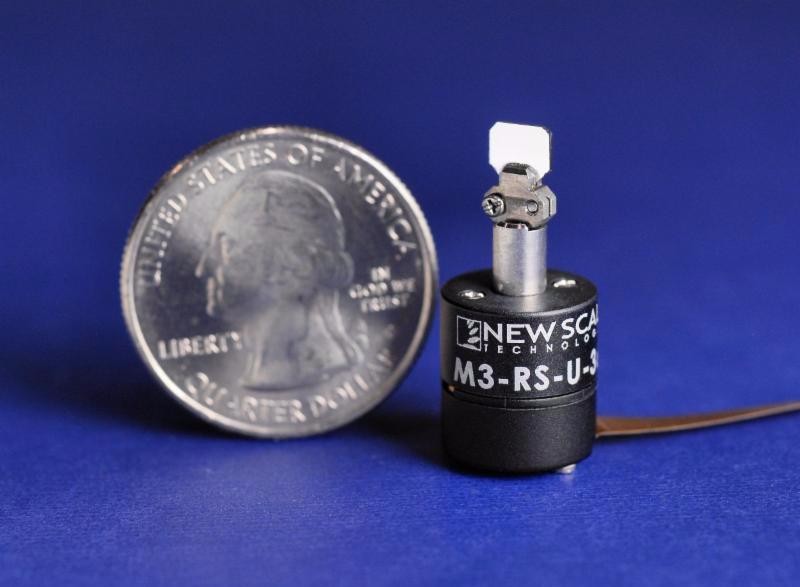

The M3-RS-U-360 Rotary Smart Stage is only 12 mm diameter with the controller inside.

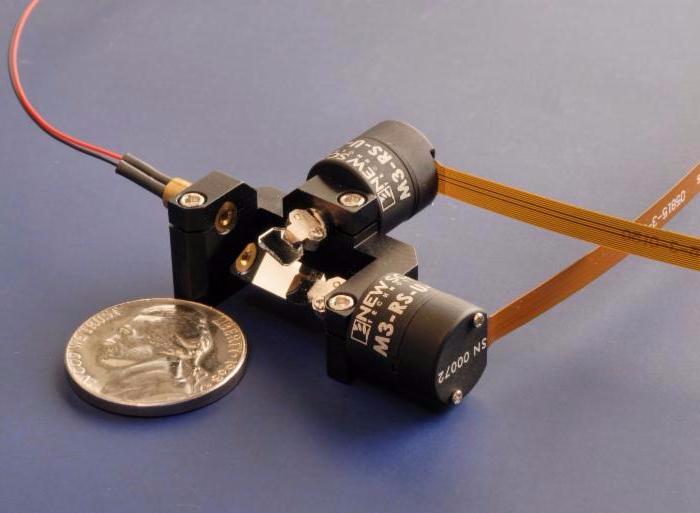

Beam steering kits
The M3-RS-U smart stage is available in one-axis and two-axis kits for beam steering.

Custom engineering
Creating next-generation products? We can help you build them smaller ... make them smarter... and do it faster!

A fixed-fee feasibility study  is the first step to faster, lower-risk product development. It is an affordable way to quickly test your idea and keep your product development on the right track. You quickly get the hard data you need to drive decisions.

Developing a multiprobe manipulator system
Embedded motion modules enable fast development of a precise, compact probe positioning system

A neuroscience researcher successfully used M3-LS Linear Smart Stage assemblies for positioning of probes during in-vivo recording. New Scale engineers then collaborated on an integrated multi-probe positioning assembly to meet the needs of this market.

The new system allows researchers to position multiple probes with high precision, in a very compact space. The use of M3 modules enabled the team to create the new system in only a few months.
See you in Munich!
Laser World of Photonics
June 26-29
Munich, Germany

About Us

New Scale Technologies develops small, precise and smart motion systems for critical adjustments of optics, and many other micro positioning applications. Our tiny "all-in-one" motion modules with embedded controllers are easy to integrate into next-generation instruments for medical, scientific and industrial applications. They speed development time and deliver best-in-class performance in handheld, portable and laboratory systems. Contact us.
