EZ CONNECTOR is a new-patented corner and bolt system which, for the first time, allows the contractor to make their duct joints with a single, super-fast, locking bolt, using only an impact driver.

• One step process • Saves up to 50%+ in installation time & costs in duct joint assembly work • Patented corner with locking “teardrop” hole and patented bolt with built-in washer • Self-piloting screw tip easily aligns the corners, without additional tools • No washers or nuts needed! • Patent Pending and Patent Nos 5,342,100; 6,810,570; and 8,172,280

EZ Connector TDC ® / TDF ® Corners

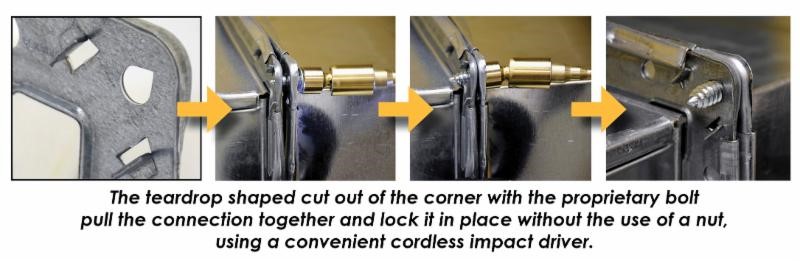

• EZ Corners feature a patented “teardrop” shaped hole that locks the bolt in place eliminating the need for a nut.   • Saves 50% labor in the field.   • Also appropriate for manual insertion.

EZ Connector Bolts

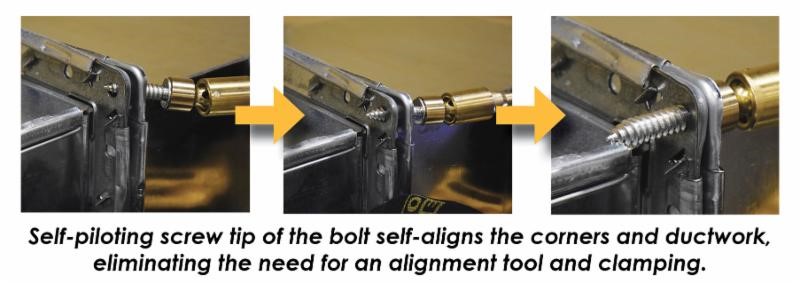

• Replaces 3/8” carriage bolt, washer and nut at the four corner connections.   • Eliminates use of drift-pin and clamps for corner alignment.   • 1-1/2” long version available for larger ductwork, heavier gauge, unique location, special fitting applications.   • 1” bolts available for faster assembly of smaller ductwork

ORDERING INFORMATION : NOTE: Prices for  these items will be available shortly.  ITEM NO.          CODE              DESCRIPTION                                                          QTY                                           13078                EZCS                Stackable TDC® EZ® Corner                                     250 13079                EZFS                 Stackable TDF® EZ® Corner                                     250  13080                EZCSV              Sleeved TDC® EZ® Corner                                       320 13081                EZFSV              Sleeved TDF® EZ® Corner                                        320 13070                EZB100B          EZ® Bolt 1" Only BULK                                            1000     13071                EZB100             EZ® Bolt 1" Only Bagged                                          125 13073                EZB112B          EZ® Bolt 1-1/2" Only BULK                                        500 13074                EZB112             EZ® Bolt 1-1/2" Only Bagged                                    125 13077                EZS2                 EZ® Swivel Impact Nut Driver                                   1
