Dyn-O-Strut™ from Duro Dyne is cold-formed to size from low carbon strip steel making its strength ideal for use on a variety of commercial applications. With slotted holes at 2‘’ centers, it allows for easy use with threaded rod and an assortment of threaded rod accessories that can engage and secure to the strut.

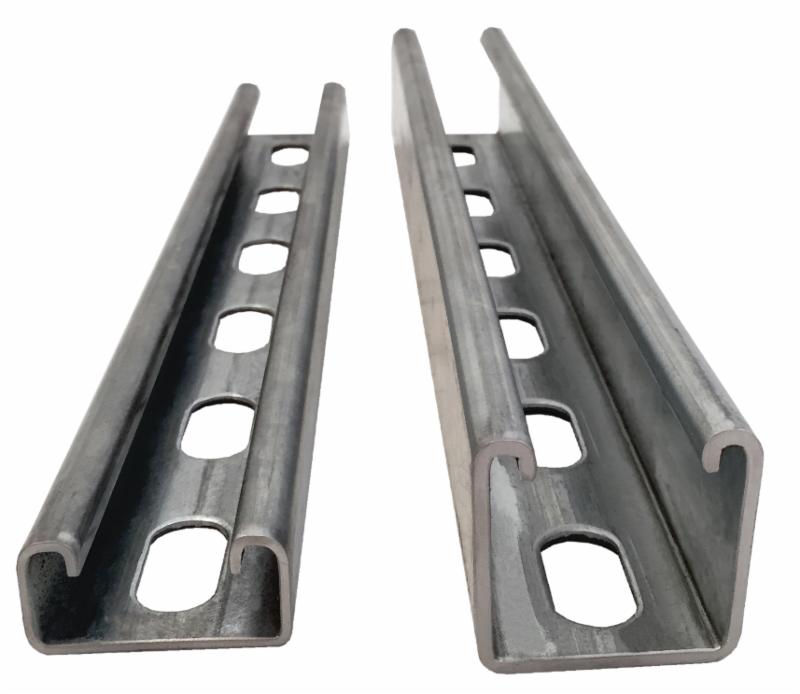

Duro Dyne offers Dyn-O-Strut in 14 gauge in both Deep and Shallow style channels. The Deep channel is also offered in 12 gauge. Dyn-O-Strut is sold in 10 ft. or 20 ft. lengths and 500 ft. or 1000 ft. per bundle.
Slotted Strut is a common product used in Commercial Construction. With slotted holes at 2‘’ centers, it allows for easy use with threaded rod and an assortment of threaded rod accessories that can engage and secure to the strut.
Ordering Information:
Dyn-O-Strut:
13045 DS1210-158 1-5/8x1-5/8x10ft 12 GA Slotted Dyn-O-Strut - Deep 10'
13049 DS1410-158 1-5/8x1-5/8x10ft 14 GA Slotted Dyn-O-Strut - Deep 10'
13047 DS1410-1316 13/16x1-5/8x10ft 14 GA Slotted Dyn-O-Strut - Shallow 10'
13125 DS1220-158 1-5/8x1-5/8x20ft 12 GA Slotted Dyn-O-Strut - Deep 20'
13126 DS1420-158 1-5/8x1-5/8x20ft 14 GA Slotted Dyn-O-Strut - Deep 20'
13127 DS1420-1316 13/16x1-5/8x20ft 14 GA Slotted Dyn-O-Strut - Shallow 20'

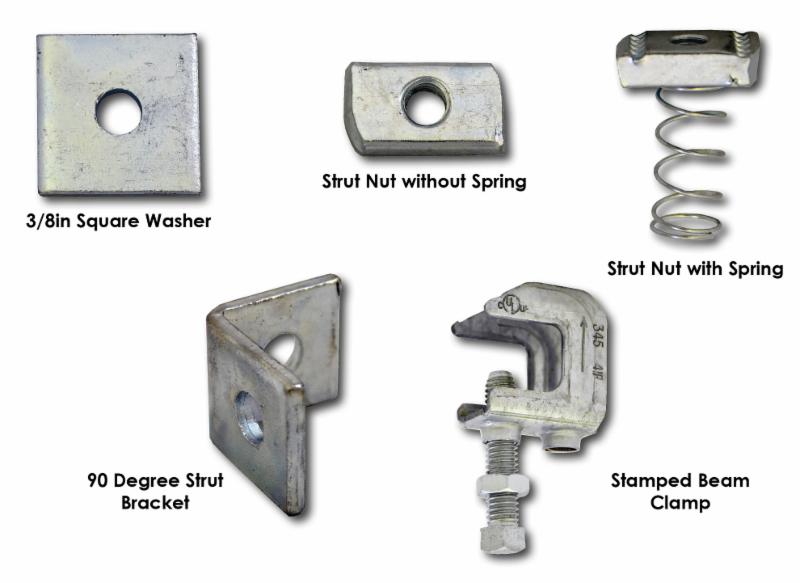

Accessories:
13101 SW38 3/8in Square Washer
13102 S38 Strut Nut without Spring
13103 SN38 Strut Nut with Spring
13104 SB90 90 Degree Strut Bracket
13105 SBCSN38 3/8in Stamped Small Mouth Beam Clamp

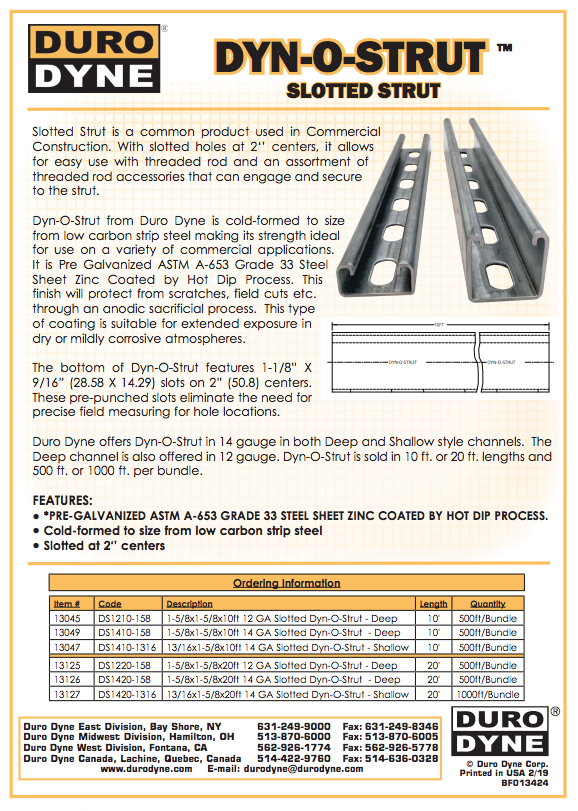

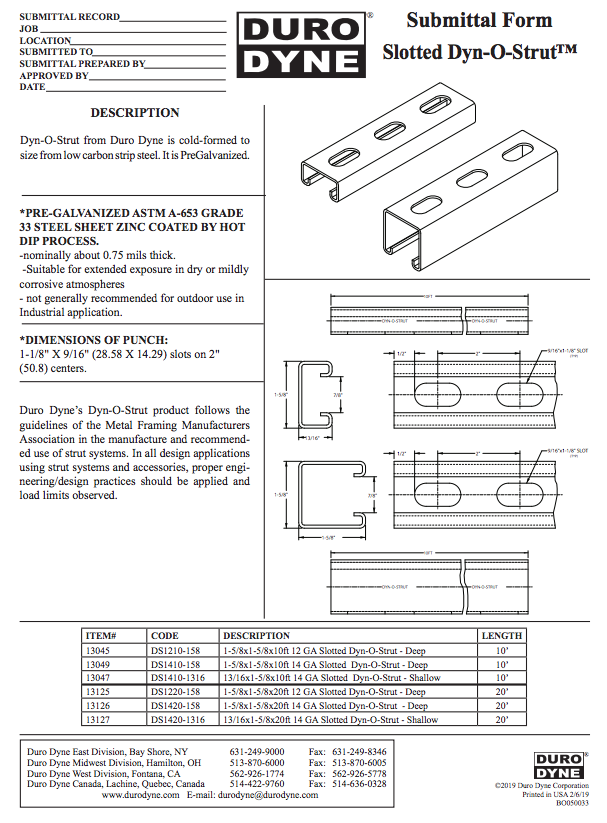

For more information on Dyn-O-Strut and Accessories, click the images below for the Literature Sheet and Submittal!
