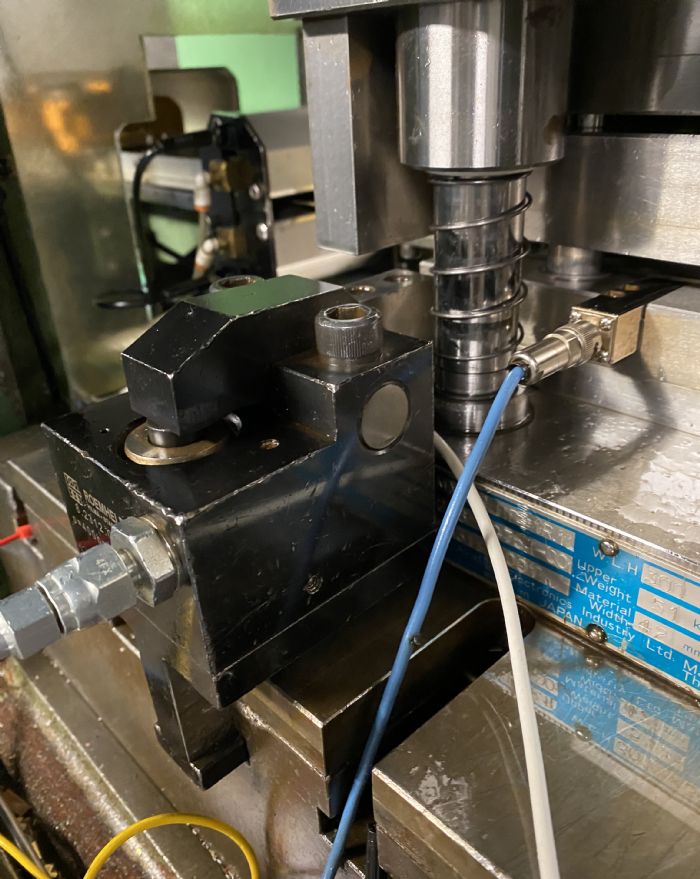

When space is limited, the Angular Clamp can clamp on small edges

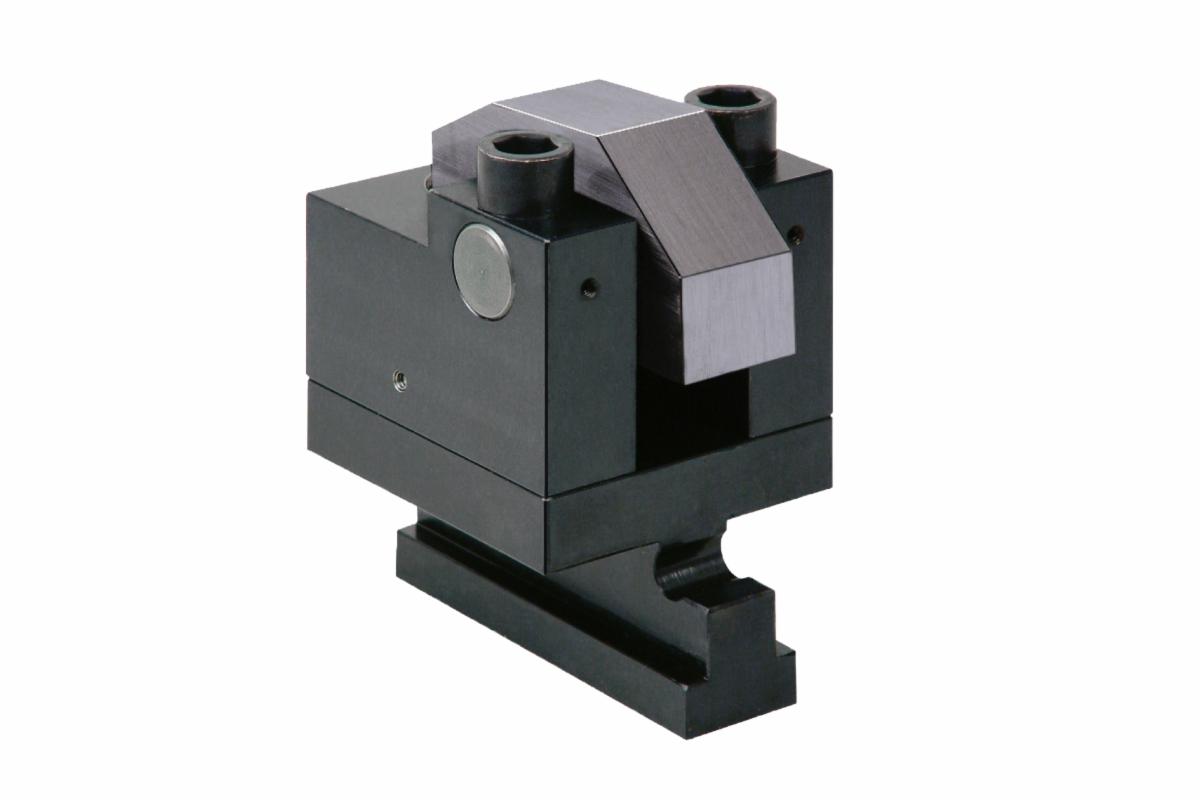

The angular clamp can be equipped with a T-slot adapter for manually placing the clamp in T-slots in the press ram or bed. The clamp is to be positioned at the die clamping edge and clamping force is applied using hydraulic pressure and unclamped by spring force. The clamping block can also be directly mounted without the optional T-slot adapter. The primary benefit of the angular clamp is that the clamping force is applied to a small portion of the die edge. Specially designed clamping levers are available upon request.

● Optimum force transmission
● Compact design
● Easy mounting
● Suitable for minimum clamping edges
● T-slot 18, 22, 28 and 36mm as well as 13/16" and 1-1/16"
● Total stroke 5.5 – 6 mm (0.216-0.236 inch)
● Die standardization with regard to the width and depth is not required
● Easy to retrofit
QDC Squeezes Every Drop Of Productivity
Like a thoroughbred racehorse waiting at a stuck starting gate, operators of stalled high-speed presses waiting for the completion of a die change are chomping at the bit to get to work. So, when management at electrical-contact manufacturer JAE Oregon saw an opportunity to conduct a deep dive into improving die-change-related downtime in its pressroom, the company went to work.
Hilma Quick Die and Mold Change Catalog-USA- Catalog of products for creating Quick Die Change Systems and Quick Mold Change Systems. Products include Clamps, Die Lifters, Hydraulic Power Units, Valve Packages and Accessories.
HILMA Quick Die and Mold Change Systems
Brochure highlighting application examples of Quick Die Change and Quick Mold Change systems. Each example highlights a different clamping option and how it was specifically chosen for the application.
