Featured Product
Phone: 1.781.293.3059

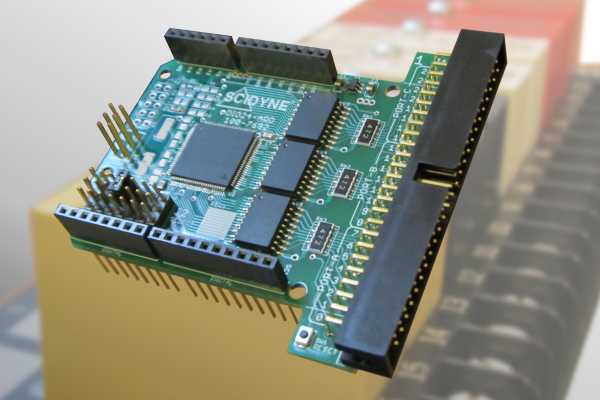

The DIO24‑ARD adds an additional 24 digital channels to Arduino UNO, MEGA and other compatible microcontroller boards. Easily connect solid-state I/O racks, switches, relays, LEDs, sensors, and many other commonly used peripheral devices. Target applications include industrial control systems, robotics, IoT, security, and education.
T he 24 non-isolated I/O channels appear as three 8-bit ports. All channels can be individually configured to act as an Input or Output. Standard Arduino Serial-Peripheral-Interface (SPI) library functions control overall operation.

Stack Multiple DIO24-ARD boards to gain even more I/O. Each board uses one jumper selectable Arduino digital output to serve as the dedicated SPI Enable. All remaining Arduino digital I/O are available for other purposes.

Visit the  DIO24-ARD webpage or download the product manual to Learn More
Works with major brands of I/O racks
or use our XIO Series Interface Boards
Industry Standard Connections
Connects using a 50-Pin IDC Ribbon Cable. The pin-out is compatible with most manufactures 8, 16, and 24 position Solid State I/O module racks.

io-modules
dio24-104

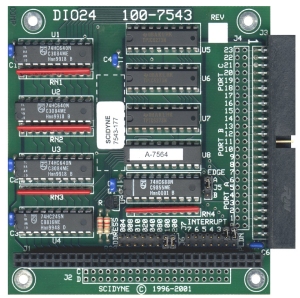

Need it for PC/104 Bus?
Take a look at our DIO24-104 . Similar functionality but designed for PC/104 Bus
