From Simple to Advanced...
We Have A Batch Controller for Your Application
|
|
|
MINIbatcher (MB2)
The MINI-Batcher is a 6 digit LED flow batcher with totalizer and 4.5 digit ratemeter display with two relay outputs for 2-stage batch control.
|
|
|
|
BATCHtrol II (BT2)
The BATCHtrol II (BT2) Batch Controller features 8 digits of bright, 0.55 inch, LED display and can accept pulse or analog inputs. The standard unit has separate"K" factors rate & total. It features a telephone style keypad for easy operation.
More Details
|
|
|
|

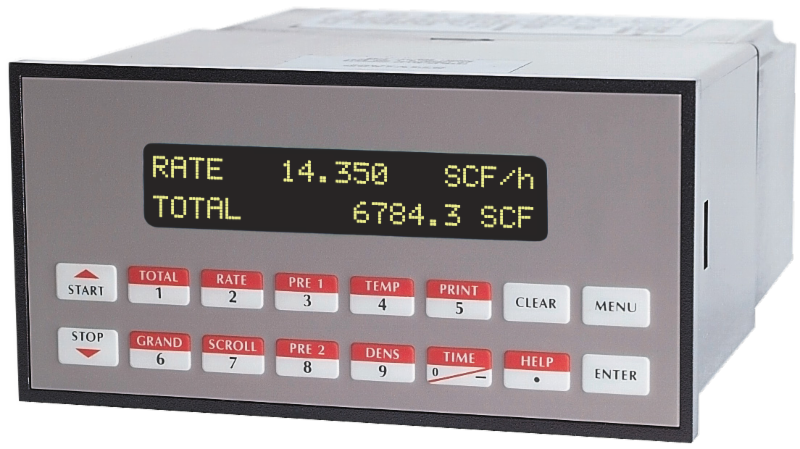

SUPERtrol-1LE (ST1LE)
The SUPERtrol 1LE (ST1LE) is a flow batcher for use with pulse producing flowmeter types in liquid applications. The display shows flow rate and total as well as measured and calculated parameters. Single key direct access to measurements and display scrolling is supported. An EZ Setup feature rapidly guides the user through the basic setup. An analog output and RS232 port are standard. An optional RS-485 serial port using Modbus RTU protocol is available.
More Details
|
|
|
|
Large Display Batcher (LDB)
The LDB (Large Display Batcher) is suitable for a variety of flowmeter types in liquid batching applications. Multiple flow equations and instrument functions are available in a single unit with many advanced batching features. The large digit alphanumeric display shows measured and calculated parameters in easy to understand format. Single key direct access to measurements and display scrolling is supported.
More Details
|
|
|
|
MS-716 ST1
The MS-716 is a Flow Totalizer, Ratemeter & Batcher for Vehicle & Skid Mount. It is tinted for truck mounting in applications such as batch control of water in cement mixing applications and batch storage of recovered produced water in Hydraulic fracturing (fracking) applications. The rugged aluminum construction of the vehicle mount enclosure includes provisions for sealing and is available in a Class I, Div II option. Advanced batching features include: Overrun Compensation, Auto-batch Start, Print End of Batch, Slow Fill, 2 Stage Batching.
More Details
|
|
|
|
STX-ST1
The STX-ST1 Explosion Proof Flow Computer offers advanced batching features for all types of flow batching systems. The STX-ST1 is compatible with a variety of flowmeter types in liquid applications. Multiple flow equations and instrument functions are available with many advanced features. The isolated analog output can be chosen to follow volume flow, corrected volume flow, mass flow, temperature, or density by means of a menu selection. The user can assign the standard RS-232 Serial Port for data logging, transaction printing, or for connection to a modem for remote meter reading.
More Details
|
|
|
|
P20 and P220 Serial Receipt Printers
The P20 is a thermal receipt printer. The P220 is an impact receipt printer. Both printers are ideal for batching applications where a print out of transactions is needed. The P220 can print on 2-ply carbonless paper for duplicate copies. Both units can be wall mounted (P220 requires optional wall mounting bracket).
Get P20 Details Get P220 Details
|
|
|
|

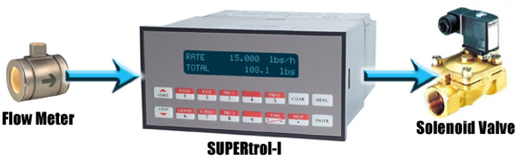

Batching Tuturial and Full Line of Batch Controllers
Visit our Batch Controller page to download a Flow Batching Tutorial and see our complete line of Batch Controllers.
Visit Flow Batcher Page
|
