Understanding TZtouch3 Accessory Cables
December 13, 2022
Furuno Fred #2022-03
Did you know that TZtouch3 uses a different power cable than the older NavNet series? TZtouch3 has many new cables with which you should become familiar. Below are some examples to reference when building your customers' next TZtouch3 systems.

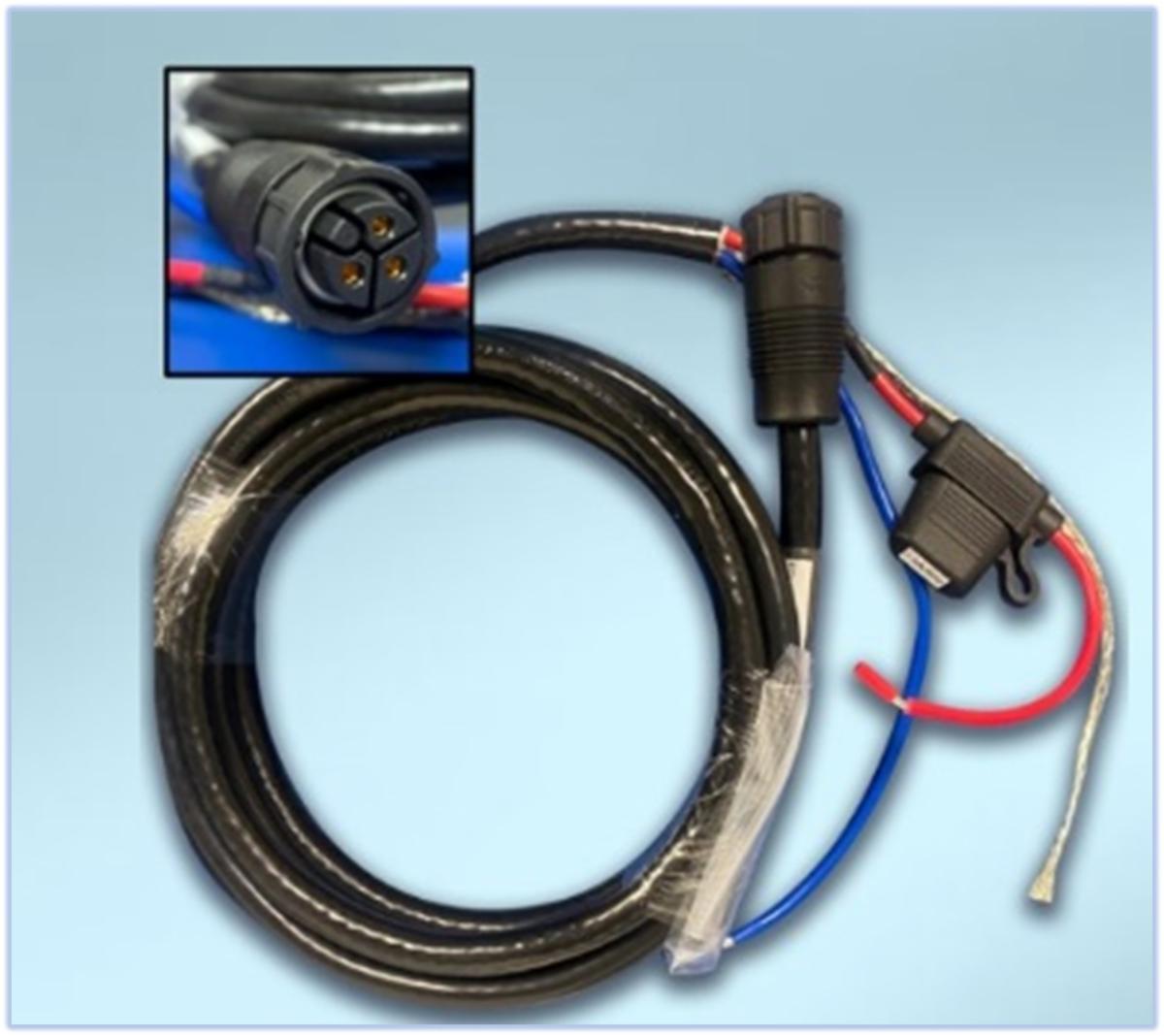

TZtouch3 power cable (000-197-091-10)
Power cable for TZT12F/TZT16F/TZT19F
(TZT9F is different - P/N 000-156-058-11)

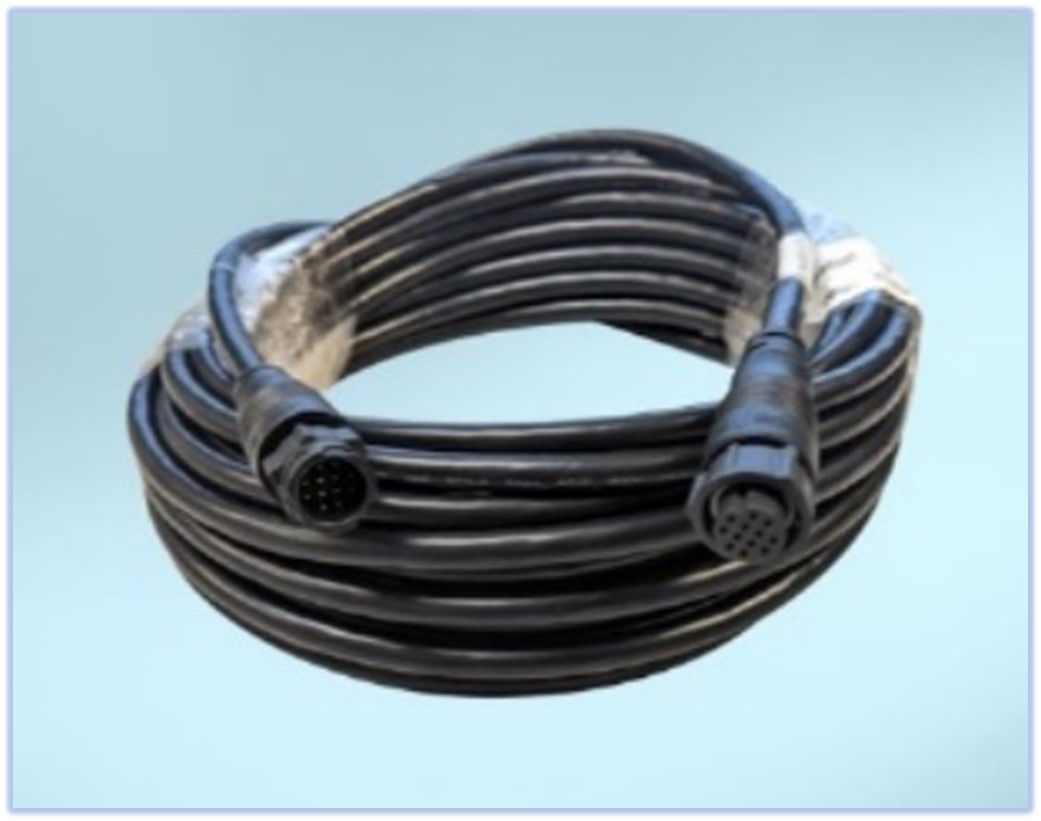

TZouch3 12-pin transducer extension (001-608-450-00)
10m extension cable for 12-pin transducer

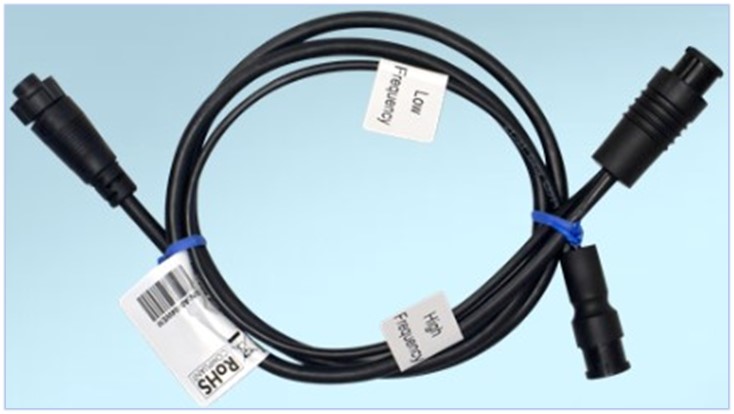

TZtouch3 transducer Y-cable (AIR-040-406-10)
12-pin – 2 each 10-pin connectors
Used when connecting two compatible 10-pin transducer pairs

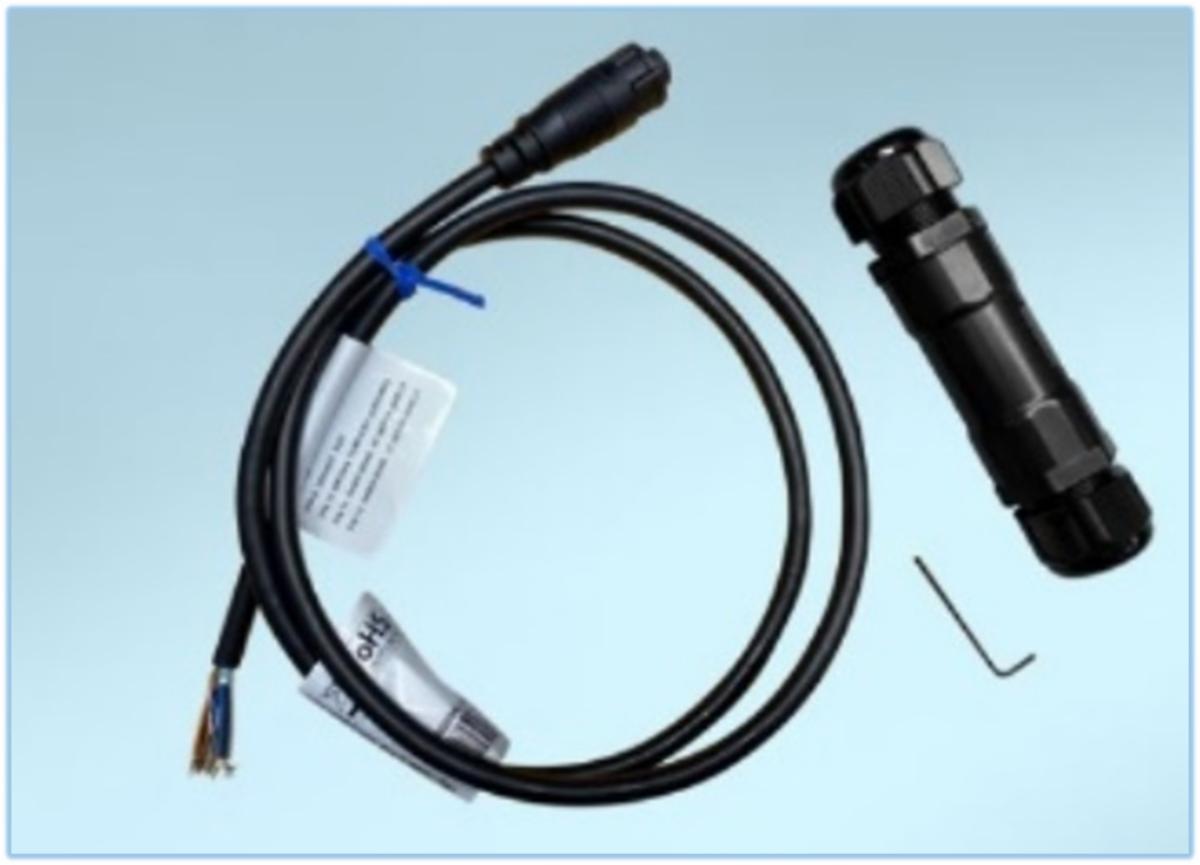

TZtouch3 12-pin pigtail cable (TZ3-12P-PGT) 1M
Used for compatible bare wire transducers

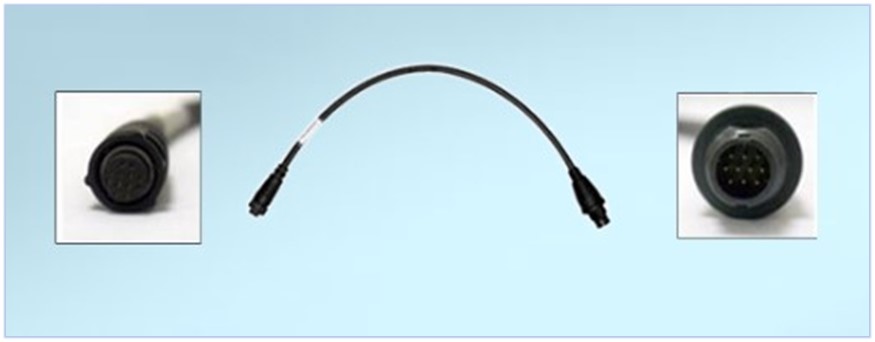

TZtouch3 12-pin transducer connection to 10-pin transducer
One is provided with each TZT12F, TZT16F, and TZT19F sold

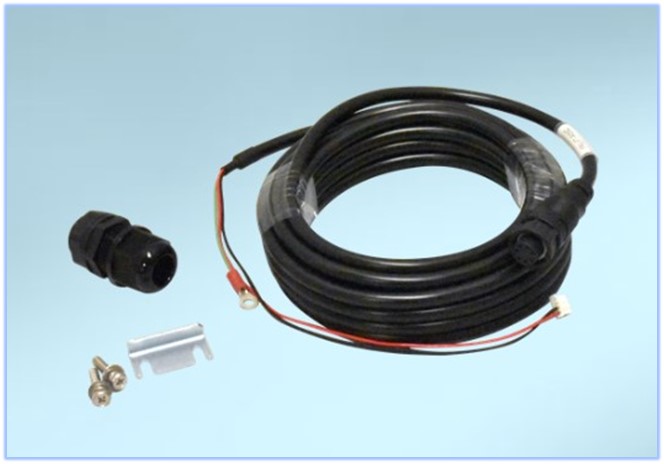

DI-FFAMP to DFF1-UHD/DFF3D Key Pulse Installation Kit
Used to prevent interference when transmitting both Fish Finders at the same time

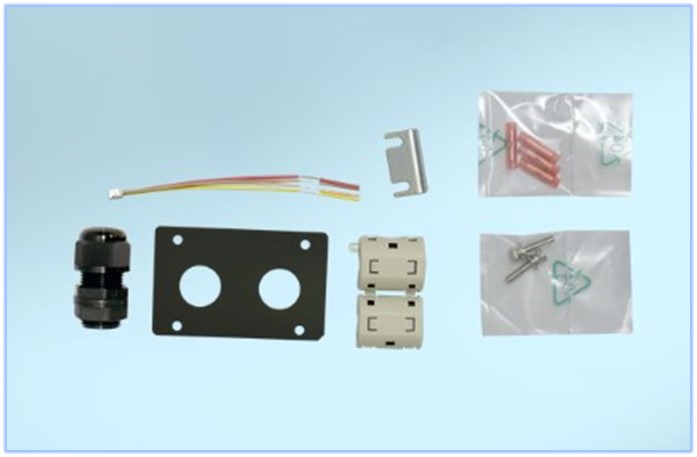

TZtouch3 Internal Sounder Key Pulse Kit to DFF3D (001-605-510-00)
Used to prevent interference when transmitting both Fish Finders at the same time
If you have any questions, visit our website (www.FurunoUSA.com) and click on "Get Support" then "Ask a Question." You may also contact a Furuno support technician at either our Camas, WA facility (360) 834-9300 or our Denton, MD facility (410) 479-4420.
