The IDC-STB family of screw terminal boards provide a convenient and secure way to transition from flat ribbon cables to individually accessible field terminations.

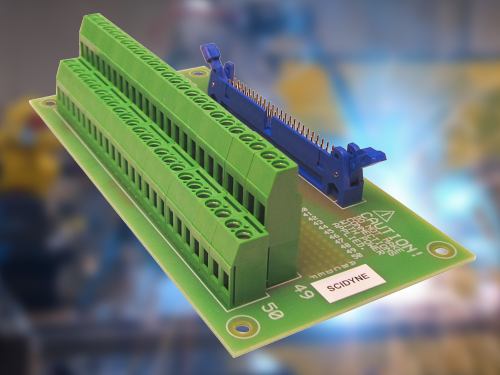

IDC_STB_50
IDC-STB boards are 3 inches wide and vary in length as determined by the ribbon cable size and the number of screw terminals. Each wire of the ribbon cable is routed to a corresponding screw terminal. In addition, a solder-pad prototyping area is provided allowing custom intermediate circuitry to be easily constructed.
Key Features
  • Converts IDC Flat Ribbon Cable to Screw Terminals

  • Available sizes: 20, 26, 34, 40, 50, and 60 positions

  • Screw Terminals accept wires in the range of 12 - 24 gauge

  • Solder-pad area for adding custom circuitry

  • Mount using Stand-Offs, SNAPTRACK, or optional DIN Rail
