Marki Microwave introduce their first 50GHz surface mount products, the MM1-1850HSM and MM1-1850SSM double-balanced mixers.
These GaAs MMIC mixers offer wide bandwidths and high linearity in surface mount packages. With an RF bandwidth of 18 to 50GHz and IF of DC to 21GHz these are ideally suited for electronic warfare, radar, multi-band 5G, as well as other K/Ka-band applications.

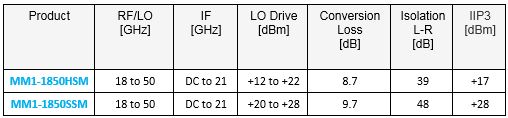

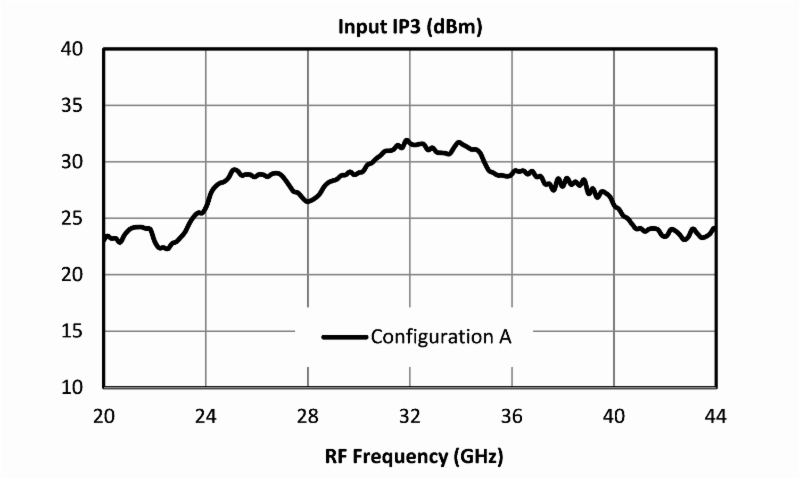

Both mixers offer excellent spurious suppression with the MM1-1850SSM providing the highest linearity with +28 dBm IIP3. The MM1-1850HSM and MM1-1850SSM are offered in a 4x4 mm SMT package. Evaluation boards are also available.
