Properly Size a Cooling Water Manifold
Before you order a manifold, do the math.
The total flow rate of all ports combined should be less than or equal to the flow rate of the supply or return.

According to our handy reference chart, a reasonable rate of flow for a 3/4" inlet is 15 Gallons per Minute. On a 16-port manifold, that leaves you with less than one gallon per minute available to each circuit if the flow through the ports is balanced. Supply as much flow as possible. You can always slow things down with a valve or regulator.

For the best possible cooling conditions, ensure Turbulent Flow. Remember about our on-line tool for Turbulent Flow Calculations.

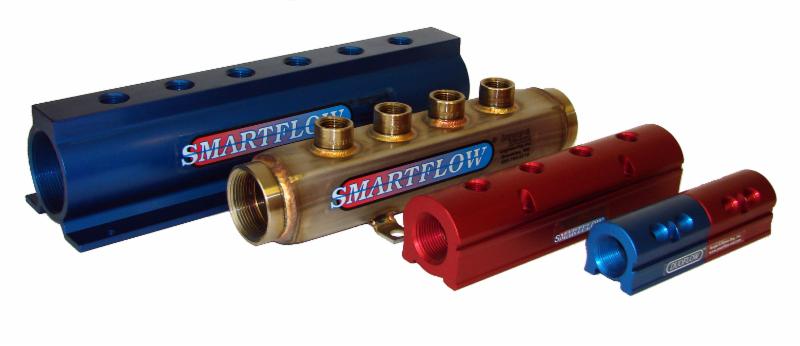

manifold group hires
Aluminum and Stainless Steel Manifolds are available from stock or in a custom size to meet your needs.
Learn to Optimize Cooling Water Usage
The First Law of Thermodynamics -
Energy cannot be created or destroyed.
Scientific Cooling is a comprehensive 2-day class for designers, mold builders, tooling engineers, process engineers and mold technicians who want to better understand and control the effects of mold cooling.

If you have:
  • Inconsistent Part Quality
  • Long Cycle Times
  • Tooling Rework Due to Cooling Line Issues
  • Water Conservation Requirements

This class is for you!
Sign up before November 7th to join the last Scientific Cooling Class of the year in Ashland Ohio at the MoldTrax facility.
Dec 5 & 6, 2017
with
Instructor Phil Burger, P.E.
