STANDARD MEDIA PLAYERS AND IPCs (INDUSTRIAL-GRADE PCs)
See true A.I.-grade computers at the bottom of the list. As you know, it is rare to find a computer motherboard with an incredible mean time between failure / MTBF of 27.5 years at 45C (even longer at room temperature) and have peace of mind that it will work even at -40C to +70C maximum operation. Such German quality is now available from San Diego for the American market. For your review, please find below a list of standard models of Media Players / IPCs (industrial personal computers) by Impact - Kontron’s tech support & selling channel in the U.S. Kontron’s German-made =U.S. friendly computer motherboards are both high quality and very inexpensive because of their nearly 100% robotic assembly. And since Kontron is an IoT Alliance "Premier" level member of Intel partners, Impact works closely with Intel. Thus, with or without chassis (just as motherboards optionally), all these products available from Impact feature built-in Intel CPUs.
Please specify O/S (operating system, if any) and amount of RAM & storage you need when inquiring about the following products - all supported in mass production for min 5 years or longer from introduction without any changes to the motherboard design:
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|

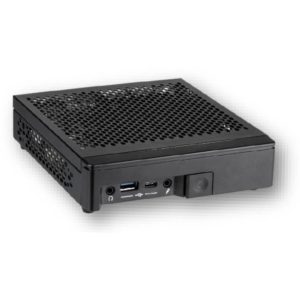

6.50” x 5.78” x 1.4”
FANLESS
6W-10W TDP
|
|
motherboard specs
for 24/7 use
|
|
AMD Ryzen
Ryzen R1102G (Dual-Core, 1.2GHz base)
Ryzen R1305G (Dual-Core 1.5GHz base)
with integrated AMD Radeon™ Vega GPU
|
|
Embedded CPU, 4K graphics, up to 32GB RAM, TPM security chip, 1x HDMI & 1x DP for -R1 or 1x HDMI & 2x DP for -R2, Headset Jack & Stereo Mic, 5x USB A & 1x USB-C, 2x LANs, Optional COM port (like RS232/422/485), Optional WiFi/Bluetooth
|
|
Operating temperature in chassis:
-10 °C to +35 °C in horizontal position or -10 °C to +40 °C in vertical position
(Motherboard operating temperature: -10°C to +70°C)
Certifications: yes
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
6.5” x 5.78” x 1.4”
FANLESS
10W TDP
|
|
motherboard specs
MTBF:
27.5 years at 45C; or 144,235.00 hours = 16.5 years at 60C with 24/7 use
|
|
Intel® "Gemini Lake"
Celeron J4005 (DualCore @2.7GHz) with Intel® UHD Graphics 600 (12EUs @700MHz)
Celeron J4105 (QuadCore @2.5GHz) with Intel® UHD Graphics 600 (12EUs @750MHz)
Pentium Silver J5005 (QuadCore @2.8GHz) with Intel® UHD Graphics 605 (18EUs @800MHz)
|
|
Embedded CPU, 4K graphics, 2 Display Ports, 1 COM port, 7 USBs, 2 LANs, TPM security module, up to 16GB DDR4 RAM, up to 2TB M.2-based SSD, optional WiFi/Bluetooth (has internal eDP, LVDS, 2nd COM port connectors)
|
|
From cold start (!) -40 to +70C operating and storage for motherboard (system w. chassis has been tested up to +50C only)
FCC Class B, CE Class B,
EN 61000-6-2 (Industrial Immunity), motherboards certs also available)
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
7.5” x 6.0” x 3.0”
FANLESS
up to 35W TDP
|
|
motherboard specs
MTBF:
248,623 hours at 40C = 28.3 years with 24/7 use
|
|
Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh”
Core™ i3 Core™ i5
Core™ i7
Core™ i9
..T series
with built-in graphics depending on the exact CPU’s p/n
|
|
Socketed CPU, Display Port, 1 HDMI port, 7 USBs, 2 LANs, TPM security module, up to 32GB DDR4 RAM, up to 2TB M.2-based SSD, optional WiFi/Bluetooth |
|
Board rated for -40 to +50C operating, -40C to +70C storage
(see thermal data with chassis here)
Contact Impact for certification details and Chassis Specs (Impact's proprietary)
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
6.5” x 5.78” x 1.4”
WITH FAN
(adds PWM @ 5V, max. 3W, CPU up to 65W TDP)
|
|
motherboard specs
MTBF:
248,623 hours at 40C = 28.3 years with 24/7 use
|
|
Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh”
Core™ i3 Core™ i5
Core™ i7
Core™ i9
..T series
with built-in graphics depending on the exact CPU’s p/n
|
|
Socketed CPU, 1 Display Port, 1 HDMI port, 6 USBs, 1 LAN, TPM security module, up to 32GB DDR4 RAM, up to 2TB M.2-based SSD, optional WiFi/Bluetooth |
|
-40C to +40C operating, -40C to +70C storage (motherboard rated for -40C to +50C operation)
FCC Class B, CE Class B,
EN 61000-6-2 (Industrial Immunity), motherboards certs also available
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
9.8” x 7.5” x 2.0"
FANLESS (up to 12W to 15W TDP) or WITH FAN
|
|
motherboard specs
MTBF 8 years or 70,000 hours @ 40 °C at continuous 24/7/use
Motherboards certifications are available
|
|
V1202B (Dual-Core 2.3GHz base)
V1605B (Quad-Core 2.0GHz base)
V1807B (Quad-Core 3.35GHz base)
R1102G (Dual-Core, up to 2.6GHz base)
R1305G (Dual-Core 1.5GHz base)
R1606G (Dual-Core 2.6 GHz base)
with integrated AMD Radeon™ Vega Graphics
|
|
up to 32GB RAM, 4 Display Ports, 6 USBs, 2 LANs, 2 Serial COM ports, Audio In, Audio Out; with optional riser card for 1 PCIe slot, optional WiFi/Bluetooth (via optional mPCIe-to-m.2 WLAN Adapter), flexible DC-in (any 8V to 36V)
|
|
Fanless:
-10°C to +35°C in horizontal position
-10°C to +40°C in vertical position;
With Fan:
-10°C to +45°C
(Motherboard operating temperature: -10°C to +70°C, storage temp -25C to +70C)
CE Class B & EN 61000-6-2 (Industrial Immunity) certified
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
9” x 8.6” x 3.5"
IP 50 DUST-PROOF
FANLESS
|
|
motherboard specs
MTBF 8 years or 70,000 hours @ 40 °C at continuous 24/7/use
Motherboards certifications are available
|
|
V1202B (Dual-Core 2.3GHz base)
V1605B (Quad-Core 2.0GHz)
V1807B (Quad-Core 3.35GHz)
R1102G (Dual-Core, up to 2.6GHz)
R1305G (Dual-Core 1.5GHz)
R1606G (Dual-Core 2.6 GHz)
with integrated AMD Radeon™ Vega Graphics
|
|
up to 32GB RAM, 4 Display Ports, 4 USBs, 2 LANs, 2 Serial COM ports, Audio In, Audio Out, optional WiFi/Bluetooth (via optional mPCIe-to-m.2 WLAN Adapter), flexible DC-in (any 8V to 36V), Anodized aluminum, Silver or Black color, optional custom logo (silk print or laser) |
|
-10 to 50°C operating, -25C to +70C storage in chassis
(Motherboard operating temperature: -10°C to +70°C, storage temp -25C to +70C)
Certifications available upon request
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
9.8” x 7.5” x 2.0"
FANLESS, 10W TDP
fan option available
with optional Internal 65W PSU @12V
|
|
motherboard specs
MTBF:
181,072 hours or 20.6 years at 45C, and 108,437 hours or 12.4 years at 60C with 24/7 use
|
|
Intel® Latest Gen "Gemini Lake"
Celeron J4005 (DualCore @2.7GHz) with Intel® UHD Graphics 600 (12EUs @700MHz)
Celeron J4105 (QuadCore @2.5GHz) with Intel® UHD Graphics 600 (12EUs @750MHz)
Pentium Silver J5005 (QuadCore @2.8GHz) with Intel® UHD Graphics 605 (18EUs @800MHz)
|
|
Embedded CPU, 4K graphics, 2 Display Ports, 5 USBs, 2 or 4 COM ports, 2 LANs, TPM security module, up to 16GB DDR4 RAM, up to 2TB M.2-based SSD or use 2.5” bay drive, low profile PCIe x4 via optional riser card, optional WiFi/Bluetooth (has internal eDP, LVDS, and more USB connectors) |
|
0°C to 35°C operating for fanless or 0°C to 50°C operating with fan (chassis ambient temperature), -25C to +70C storage; motherboard rated up to 60C operation
FCC Class B, CE Class B,
EN 61000-6-2 (Industrial Immunity), motherboards certs also available
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|

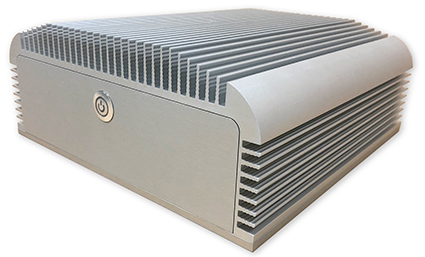

11.8" x 9.6” x 3.65"
IP 50 DUST-PROOF, FANLESS
(CPU up to 35W TDP, with Internal 65W PSU @12V)
|
|
motherboard specs
MTBF:
19.4 years of 24/7 use at 40C and 10.2 years of 24/7 use at 60C
|
|
Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh”
Core™ i3 Core™ i5
Core™ i7
Core™ i9
..T series
with built-in graphics depending on the exact CPU’s p/n
|
|
Socketed CPU, 1 DVI, 2 Display Ports, 8 USBs, 5 COM ports, 2 LANs, TPM security module, up to 32GB DDR4 RAM, up to 2TB M.2-based SSD or use 2.5” bay drive, optional WiFi/Bluetooth (has internal eDP, LVDS connectors) |
|
0C to +45C operating, -25C to +70C storage; motherboard rated up to 60C operation
CE EMC regulations certs such as IEC 62368, and cCSAus 60950-1 (motherboards certs also available)
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
11.8" x 9.6” x 3.65"
Q370 chipset with vPro, IP 50 DUST-PROOF, FANLESS
(CPU up to 35W TDP, with Internal 65W PSU @12V)
|
|
motherboard specs
MTBF:
161,710 hours or 18.4 years at 40C, and 84,554 hours or 9.6 years at 60C of 24/7 use
|
|
Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh”
Core™ i3 Core™ i5
Core™ i7
Core™ i9
..T series
with built-in graphics depending on the exact CPU’s p/n
|
|
Socketed CPU, 1 DVI, 1 Display Port, 5 USBs, 5 COM ports, 2 LANs, TPM security module, up to 32GB DDR4 RAM, up to 2TB M.2-based SSD or use 2.5” bay drive, optional WiFi/Bluetooth (has internal eDP, LVDS connectors) |
|
0C to +45C operating, -25C to +70C storage; motherboard rated up to 60C operation
CE EMC regulations certs such as IEC 62368, and cCSAus 60950-1 (motherboards certs also available)
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|

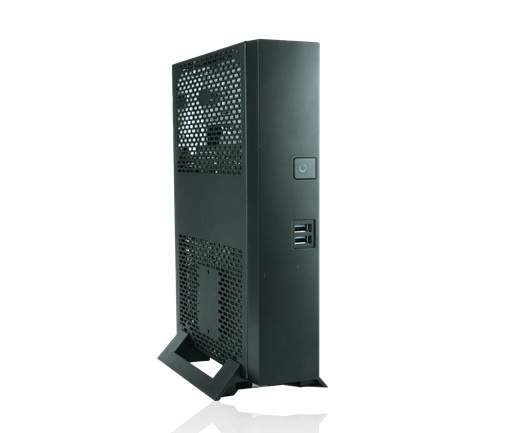

9.8” x 7.5” x 2.0"
WITH FAN
(CPU up to 35W TDP, with optional Internal 65W PSU @12V)
|
|
motherboard specs
MTBF:
19.4 years of 24/7 use at 40C and 10.2 years of 24/7 use at 60C
|
|
Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh”
Core™ i3 Core™ i5
Core™ i7
Core™ i9
..T series
with built-in graphics depending on the exact CPU’s p/n
|
|
Socketed CPU, 1 DVI, 2 Display Ports, 8 USBs, 1 or 2 COM ports, 2 LANs, TPM security module, up to 32GB DDR4 RAM, up to 2TB M.2-based SSD or use 2.5” bay drive, optional WiFi/Bluetooth (has internal eDP, LVDS connectors) |
|
0C to +45C operating, -25C to +70C storage; motherboard rated up to 60C operation
FCC/B and CE EMC certifications (motherboards certs also available)
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
9.8” x 7.5” x 2.0"
Q370 chipset with vPro
WITH FAN
(CPU up to 35W TDP, with optional Internal 65W PSU @12V)
|
|
motherboard specs
MTBF:
161,710 hours or 18.4 years at 40C, and 84,554 hours or 9.6 years at 60C of 24/7 use
|
|
Intel 8th gen “CoffeeLake” or 9th gen “CoffeeLake Refresh”
Core™ i3 Core™ i5
Core™ i7
Core™ i9
..T series
with built-in graphics depending on the exact CPU’s p/n
|
|
Socketed CPU, 1 DVI, 1 Display Ports, 5 USBs, 1 or 2 COM ports, 2 LANs, TPM security module, up to 32GB DDR4 RAM, up to 2TB M.2-based SSD or use 2.5” bay drive, optional WiFi/Bluetooth (has internal eDP, LVDS connectors) |
|
0C to +45C operating, -25C to +70C storage; motherboard rated up to 60C operation
FCC/B and CE EMC certifications (motherboards certs also available)
|
|
|
|
|
|
|
|
Temperature Range & Certs |
|
|
17.3" x 14.9" x 6.7"
C422 chipset with vPro
Contact Impact for Chassis Specs
|
|
motherboard specs
MTBF:
118,098.00 hours = 13.5 years at 40C of 24/7 use (or longer at room temperature)
|
|
Up to 18 Cores @2.3GHz
Intel® Xeon® "Skylake-W" Processor Series:
of W-21xx family (W-2123 to W-2195, up to 18 Cores/2.3GHz)
or
Intel® Xeon® "Cascade Lake-W" Processor Series of W-22xx family (W-2223 to W-2295, up to 18 Cores/3.0GHz)
|
|
up to 512GB RAM, Extensive interface with I/O Shield and Expansion Slots on the Back (see motherboard specs), Front panel I/O ports include microphone, audio and two USB 3.0 ports |
|
10°C to 50°C operating and -25°C to 70°C storage for the motherboard
Contact Impact for certification details
|
|
|
AMD-based and uATX-based products are available
|
|
|
|
|
|
|
