Jet Loop Reactor System for Sale

PHX Plant #553

Phoenix Equipment currently can offer an unused, never installed jet loop reactor system that was originally intended for hydrogenation. The system was designed as a continuous jet loop reactor system but can be used in a batch reactor system too. r process is made up of essentially three parts: Catalyst activation, reaction, and spent catalyst removal.

SA516 Carbon Steel Loop Reactor - MAWP 150 psi @579F max temperature

Major Equipment:

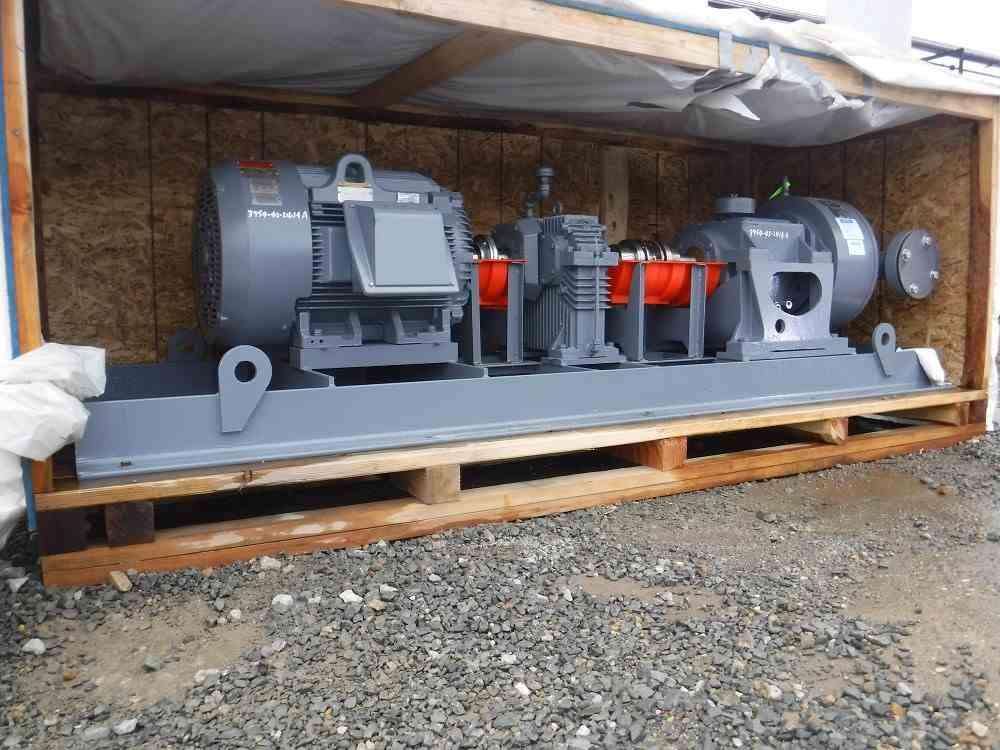

1. Loop Reactor Feed Tank Pumps (P – 2 / P-2014A & P – 3 / P-2014B / Location: USA)
2. Fresh Catalyst Tank Jet Mixer (MZ – 2 / MZ-3036 / Location: USA)
3. Fresh Catalyst Batch Tank (V – 4 / V3035 / Location: China)
4. Fresh Catalyst Tank Pump - (Not Available)
5. Fresh Catalyst Heat Exchanger - (Not Available)
6. Catalyst Pressure Tank - (V – 3 / V-3031 / Location: China)

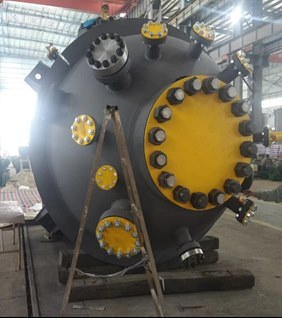

7. Loop Reactor - (R – 1 / R-3001 / Location: China)
8. Jet Mixer (MZ – 1 / MZ-3002 / Location: USA)
9. Cross Flow Filter (F – 1 / F-3033 / Location: USA)
10. Loop Reactor Heat Exchanger (EX – 1 / EX-3006 / Location: USA)
11. Loop Reactor Pump (P – 1 / P-3004 / Location: USA)
12. Air Cooled Heat Exchanger (Not Available)
13. Loop Reactor Cross Flow Filter Back Pulse Tank (V – 1 / V-3013 / Location: China)
14. Batch Filtration Tank (V – 6 / V-4031 / Location: China)
15. Filtration Vessel Pump (Not Available)
16. Batch Product Filter (F – 2 / F-4035 / Location: USA)
17. Product Stripper Feed Tank (V – 7 / V-5005 / Location: China)
18. Stripper Feed Pumps (Not Available)19 - Solvent Recovery Tank Reflux Condenser (EX – 3 /EX-3021 /) & Solvent Condenser (EX – 2 / EX-3019) / Location: USA
19. Loop Reactor Solvent Recovery Tank (V – 2 / V-3020 / Location: China)
20. Loop Reactor Continuous Guard Filters (F – 3 / F-4036A & F – 4 / F-4036B / Location: USA)
21. Relief Vent Collection Tank (V – 5 / V-3091 / Location: China

Do you need more information about this plant?

Continuous jet loop reactors are usually smaller than a batch reactor that makes the same amount of product. Gas—liquid reactions and reactions utilizing liquid or solid catalysts often depend on dispersion of the gas/liquid/catalyst in the reactor, and a jet loop reactor design improves this mixing, while reducing the reactor size and increasing the process yields. The system was never installed, and all available components are immediately available for purchase. Some components are in China located at OEM's site, and the balance of available assets are in the US. Visit the Phoenix Equipment plant listing for more information on the 5200 Gallon Jet Loop Reactor Systems and specific equipment being offered.
