Just how accurate is Google Earth?

Google Earth (GE) is Awesome. For those that grew up using paper topographic maps and way before GPS and the internet, can really appreciate the efforts put into Google Earth.

Not to mention that the GE Pro version is FREE!!!

The things I could have used GE for 40 years ago.

GE is georeferenced to WGS 84. I am not just sure how GE rectifies its images but it is pretty close to being spot on when cross checking NAD 83 values on known points to the Lat/Long on GE. It is not survey grade level accuracy but it is usable for GIS accuracy.

For example:

Here is a site that four GCPs were established for a mapping site using visible PID markers that can be seen in GE.

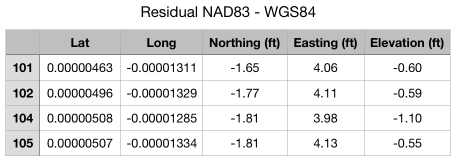

The WGS 84 (from GE) vs NAD83 (field survey) residuals are as follows:

Wow that is really close.

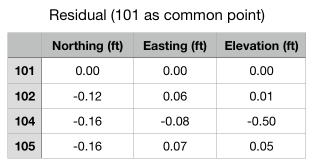

Holding point 101 (NAD83) as the common point and transforming the WGS 84 values to this common point the residuals are as follows:

Conclusion

I am blow away at just how accurate GE is once transformed to a known surveyed point.

I really expected the elevation to be off by feet, not by tenths.

The horizontal is spot on. I really was lucky in picking the right point on GE.

I am also calculating everything in grid coordinates to keep each point in the same datum.

I will test other locations to see if the residuals are uniform. My best guess at this point is that each location will vary slightly.

Would I use GE for Lat/Long for GIS mapping, yes I would. It is accurate enough for that type of mapping. You do have to have a good known point to adjust to.

"I fly drones for a living and write DIY surveying math/mapping books for fun!"
