Learn1 HIGHER BLOCK STRENGTH - LOWER COSTS

What do you use as your default design strength for masonry? Have you checked with local suppliers to see what is commonly available? Masonry strengths can vary widely, but new findings show the design strengths may be higher than what engineers typically assume.

In the April 2019 SE University session, Cathleen Jacinto presented Lintels for Masonry Walls. Cathleen reviewed the behavior and load distribution of lintels and masonry walls with openings and discussed practical design and detailing strategies to achieve high performing lintels. Cathleen also explained the advantages of analyzing masonry walls with finite element software, and shared findings on what engineers can safely assume for the design strength of masonry.

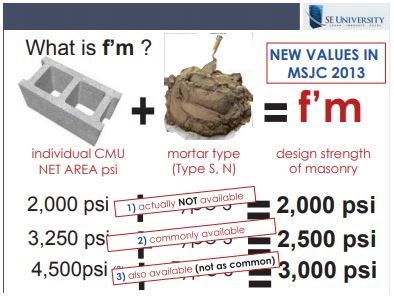

Typically during design, the engineer does not know the exact block strength that will be supplied on site, and to minimize costs we often specify the minimum block strength of 1900 psi, thus giving an f'm of 1500 psi. However, Cathleen shared that these lower strength masonry blocks are not even available from most suppliers, and in most areas of the country, suppliers provide masonry blocks with a minimum block strength of 3750 psi. This allows the engineer to assume an f'm of 2500 psi without any additional costs to the project. Cathleen shared a website that her company, FORSE Consulting, has created to monitor masonry strengths across the country. Click here to access the map and find masonry strengths from suppliers near you. In IBC 2015, which references the MSJC 2013, the masonry strength values have changed as shown in the slide to the right. The new code allows a minimum block strength of 3250 psi to achieve an f'm of 2500 psi...  read the full article on our SE University blog.

Learn2 CFS STUD PACKS VS HSS

Have you encountered a design where you just can't seem to make a stud pack work sensibly without using an over the top amount of studs or having to increase the thickness? When is it appropriate to stick with a cold-formed stud pack, and when should you consider using another option such as an HSS section?

In the May 2019 SE University session, Roger LaBoube, PhD, PE, from Missouri University of Science and Technology, presented Built-Up Member Design (Cold-Formed Steel). During the session, Roger reviewed the applicable cold-formed steel standards for framing members vs. other cold-formed applications, discussed economical solutions for stud packs, and walked through a design example of a built-up box beam that is not specifically enabled by the current design standards.

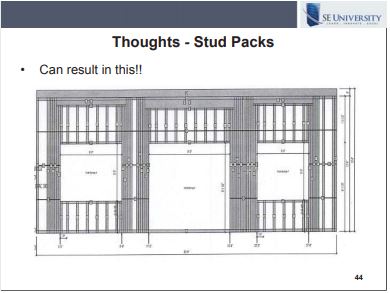

D110 presents a design solution which results in each jamb stud in the stud pack having the same tributary area as a typical stud. However, as Roger pointed out, this can lead to an inefficient design in some cases, as shown to the right.

Roger provided some guidance on whether stud packs or HSS sections might be most appropriate, based on the advice of other practicing engineers...  read the full article on our SE University blog.
