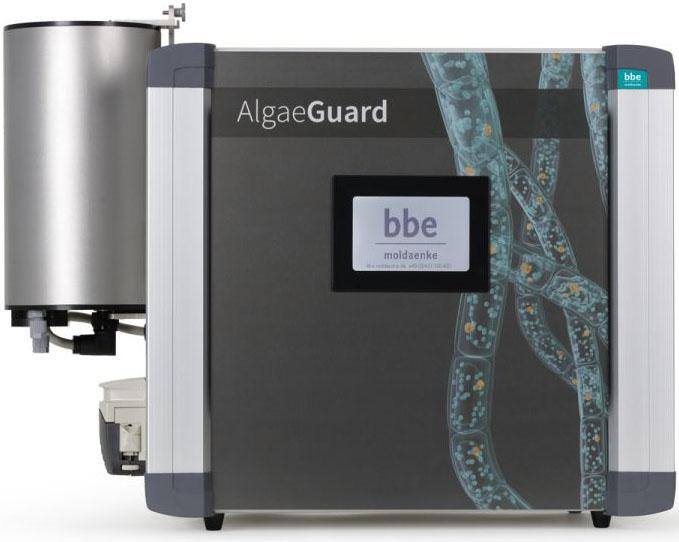

The bbe AlgaeGuard : Your cost-effective, plug & play solution for continuous analysis of microalgae in real time.
bbe Moldaenke GmbH has developed and produced measuring instruments and software to assess and manage water quality for more than 20 years . Made for use in oceanography, limnology, drinking water monitoring, river dam monitoring, bathing water analysis, supervision of aqua culture systems and environmental assessment, these instruments have come to be relied upon as the industry standard.
Simple, quick & reliable distinction of green algae, blue-green algae (cyanobacteria), diatoms & crytophytes in a flow-through chamber.
Continuous Measurement In Real Time
The AlgaeGuard continuously measures the chlorophyll fluorescence of microalgae in real-time and shows the current result on the integrated display. In contrast to time-consuming sample preparations and counting, the fluorometric assay provides rapid determination of the chlorophyll content in its natural environment.

The AlgaeGuard is adapted to HPLC-pigment analysis.
Truly Plug & Play
AlgaeGuard measurements are carried out automatically using predefined parameter settings immediately after boot-up or via the touchscreen start button.

Low Maintenance
Continuous configuration by the operator is unnecessary. Maintenance no more than one hour per month.
> Quick, simple chlorophyll determination with algae class analysis

> Direct measurement without sample preparation

> Plug and play, s imple operation

> Virtually maintenance-free

> Integrated cleaning unit in measuring chamber prevents biofouling
> Different communication ports, also in an industrial setting:

  • up to 8 alarm outputs (potential-free contacts)
  • up to 16 analog outputs (4-20mA)
  • serial interface for data transfer
  • USB port for simple firmware updates

> Touchscreen display

> PC operation with bbe AOA software
