Manage Your Energy With A Door Prop Alarm
The Detex door prop alarms provide a unique solution to propped open doors. These alarms are designed for applications where doors may be used for egress or ingress, but may not be held or propped open.

EAX-411 Series AC Powered Door Prop Alarm
Door Prop alarm
Helping to enhance access control systems and provide additional perimeter security, the EAX-411SK AC powered door prop alarm provides a custom fit for each opening with its 0 to 60 second adjustable "door open" time. When a door is left open longer than the set time, the alarm will set. The EAX-411SK will automatically reset when the door is closed.

  • Alarm encourages users to keep door closed
  • Localized alarm notifies area personnel of security breach / door prop condition
  • Helps save on energy costs
  • Reduces false alarms
  • Stand alone device
  • Integrates into any access control system
  • 90dB alarm easily warns of door prop status
  • Adjustable alarm delay time from 0 to 60 seconds
  • Automatic alarm reset / rearm upon door closure

EAX-411 .................................................... $350 List Price

EAX-300 Black and Gray
EAX-300 Surface Mount Battery Powered Door Prop Alarm
Door open times from 1 second to 4 minutes (15 second default) are field selectable. The smaller size of the EAX-300 makes installation quick and easy. The best thing about it is it's a low cost solution to propped open doors and helps keep energy costs down by ensuring doors are closed. The alarm silences when the door is closed - you don't have to wait for the key holder to arrive.

  • Low cost solution to propped doors
  • Keeps energy costs down
  • Quick and easy installation
  • Alarm silences when door is closed
  • Secure, tamper resistant housing
  • Intelligent circuit senses the external magnet location automatically and sets the correct door handing for you
  • 100dB Piezo alarm
  • 9VDC battery operated
  • Low battery alert
  • LED visual arming indicators
  • Adjustable alarm delay time from 1 second to 4 minutes
Weatherized EAX-300 available (EAX-300W)

EAX-300 ......................................................... $272 List Price
EAX-300W (weatherized) ................................. $378 List Price

Cylinder Nut Socket now on sale

Make installing Mortise cylinders on Detex Exit Alarms easier with the Cylinder Nut Socket. Screwing the Cylinder Nut on the back of the Mortise cylinder with a screwdriver alone can damage the switches and the other sensitive parts in your Exit Alarm, but when the Cylinder Nut Socket is used, it drastically reduces chances that the switches will be damaged, and will help ensure proper tightening of the Mortise Cylinder.

Cylinder Nut Socket ....................................... $29 List Price
Tech Tip
Changing Door Prop Times

Note: The device first needs to be handed  according to installation instruction, then proceed with the following steps. (EAX-300 shown)

Step 1: Remove battery.

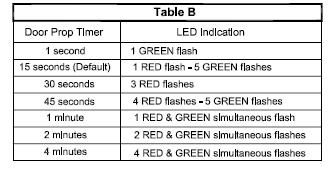

Step 2: With both micro switches closed, reconnect the battery. The flashing of the LEDs will indicate the current selection of door prop time (see Table B).

Step 3: Release both switches. The switch on the left (OKC switch) changes the programming. Pushing this switch will change the setting incrementally according to Table B. Once the desired time is selected, wait 15 seconds for the unit to flash the selection three times. The timing has successfully been changed upon hearing the siren chip four times. The new timing is retained in memory even with battery removal.

Submit A Tech Tip
If you have a tech tip you'd like to share with the audience of this monthly email, please send it to and you could win a free gift from Detex. Please keep sending those tips in and we appreciate your support of Detex products.

For More Application Questions
Call Detex technical support at 800-729-3839, extension 2.
Contact Detex Sales at 1-800-729-3839
Contact your local representative for more information.
