Membrane Protein SEC Separation

Highlights:
Membrane Protein Separations by SEC

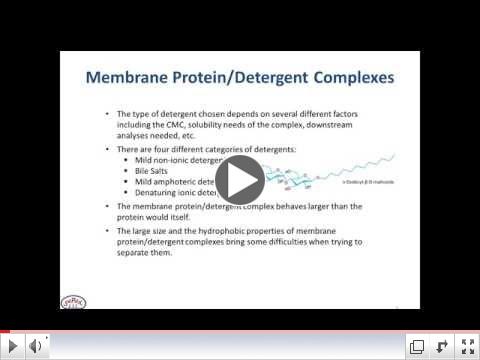

Watch our Mini Webinar on
Membrane Protein SEC Separation

- Sepax offers three different SEC phase chemistries, SRT®, SRT®-C and Nanofilm® , for different membrane protein/detergent complex separations. Due to the unique features of membrane protein/detergent complexes, one of the phases may provide best resolution/recovery for your sample.
SEC Surface Coating Advantage

- Due to the different hydrodynamic sizes of these complexes, a larger pore size may need to be evaluated to achieve the best HMW aggregate and monomer separation.

- With 5 and 10µm particle choices and various analytical and prep column dimensions, Sepax SEC columns can be used for detergent screening, high resolution analytical separation, and purification of membrane protein in crystallography processes.

Downloads:      Application Note       Mini Webinar Slides
Buy 2 or more SEC Columns from below,
Get 20% OFF Entire Purchase

Column
Dimension
Part Number
SRT SEC-300 , 5um, 500 A
4.6 x 300 mm
7.8 x 300 mm
10 x 300 mm

215300-4630

215300-7830

215300-10030

SRT SEC-500, 5um, 500 A

4.6 x 300 mm
7.8  x 300 mm
10 x 300 mm
215500-4630
215500-7830

215500-10030

SRT-C SEC-300, 5um, 300 A

4.6 x 300 mm
7.8  x 300  mm
10 x 300 mm

235300-4630

235300-7830

235300-10030

SRT-C SEC-500, 5um, 500 A

4.6 x 300 mm
7.8  x 300  mm
10 x 300 mm
235500-4630
235500-7830
235500-10030

Nanofilm SEC-250, 5um, 250 A

4.6 x 300 mm
7.8  x 300  mm
10 x 300 mm
205250-4630
205250-7830

205250-10030

 Nanofilm SEC-500, 5um, 450 A

4.6 x 300 mm
7.8 x 300 mm
10 x 300 mm

201500-4630

201500-7830
201500-10030

SRT-10 SEC-300, 10um, 300 A

10 x 300 mm

225300-10030

SRT-10 SEC-500, 10um, 300 A

10 x 300 mm

225500-10030

SRT-10C SEC-300, 10um, 500 A

10 x 300 mm

239300-10030

SRT-10C SEC-500, 10um, 300 A

10 x 300 mm

239500-10030
