The Best of German Engineering

A Mini-PC That Powers Up Your Monitor & Displays Content via USB-C

(click to play the video)

Innovation meets reliability in our newest industrial-grade Mini-PC. Built within a compact 147 x 165 x 36 mm chassis, this Mini-PC boasts a German-made Kontron mini-STX motherboard and cutting-edge features that redefine performance in industrial computing.

Key Features

Processor Prowess:

Unleash the potential with processor options, including the Intel® Core® i3 N305 Octa-Core. Operating at 1.8/3.8/3 GHz (Base Frequency / 1 core Turbo / Multi-core Turbo), it outshines the 9th Gen Core i5-9500, ensuring top-notch performance.

Memory Marvel:

Experience the speed of DDR5 RAM, providing the necessary horsepower for seamless multitasking and data handling.

Adaptability to Extreme Conditions:

Operate with confidence in a wide temperature range, from -10°C to +60°C, with storage capabilities ranging from -25°C to +70°C.

Connectivity Hub:

Connect without limits with 2 Display Ports, 2 LANs, 5 USBs, and a versatile USB-C with DPoC for connecting to Full-HD displays.

Audio Excellence:

Enjoy crystal-clear audio with Audio In/Out, including microphone function, delivering an immersive media experience.

Secure and Robust:

Built-in WiFi 5 or 6, optional RS232/422/485, and integrated Intel® TPM V2.0 security ensure a secure and robust computing environment.

Motherboard Features

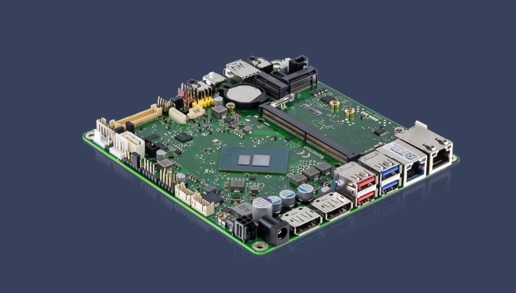

Designed and manufactured in Germany, the industrial Mini-STX motherboard K3921-N is based on the latest Intel® Core™ i3 and Intel® Processors series (Alder Lake N) with powerful UHD Gen12 graphics using Intel® Xe architecture. It features two DisplayPorts, one DisplayPort via front USB-Type-C, plus onboard connectors for Embedded DisplayPort and Dual-Channel 24bit LVDS panels. Supports three independent displays with up to 4K display resolution (2x 4K + 1x FHD) and DDR5 RAM. The K3921-N is equipped with two M.2 (Storage and Wifi) connectors, and in addition to this offers many other connectivity options like GPIO, two COM ports and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and operating temperature range up to 60 °C.

Processor Options from Intel® Alder Lake N Series:

· Intel® Processor N50 (2C/6W)

· Intel® Processor N97 (4C/12W)

· Intel® Processor N200 (4C/6W)

· Intel® Core™ i3 N305 (8C/15W)

SBC Data Sheet

Discover with Impact Components

Discover a new era in industrial computing with Impact Components. Our Mini-PC is not just a device; it's a solution that empowers your operations with unmatched performance, reliability, and security. Explore the future of industrial computing with us!
