Systemair Geniox+ DOAS Unit Now Available with Full Integration to any VRF System

Ideal for Passive House Projects

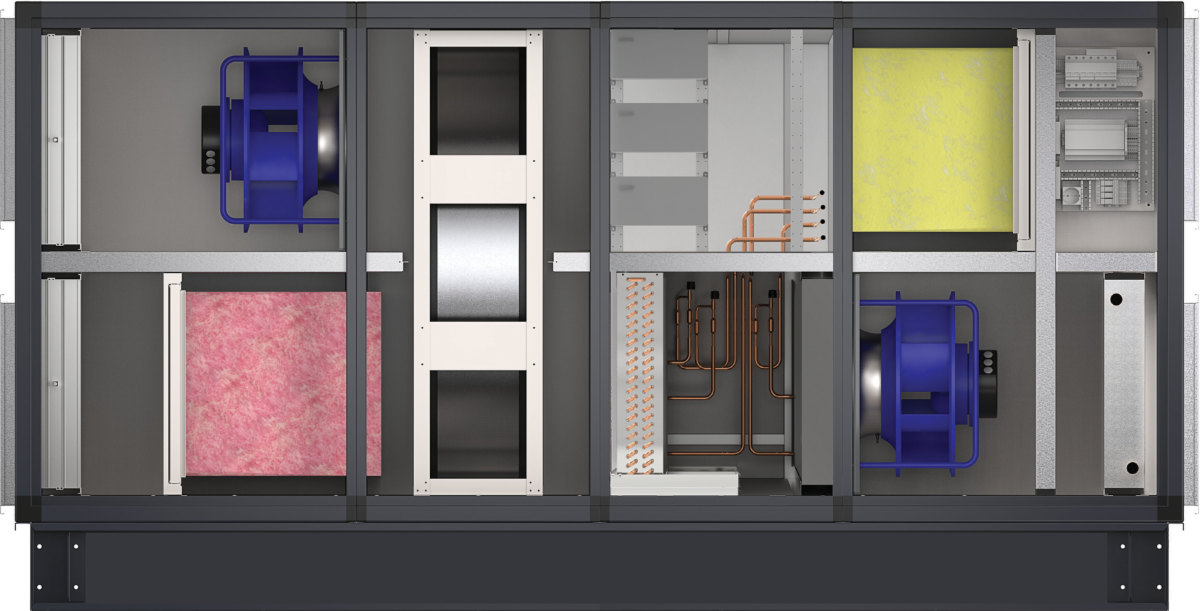

The Systemair Geniox+ is a fully customizable, high-quality, modular air handling unit that can fully integrate with third-party VRF coils and controls (Carrier/Toshiba, LG, Daikin, Mitsubishi, and Samsung) to meet the new energy code requirements (IECC 2021, ASHRAE 90.1 2019, MA Stretch Energy Code). Factory coordination and custom in-house controls integration ensures a seamless integration and less field time.

Geniox+

Fully customizable and modular air handling unit that can integrate into any VRF system

Specs

• Can Handle Airflows up to 27,000 CFM
• Integrated VRF Module, Controls and Coil - factory installed and piped
• Double Wall Foam Injected Panels
• Energy Recovery Options include: 3A Enthalpy Wheel, Counter Flow Core, Run-Around Coil

+ Product Information Sheet

+ Specification

Changeair Decentralized Air Handlers for Classrooms

Self-Contained Air Sourced Heat Pumps for Classrooms

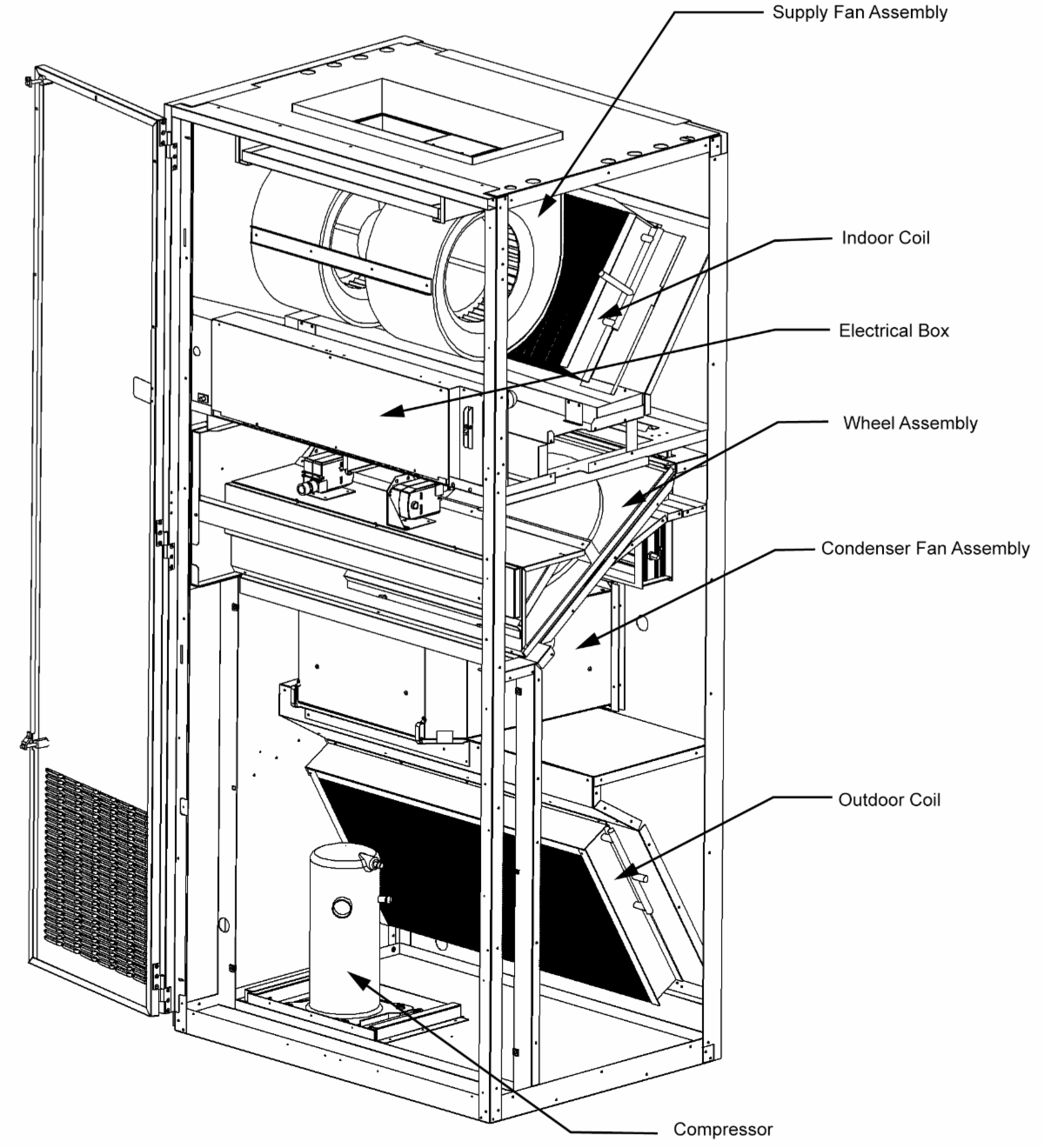

Sophomore Cabinet Detail

Sophomore

The Sophomore is a decentralized self-contained packaged classroom unit with an air-source heat pump or packaged AC. The units can be configured with electric heating elements (coils), hydronic hot water, steam or high-efficiency gas.

The Sophomore tested in an accredited AMCA reverberant laboratory and meets NC-35 for sound performance.

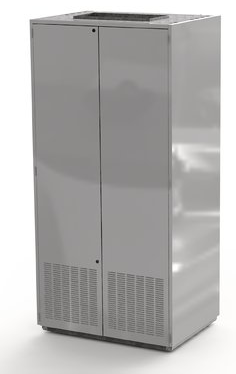

Freshman

The Freshman series classroom unit ventilators are flexible non-packaged units (no compressor) that allow for greater design options and cabinet choices.

The Freshman classroom unit is intelligently quiet and bear the AMCA label for sound making NC-30 classrooms a reality.

Freshman Cabinet

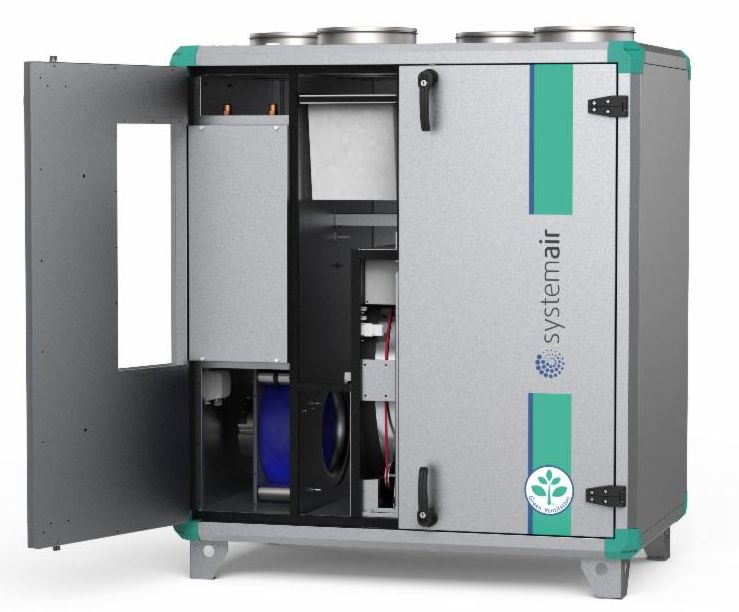

Topvex

Compact ERV

Specs

• Up to 4,000 CFM
• Small Footprint, Can Easily Fit Between Doorways
• Heat exchangers with low pressure drop and high heat recovery
• EC fans with high efficiency and low energy consumption
• Proper filtration ensures good indoor air quality

+ Sell Sheet

+ Specification
