Announcing the latest additions to Qorvo's innovative RF and power portfolio of CATV power doublers, GaN power amplifiers and Wi-Fi FEMs and filters, which serve a wide range of broadband, satellite communications (SATCOM), IoT and Wi-Fi applications. These high-performance solutions simplify RF and power for designers worldwide and are available at Qorvo's authorized channel partners. | | |
QPA3316
45 MHz - 1794 MHz, 34V, 18W, 23dB Gain High Output Power Doubler CATV Hybrid
| | |
Features
- 23dB gain at 1794MHz
- Super high output capability
- 550mA at 34V
- Current adjust pin
| | |
- DOCSIS 4.0 compliant
- SOT-115J package
- Ideal for DOCSIS optical nodes and CATV test equipment
| | | |
QPA1724D
17.3 - 21.2 GHz 20 Watt GaN Power Amplifier
| | |
Features
- 17.3 - 21.2GHz
- PSAT: 43dBm
- PAE: 30%
Additional Information:
QPA1724D
| | |
- Small signal gain: 25dB
- 4.94x3.33mm die
- Ideal for satellite communications
| | | |
QPF7607
6 GHz Wi-Fi 7 Non-Linear High Power Front End Module
| | |
Features
-
POUT: +17dBm MCS13 EHT320 ‑43dB dynamic EVM
-
POUT: +25dBm MCS0 HT20 spectral mask compliance
- 29dB Tx gain
- 3.8/5dB noise figure
| | |
- 12/2dB Rx gain & 9dB bypass loss
- 5x3mm laminate package
- Ideal for access points, wireless routers, set top boxes, customer premise equipment and Internet of Things
| | | |
QPF4702
5 - 7 GHz Wi-Fi 7 Medium Power Non-linear Front End Module
| | |
Features
- 5170 - 7125MHz
-
PSAT: +29dBm
- Corrected DEVM
-
POUT: +18dBm MCS13 EHT320 -43dB dynamic EVM
-
POUT: +24dBm MCS0 HT/HE20 spectral mask compliance
| | |
- DC power: 0.72W at 17dBm & 1.2W at 24dBm
- 5x3mm laminate package
- Ideal for access points, wireless routers, residential gateways, customer premise equipment and Internet of Things
| | | |
QPQ5604
6 GHz Wi-Fi U-NII 5-8 bandBoost Filter
| | |
Features
- 5945 - 7125MHz
- Low insertion loss in Wi-Fi UNII 5-8 bands
- High rejection in Wi-Fi UNII 1-3 bands
- Extended temperature performance from -20 to +95°C
- Integrated match
| | |
- High power handling to +28dBm averaged input power
- 1.8x1.6mm laminate package
- Ideal for access points, wireless routers, residential gateways, customer premise equipment and Internet of Things
| | | Featured Resources & Promotions | | |
The Portable Revolution: Qorvo Powers the Shift to Smarter, Battery-Driven Systems
At IUT Blagnac, Qorvo UWB solutions are enabling students, researchers and startups to explore the technology through hands-on labs, smart home test beds and immersive training — bridging theory and practice to empower the next generation of technology innovators.
Read the Blog Post
| | |

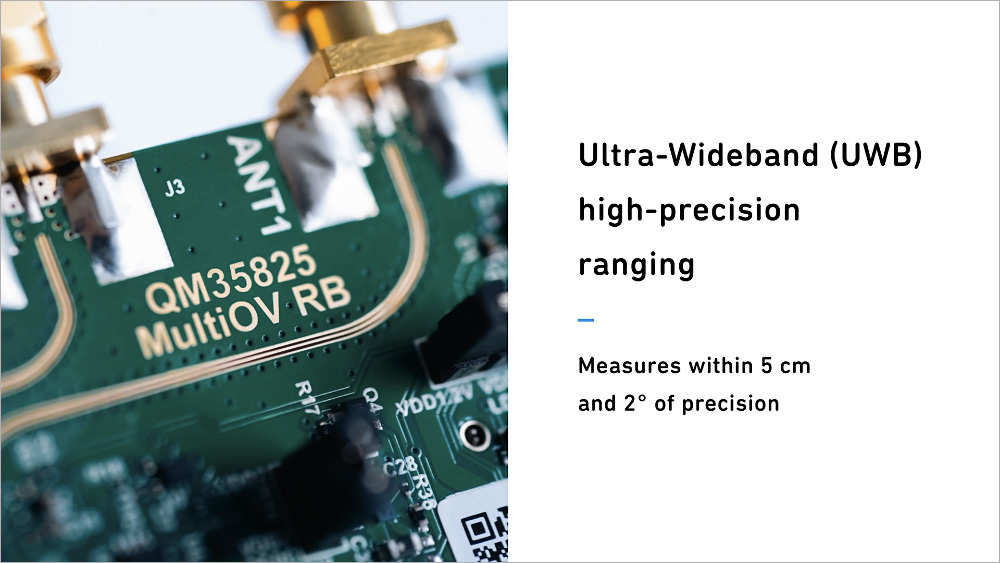

Inside the Box: Qorvo’s QM35825 UWB Dev Kit for Precision Location & Sensing
Get a first look at the QM35825 Development Kit, designed to help developers evaluate Qorvo’s high-performance UWB System-on-Chip (SoC) for real-time location and radar sensing applications.
Watch the Video
| | Game Changer: How UWB and Qorvo Are Powering the Future of Youth Sports | | |
Thanks to a creative collaboration between Finland-based Noccela and Qorvo, UWB is making an impact in a very different setting — on soccer fields where tomorrow’s athletes are training today.
Check out sophisticated, real-time player tracking and performance data in a setting where it’s rarely been available before — youth sports. Rather than targeting elite professional teams, Noccela’s technology is designed to support coaches working with teenage players.
Read the Blog Post
| | |
Qorvo Broadband Access, CATV & FTTH Product Selection Guide
Explore Qorvo’s portfolio for HFC headend, CMTS, optical nodes and distributed architecture supporting DOCSIS standards in various configurations like fiber deep, node split, remote PHY, full duplex, and extended spectrum DOCSIS.
View the Brochure
| | |
Featured News: Qorvo Earns Raytheon’s Premier Award
Raytheon, an RTX business, recognized Qorvo with its Premier Award for performance and overall excellence in Technology & Innovation as well as Collaboration & Customer Service. This is the fourth consecutive year Qorvo has been honored with the prestigious Premier Award.
Read the Press Release
| | | | |
