Clayton Control is Ready to Support You
We can work with you remotely, without feeling remote
Using Microsoft Teams as the hub for our team collaboration, any member of our engineering, sales or support team can integrate the people, content, and tools needed to support you remotely.

We invite you to contact us and let’s work together - remotely.
Electric Gripper for Small Components
EGI with active gripping force and PROFINET-IRT inerface
The EGI Gripper was specifically designed for challenging and diverse handling tasks in electronics, pharmaceutical and laboratory applications. Individually programmable stroke of up to 57.5 mm per jaw and adjustable gripping force of up to 100 N. Due to the integrated web server, convenient commissioning assistants, active gripping force maintenance, and the certified category C PROFINET interface, the 24 V gripper for small components is one of the most convenient mechatronic grippers on the market.

  • 24V technology
  • PROFINET interface
  • Individually programmable stroke
  • Convenient commissioning
  • Active gripping force maintenance
  • Flexibly adjustable gripping force
Ultra-Compact 3 Way Solenoid Valves
For lighter, smaller devices and equipment
Created especially for the Life Science and Semiconductor industry, Koganei offers the 005 Series, the  smallest solenoid valve in the world.

  • Micro 3-Port Solenoid Valve
  • Compact – 5.9 mm width, 4.5 grams weight
  • Lower power consumption – .5W power consumption
  • Long life – 10 million continuous life cycle
  • Low Leakage – Standard lead 3.0cc/min & low leak .1cc/min @102 psig 4.5 gram
  • Operating pressure 0-102 PSI
  • Flow: Cv= 0.006
  • Barb fitting for 1/8" or 5/32" ID tubing
STF Stepper Drive
Advanced microstepping drive with multiple fieldbus options
 STF Stepper Drives  are designed for optimal open-loop step motor performance and compatibility with industrial Ethernet or fieldbus protocol.

These stepper drives with advanced current control, STF Stepper Drives utilize an anti-resonance algorithm to optimize the torque and speed performance of the step motor. This translates to higher acceleration and deceleration rates, higher speeds, faster machine cycles, and ultimately greater throughput for your machine or process.

Supported Network Protocols:
  • EtherNet/IP
  • Modbus
  • EtherCAT
  • CANopen
Piab logo

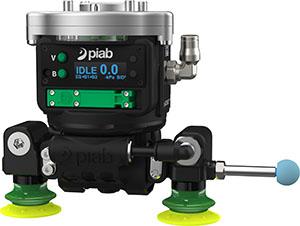

piCOBOT Advanced Gripping Solution
Vacuum end-of-arm-tool
 Piab’s cleverly designed vacuum operated  end-of-arm-tool (EOAT) piCOBOT®   is now available with a generic electrical interface as well as several options for mechanical mounting plate dimensions in accordance with the ISO 9409-1 standard, enabling it to be configured to work with any collaborative robot and smaller industrial robots.

  • Certified Universal Robots compatibility
  • Highly efficient COAX® vacuum technology
  • Plug-and-play extensions to cobots ensures safe human-robot interaction
  • Utilizes Piab’s extensive range of suction cups
