Runkle Consulting Inc.
February 5,2018

Our Latest...
I didn't realize how long it's been since we last put out a newsletter.  We've been rather (extremely) busy and a lot has happened.  The main thing is we are changing our name.  Our e-mail addresses will change, but our present e-mail addresses will stay valid.   I'll cover that in this newsletter along with the US and the Metric system.

We expect the name change will be through this week.  Our new e-mail addresses will only change the domain, so I will be "georger@runcon.biz", Joshua will be "joshuaw@runcon.biz", and AJ will be "AJ@runcon.biz".  Phone number will stay the same of course.

Have a great week!

George
George W. Runkle III, MS, PE, PEng
President, Runkle Consulting, Inc.


The inspiration for our name change.
No More Runkle Consulting

Since the last newsletter a lot has happened.  This will be our last Runkle Consulting, Inc. newsletter because we are changing our name to RUNCON.   I haven't liked the name of the company for a while because I am not the only person here.   However, finding a good name isn't so easy.  I didn't want a totally generic name that would not distinguish us from others.  The name also had to sound good, have at least one hard consonant, and preferably be two syllables.

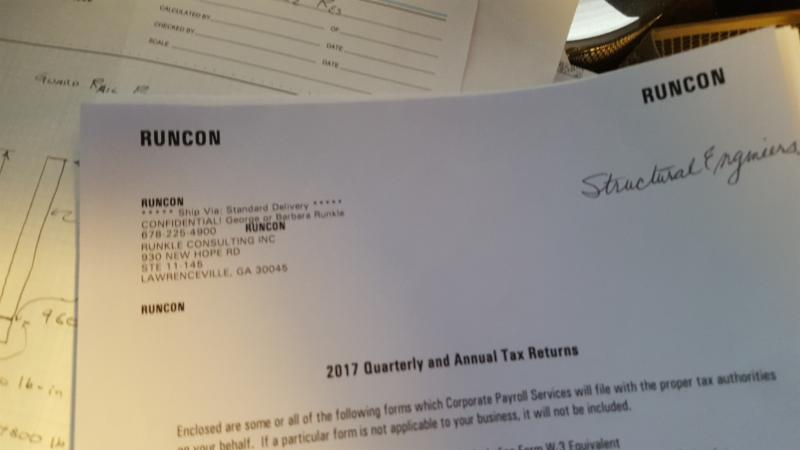

RUNCON is simple, easy to remember, and comes off as leaning forward.  The name will have no logo, just block letters in a simple font of capital letters.  How did we come up with it? By accident.  Joshua was in my office and was looking at the cover page of our payroll report.  Our user name for our payroll service is "RUNCON".  He said,"that's a good name, isn't it?".  Everybody agreed.  After about 15 minutes of discussion it was unanimous.

The change takes place as immediately as possible, our attorney says it should be through the Georgia Department of State this week.   We then have to notify other states where we are licensed, but once Georgia approves it, the name change is official.

In other news, we are doing a lot of design work of buildings made from shipping containers.  We are working on three at this very moment.  Due to the type of construction, the calculations are rather complex.  One of the buildings we are working on requires about two hours to run the complete calculations on our computer model.  That doesn't count all the work we did to develop the seismic and wind loads to put in the model.  It also doesn't include the preliminary calculations we did by hand to size things approximately to save a bit of time.

We'll cover some of our container projects in the next newsletter.
THE UNITED STATES AND THE METRIC SYSTEM
We're of the last three countries in the world not using the Metric System, or are we?

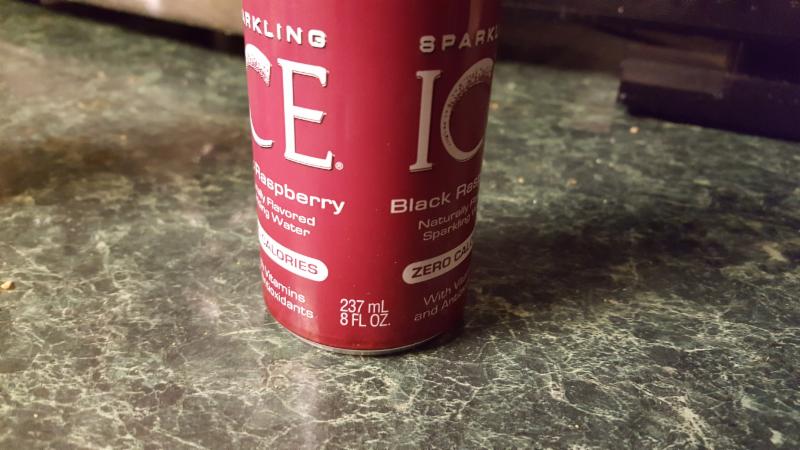

OK most people will say this is an 8 OZ can rather than 237 ML but you have a choice.

One of the things we can expect to read in the news media with regularity is how we are only one of three countries that haven't adapted the Metric system (the others are Liberia and Myanmar, the list varies depending on what you are reading).  It fits in the narrative of "Backwards Americans, go to the Moon, but the still _____."  I know it makes a good story, but I hate to bring this up, the Mass Media is not always right.

I know we buy gasoline in gallons, we travel in miles per hour, and measure our temperature in Fahrenheit.  How many cubic inches is the displacement of your car engine?  If you don't know, go out and open your hood and look, I'll wait.  It's usually right on top of the engine...  Oh, it's not in cubic inches, is it?  It's in Liters.  If you try to work on your engine, you will find it a bit difficult to use that old socket wrench set your father gave you because the Imperial measurements of the sockets won't work too well.  Your car engine is in Metric.  Look at your tires, they are in Metric and Imperial.  The sizing of the tire in in Metric, the rim size in Imperial.  Your speedometer is in Miles per Hour and Kilometers per Hour.

All of our scientific and medical measurements are in Metric.  Let's look in the grocery store.  You may have bought a 2 Liter bottle of Coke recently.  Maybe you got 12 ounce cans, but notice they are also labeled as 355 Millileters.  Notice all of your packaged foods are labeled in both Imperial and Metric measurements.  So, depending on your preference, your groceries can be Metric or Imperial.  When I was in the Army, we used maps with elevations in Meters and distances in "Clicks", which are Kilometers.  Almost all of our measurements in the US military are in Metric.

What about construction?  Our building codes are now in what we call "soft Metric".  The measurements are given in Imperial and either a conversion factor is provided or the Metric equivalent is given in parenthesis.  The problem with going over to Metric in buildings is we have legacy measurements from existing buildings.  How do you add onto a building with 12" walls, 8" block, 6" beams with materials made in different measurements?  It's not easy, and you get odd measurements.  Canada calls out 38mm x 89mm wall studs in its building codes, which is a complex way to call out 2x4's.  If you are working in Canada, you will find in day to day usage people refer to building measurements in Imperial.  It's easier than using the odd numbers you get converting directly to Metric.

In one design I did in Canada I was given the floor and snow loads in Kilo Pascals (KPa), and I did the design.  I then passed over the foundation loads in Kilo Newtons to the Canadian foundation engineer, who asked me to translate them to Pounds.  In one memorable visit, we were looking at a house with 14" floor joists, but the basement was something like 2 1/2 meters deep and it was 10 degrees Celsius outside.  At least we weren't in Britain where the distance to the City center would be in miles, and my weight would be in Stone.

So, the press does seem to miss that Imperial measurements are still used to some extent in Britain (where highway speeds are posted in Miles per Hour) and Canada.  I suspect other countries that were formerly in the British Empire do the same, you have legacy measurements that you can't give up so easily.

Now the metric system isn't really new to the US.  At the time of our founding the decision was made to go with Imperial, and our measurements were based on specimens held in Britain.  However, we did start inching toward metric fairly early (pun intended).  In 1866 the Metric Act was passed, and in 1893 the Meldenhall Order was issued, which bases all of our measurements off international Metric units (called SI units today).  So, our inch is officially 25.4 millimeters.  Over the years we've worked our way towards adoption Millimeter by Millimeter, but total conversion will be very difficult because of what has already been built and of course habit.

Those of you who live in the more advanced countries are often confused as to why Imperial measurements are not based on 10, and you have to deal with feet, inches, pounds, ounces, and more archaic things like hog's heads, barrels of petroleum, rods and perches for surveying...  The answer actually makes sense, and no, the measurement system was not invented by someone who was drinking heavily.

The reason the measurement system is in such odd units is to make calculations easier.  An Acre is 43,560 Square Feet.  When George Washington went out surveying, he used a chain to measure, which was 66 feet long.  This is a Perch.  A Perch squared is 4,356 square feet.  So, ten square Perches is an Acre.  If we have a gallon, that is 128 ounces.  Divide it by 16 and you get 16 cups.  Each cup is an even 8 ounces.  Divide the gallon by 8 and you get 8 pints, each is 16 ounces.  You are able to divide up a gallon into numerous fractions and keep whole numbers.  The same happens with a foot - you divide it by 6 and you get 2 inches, 3 you get 4 inches, and so on - again it can be divided by many numbers and you keep your whole numbers.

The other reason is Imperial Units are a collection of units that have developed over thousands of years, like the Foot, which comes from Roman measurements, which is based on (surprise) a human foot.  An Inch comes from 3 grains of barley.  A Yard is a British measurement that goes back about a 1000 years but was formalized under King Henry I.  An Acre is from the amount of land a horse can plow in a day.  A Barrel of gasoline is 42 gallons, which was the size of a wooden herring barrel, which was used to carry petroleum products in sailing ship days.  This leads to an amalgamation of confusing units, many of which have fallen out of use.  I'm not aware of anyone getting a Gill of whiskey here in the US.  We did have 2 Rod roads in New Jersey, which are 32 Foot wide cartways (a Rod is 16 1/2 feet and is a 1/4 of a Perch).

When the Metric System was developed, the entire system was developed at once, which makes it much more rational.  However, some older units are accepted into the Metric System (which is officially "SI" units, such as Nautical Mile, and Feet for flight level, so it is still somewhat confusing.

So, it's not really true that the US is clinging to a backwards measurement system out of step with the entire world.  In many ways we're there with everybody else, although we have to go a bit more.  True, it's been rather slow since we started over 150 years ago on the conversion process, but we're getting there.

George


George Runkle, MS, PE
678-225-4900

Keep us in mind for your structural engineering needs.

Give us a call today!
