Advanced Cooling for 3U and 6U Systems




Most front-to-rear cooled chassis platforms have tube-axial fans in the rear of the enclosure, pulling the air in an S-pattern.  The typical CFM in this approach is about 80 per fan and can cool about 110W per slot at max speeds.  This could be effective for many of the medium power OpenVPX and other applications.  However, if you have multiple boards over 115W each, you may need another approach.

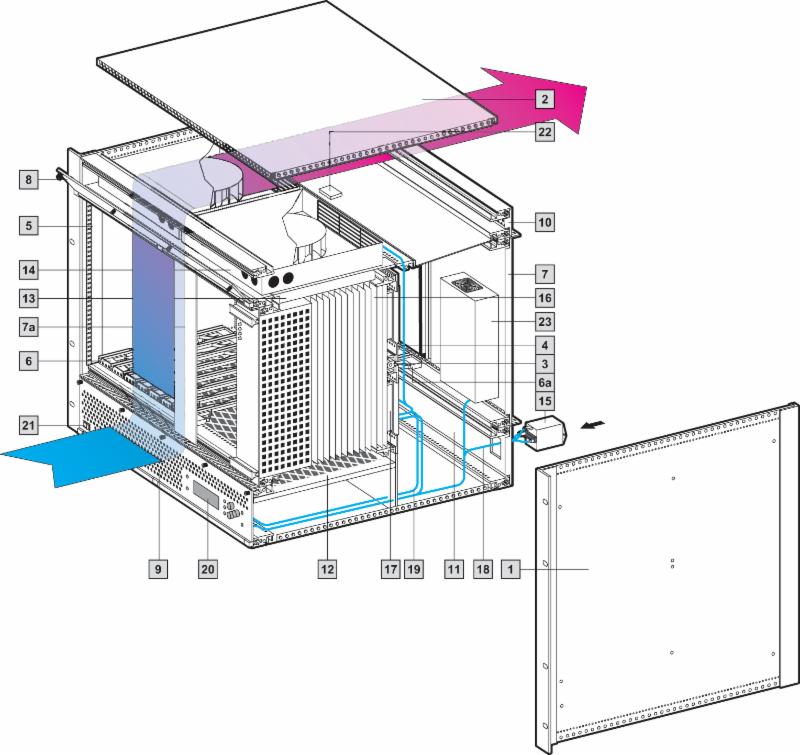

Another design technique is using powerful air-pulling RiCool fans placed directly above the boards in the card cage.   With fans that pull in one axis (to the top of the chassis) and blow the air out in another axis (through the rear of the chassis), the air bends to reach the fans are cut in half.    This patented reverse-impeller configuration reduces the backflow of the air and the backpressure that hampers performance.

 The reverse impeller approach creates up to 191 CFM per fan and 3.6" (H20) of static pressure.  By comparison, the tube-axial approach generates only about 0.22"-0.40" (H20) of static pressure.

The standard tube-axial cooling configuration is effective in most embedded system applications.  However, for high-power systems, as many OpenVPX applications are trending, having powerful and hot-swappable RiCool reverse-impeller blowers is an excellent option.

Contact Pixus today to discuss your application.

New Products/Features

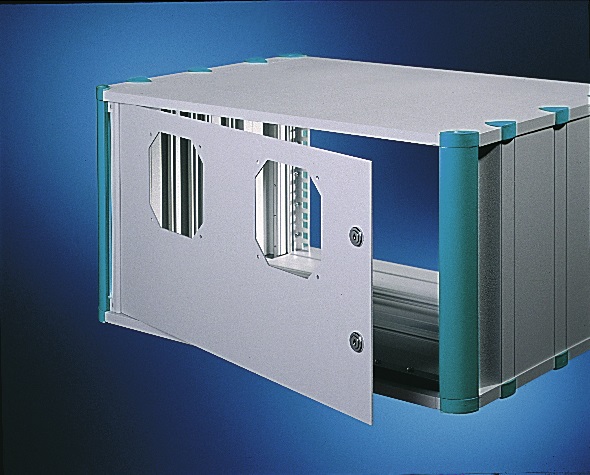

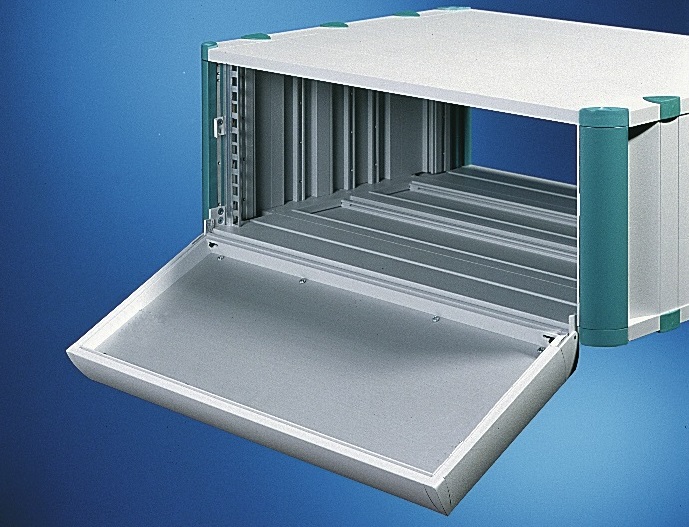

Multiple Front and Rear Door Options for Instrumentation Cases

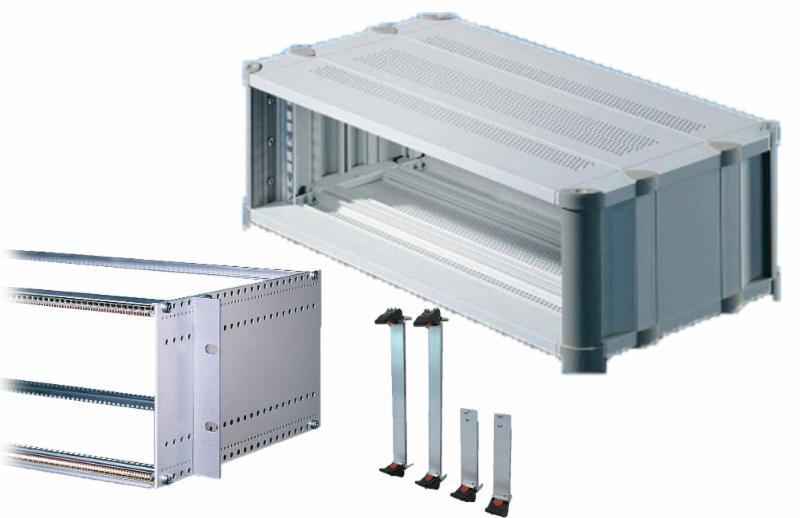

Pixus offers several front and rear door options for our Rittal brand Vario cases and RiCase solutions.  This includes hinged side swinging doors, doors with fan cutout, keyboard tray doors, lockable options, glass/acrylic options, and more.

Customization is also available including custom cutouts, silkscreening, and painting/powder coating.
Component Corner

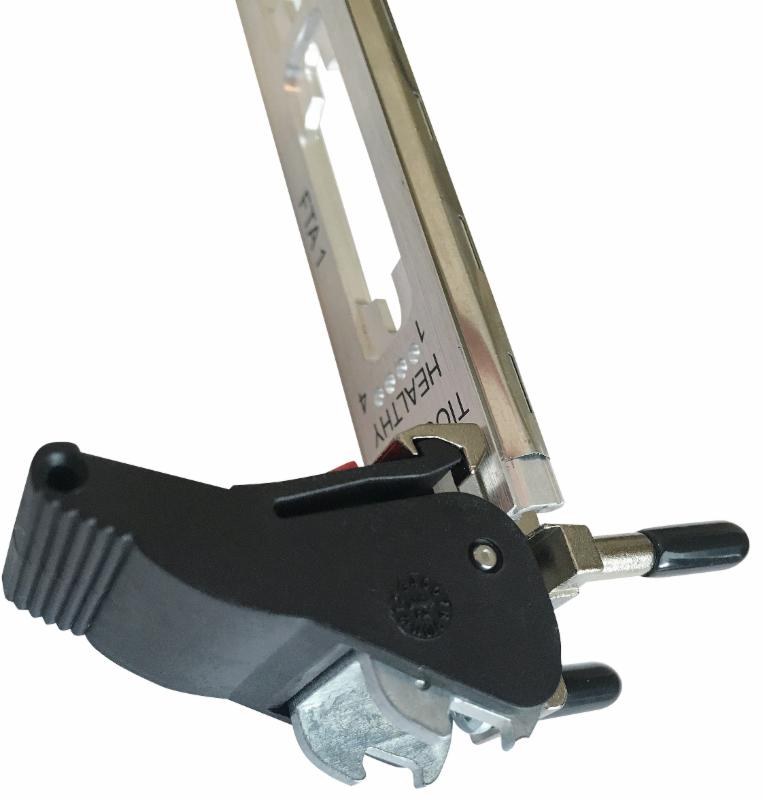

Samples Available for Rugged Handles/Panels



Pixus now offers free samples to qualified registrants for our rugged handles that feature our famous metal "claw".   While plastic claws wear down or snap under high insertion force pressure, the rugged claws are reliable and long-lasting.  Pixus also offers custom panel cutouts, silk-screening, and more.  Contact Pixus for your sample today!
