Spring 2017  Vol. 26, No. 2
PipeLine Masthead
_________________________________

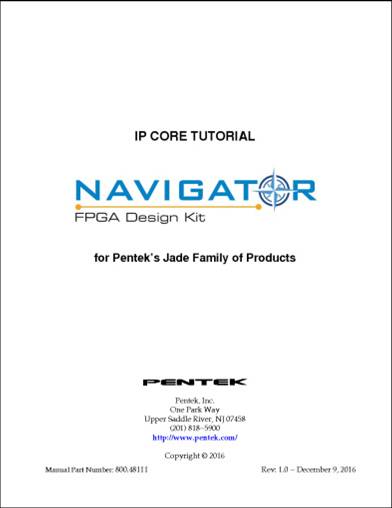

Learn More about AXI4, Xilinx's IP Integrator & Pentek's
Navigator FDK!

The Navigator FPGA Design Kit's plug-and-play
compatibility depends on IP cores following
the industry standard AXI4 interface
specification.This 100-page
guide introduces the AXI4 interface and
how it's used in Navigator and IP design. It
also includes a complete learning lab to
follow in Vivado that shows how to create
a new core that is immediately compatible
with Xilinx and Pentek IP.

To get this tutorial, contact Mario
Schiavone at 201-818-5900 or

_________________________________
TECHNICAL HANDBOOKS:

Download Button

Pentek Transceiver Provides the SDR Interface for the NeXtRAD Multistatic Radar System

NeXtRAD is a dual-band, dual-polarization,multistatic radar system under development at the University of Cape Town (UCT) in collaboration with University College London (UCL). The primary mission of the system is to collect multistatic data of small radar cross-section maritime targets embedded in sea clutter.
pipelinespringdaneimage

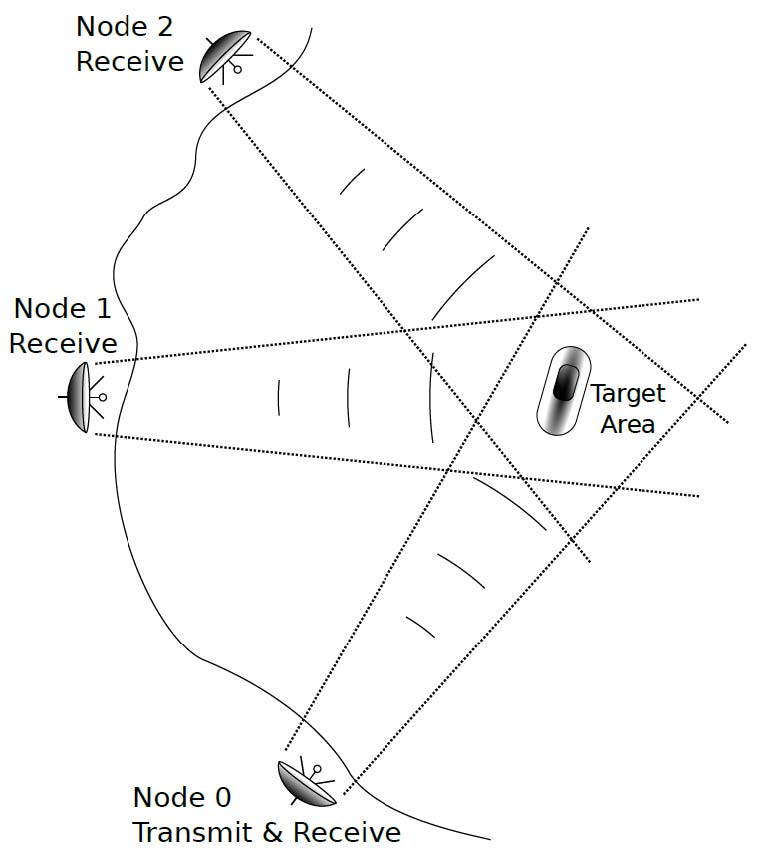

Typical Deployment Configuration of NeXtRAD

Pentek's Cobalt® Model 71621 transceiver was identified as a suitable software-defined radio interface for the system. This article presents the early stages of the development of NeXtRAD, which uses Pentek's Model 71621 module as the digital transceiver of the system in a monostatic configuration.

NeXtRAD System Overview
The active node of the NeXtRAD multistatic system consists of the following:
  • Software-defined radio (SDR) interface
  • Radio frequency (RF) receiver and transmitter
  • FPGA-based timing control unit (TCU)
  • High-power amplifier
 pipelinesspring 2017 dane

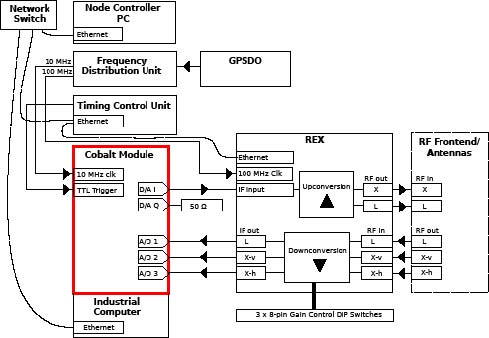

System Block Diagram of the Transmitting Node of NeXtRAD

DOWNLOAD PDF of Pentek Pipeline Newsletter
_________________________________
Product Focus

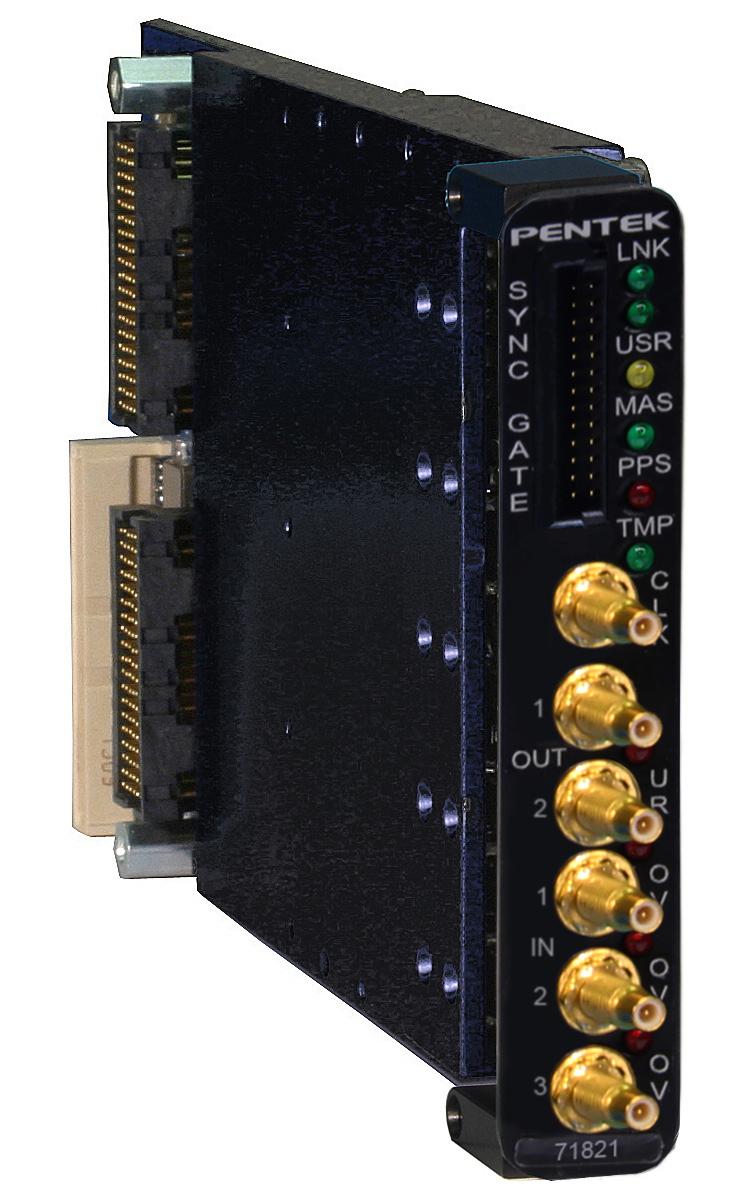

Model 71821
3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Kintex UltraScale - XMC
  • Ideal software radio interface
  • Includes three programmable multiband DDCs and a DUC
  • Supports multiboard synchronization
  • Navigator Design Suite expedites development and custom IP integration
  • Available in PCIe, 3U & 6U VPX, 3U & 6U cPCI, AMC
with DDC & 2-Ch 800 MHz D/A with DUC, Kintex UltraScale - XMC
  • Ideal radar interface
  • Includes three programmable multiband DDCs and a DUC
  • Built in 5 GB of FAST DDR4 SDRAM supports digital RF memory application
  • Ruggedized and conduction-cooled versions available

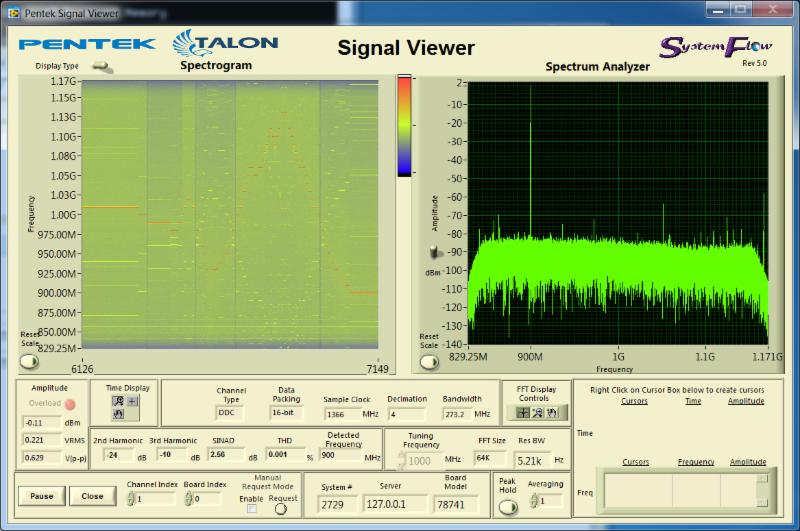

talon logo no text systemflow for talon recorders
Touts New Features and Enhancements

  • Ease-of-Use Features and Capability Improvements
  • Targeted Recording Modes
    GPS functions for Target Triangulation and Time Stamping
  • Data Security Measures
For the latest
pricing and availability information, please contact:
Mario Schiavone at 201-818-5900
email: mario@pentek.com
_________________________________

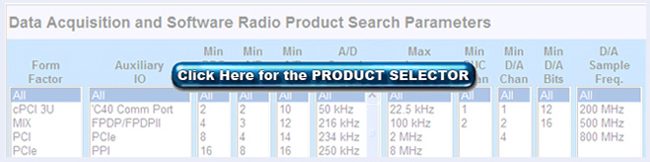

Use the Product Selector to narrow down
your product search
data acquisition & software radio product selector
