THE MOST STAINLESS STEEL ELECTRICAL CONDUIT SOLUTIONS

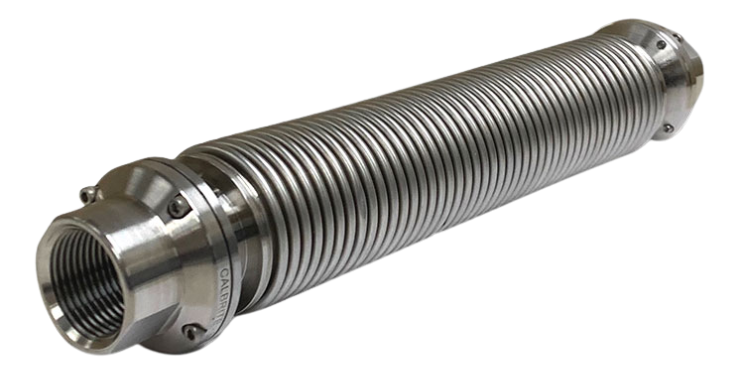

Expansion/Deflection Fittings couple two sections of Conduit in applications that are subject to movement, expansion, contraction, deflection or angular / parallel misalignment. Ideal for long conduit runs, and provide excellent resistance to damage and corrosion.
Key Features:
  • Manufactured in type 316 stainless steel to meet any stringent sanitary condition
  • One piece compact design

Certifications and Compliances:
  • UL Verified:
  • Expansion travel for the fitting is verified to be 1.5"
  • Offset deflection was verified for a total distance of 1.5"
  • Angular misalignment was verified to 90 degrees allowing the fitting to be used as an elbow anywhere from 30-90 degrees
Key Applications
Calbrite's Expansion/Deflection Fittings couple two sections of conduit in transportation and infrastructure applications that are subject to movement, expansion, contraction, deflection or angular/parallel misalignment. Ideal for roads and bridges, long conduit runs, and provide excellent resistance to damage and corrosion. The ground connection is maintained without the need for an external bonding jumper.
Resources
For more information, or to see Calbrite's full list of products, please visit calbrite.com
