Featured Products

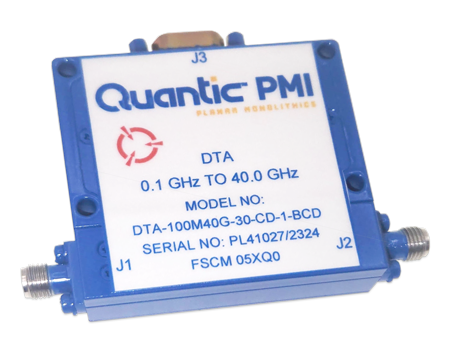

BCD Control Programmable Attenuator

DTA-100M40G-30-CD-1-BCD

Frequency Range of 0.1 to 40.0 GHz
Mean Attenuation Range of 30.2 dB
Insertion Loss of 5.26 dB
VSWR of 2.45:1
Accuracy of Attenuation of ±0.2 dB
Minimum Attenuation Step of 0.94 dB
Power Handling Capability of +24 dBm
2.92 mm Female Connectors
Housing of 2.00" x 1.80" x 0.25"

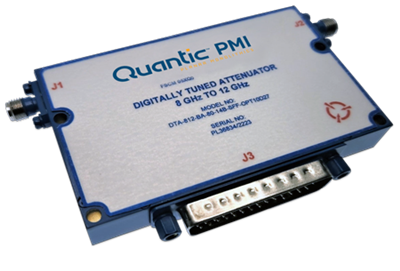

Digitally Tuned Attenuator

DTA-812-BA-80-14B-SFF OPT10D27

Frequency Range of 8.0 to 12.0 GHz
VSWR of 1.5:1
Input P1dB Power Level of +28 dBm
Survival Input Power Level of +30 dBm
Insertion Loss of 5.53 dB
Switching Speed of 495 ns
Attenuation Range of 79.31 dB
Attenuation Accuracy of 0.73 dB
SMA Female Connectors
Housing of 3.25" x 2.00" x 0.50"

Digitally Controlled Analog Phase Shifter

PS-500M2G-10B-SFF-MIL-SM

Frequency Range of 0.5 to 2.0 GHz
Insertion Loss of 8 dB
Amplitude Error of ±0.06 dB
Phase Shift Error 0.3°
Switching Speed of 500 ns
Spurious of -60 dBc
SMA Female Connectors
Housing of 3.25" x 3.25" x 0.84"

Analog Pin Diode Attenuator

PVVAN-2040-60-MP

Frequency Range of 2.0 to 4.0 GHz
Mean Attenuation Range of 62.4 dB
Insertion Loss of 1.63 dB
VSWR of 1.56:1
Operating Power of +20 dBm
Attenuation Flatness of ±1.26 dB
Switching Time of 500 ns
SMA Female connectors
Housing of 2.00" x 1.80" x 0.50"

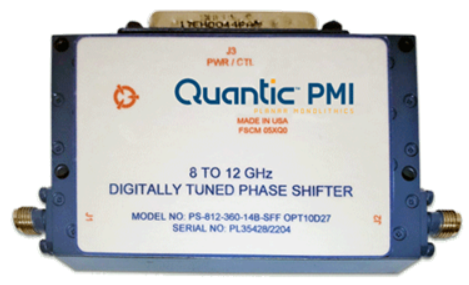

Digitally Tuned Phase Shifter

PS-812-360-14B-SFF OPT10D27

Frequency Range of 8.0 to 12.0 GHz
VSWR of 1.45:1
Input P1dB Power Level of +20 dBm
Survival Input Power Level of +30 dBm
Insertion Loss of 9.8 dB
Switching Speed of 500 ns
Insertion Loss Change Over Phase of ±0.68 dB
Phase Shift Accuracy of 1.62°
SMA Female connectors
Housing of 3.25" x 2.00" x 0.50"

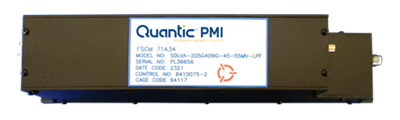

Successive Detection Log Video Amplifier

SDLVA-2D5G4D9G-45-55MV-LPF

Frequency Range of 2.5 to 4.9 GHz
Dynamic Range of -55 to -10 dBm
Input RF Power Handling of +20 dBm
Pulse Width of 100 ns to CW
VSWR of 2.3:1
RF Gain of 52 ± 3 dB
RF Saturated Power of +15 dBm
TSS of -70 dBm
Recovery Time of 50 ns
SMA Female Connectors
Housing of 7.20" x 1.57" x 1.31"

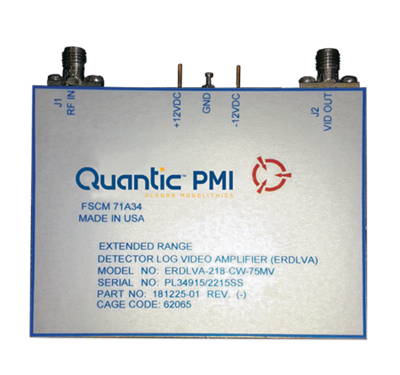

Extended Range Detector Log Video Amplifier

ERDLVA-218-CW-75MV

Frequency Range of 2.0 to 18.0 GHz
VSWR of 1.52:1
Input Power of 23 dBm
Video Out TSS of -42 dBm
Video Out Dynamic Range of -40 to +20 dBm
Video Out DC Offset of 40 mV
Video Out Rise Time of 16.8 ns
SMA Female Connectors
Housing of 2.90" x 2.30" x 0.50"

High Power Limiter

LM-4G18G-100W-15DBM-SMF

Hermetically Sealed
Frequency Range of 4.0 to 18.0 GHz
Isolation of 2.39 dB
VSWR of 1.89:1
Leakage Power of +9.07 dBm
Input Power of +50 dBm
Recovery Time of 100 ns
SMA Male and Female Connectors
Housing of 0.800" x 0.625" x 0.40"

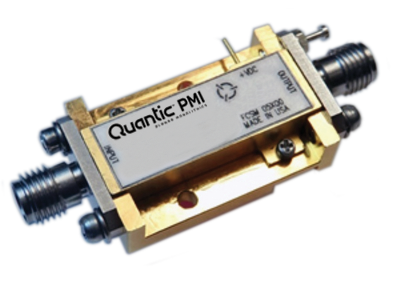

Low Noise Amplifier

PLNA-30-10M20-SFF-DCSMA

Frequency Range of 0.01 to 20.0 GHz
Gain of +28.12 dB
Gain Flatness of ±1.33 dB
Noise Figure of 3.5 dB
OP1dB of +15.1 dBm
VSWR of 1.9:1
SMA Female Connectors
Housing of 1.37" x 1.00" x 0.50"

Low Noise Amplifier

PE2-26-2G18G-5-21-12-SFF-DP

Frequency Range of 2.0 to 18.0 GHz
Nominal Gain of 26.2 dB
Gain Flatness of ±1.1 dB
Noise Figure of 4.1 dB
OP1dB of 23.1 dBm
OIP3 of 31 dBm
VSWR of 1.6:1
SMA Female Connectors
Housing of 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PE2-15-8R012R0-3R0-21-12-SFF

Frequency Range of 8.0 to 12.0 GHz
Gain of 16.1 dB
Gain Flatness of ±0.22 dB
Noise Figure of 3.0 dB
OP1dB of +21 dBm
VSWR of 1.39:1
SMA Female Connectors
Housing of 1.08" x 0.71" x 0.29"

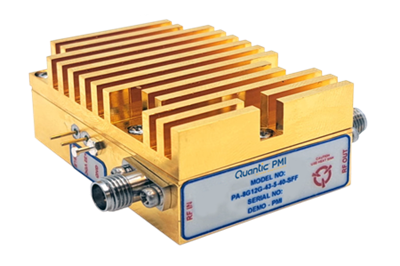

High Power Amplifier

PA-2G18G-43-5-40-SFF

Frequency Range of 2.0 to 18.0 GHz
Gain of 43.17 dB
VSWR of 2.0:1
Noise Figure of 4.91 dB
PSAT of 40.78 dBm
Input Power of 20 dBm
SMA Female Connectors
Housing of 2.00" x 1.50" x 0.88"

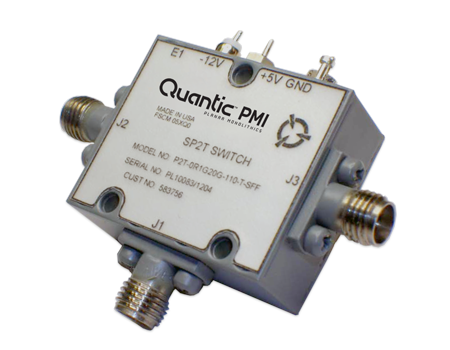

Single Pole, Two Throw, Absorptive Switch

P2T-0R1G20G-110-T-SFF

Frequency Range of 0.1 to 20.0 GHz
Insertion Loss of 4.59 dB
Isolation of 110 dB
VSWR of 1.89:1
Input Power of +20 dBm
Switching Speed of 300 ns
SMA Female Connectors
Housing of 1.20" x 1.00" x 0.50"

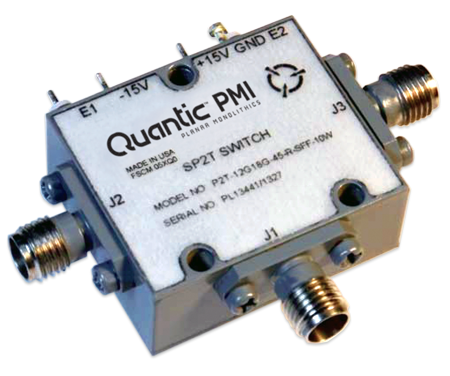

Single Pole, Two Throw, Reflective Switch

P2T-12G18G-45-R-SFF-10W

Frequency Range of 12.0 to 18.0 GHz
Insertion Loss of 1.91 dB
Isolation of 46.38 dB
VSWR of 1.94:1
Rise/Fall Time of 20 ns
Pulse Width of 1 us
Average Power of 10 W
SMA Female Connectors
Housing of 1.20" x 1.00" x 0.50"

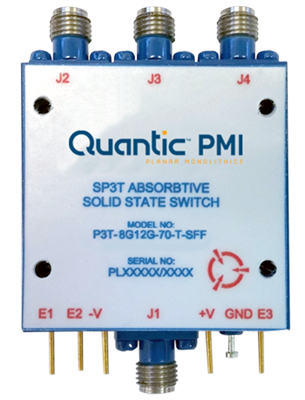

Single Pole, Three Throw, Absorptive Switch

P3T-8G12G-70-T-SFF

Frequency Range of 8.0 to 12.0 GHz
Operating Power of 20 dBm
VSWR of 1.46:1 dB
Insertion Loss of 2.4 dB
Isolation 75.8 dB
Switching Speed of 100 ns
SMA Female Connectors
Housing of 1.50" x 1.50" x 0.40"

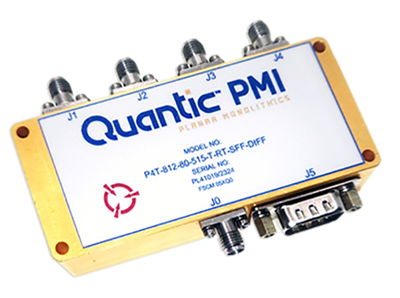

Single Pole, Four Throw, Absorptive Switch

P4T-812-80-515-T-RT-SFF-DIFF

Frequency Range of 8.0 to 12.0 GHz
Insertion Loss of 2.4 dB
Isolation of 89.5 dB
VSWR of 1.25:1
Switching Speed of 50 ns
P1dB of 27 dBm
Operating Power of 20 dBm
SMA Female Connectors
Housing of 3.50" x 1.50" x 0.70"

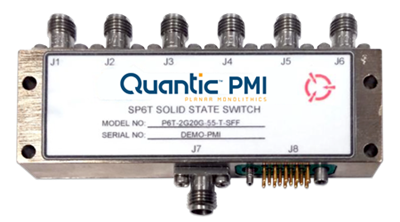

Single Pole, Six Throw, Absorptive Switch

P6T-2G20G-55-T-SFF

Frequency Range of 2.0 to 20.0 GHz
Isolation of 66.6 dB
Insertion Loss of 4.4 dB
Frequency Flatness of 0.5 dB
VSWR of 1.9:1
Operating Input Power of +20 dBm
RF Switching Speed of 30 ns
SMA Female Connectors
Housing of 3.10" x 1.00" x 0.40"

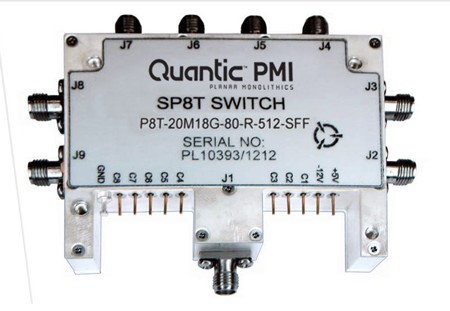

Single Pole, Eight Throw, Reflective Switch

P8T-20M18G-80-R-512-SFF

Frequency Range of 0.012 to 18.0 GHz
Isolation of 81.4 dB
Insertion Loss of 3.6 dB
VSWR of 1.88:1
Input Power of 23 dBm
Switching Speed of 1 us
SMA Female Connectors
Housing of 2.835" x 1.968" x 0.492"

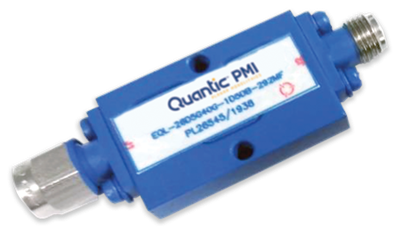

Passive Amplitude Equalizer

EQL-26D5G40G-1D5DB-292MF

Frequency Range of 26.5 to 40.0 GHz
Maximum Input Power of 0.5 W
VSWR of 1.76:1
Insertion Loss of 1.18 dB
Slope of 0.38 dB/GHz
Amplitude Accuracy of 0.28 dB
2.92 mm Male and Female Connectors
Housing of 1.10" x 0.67" x 0.22"

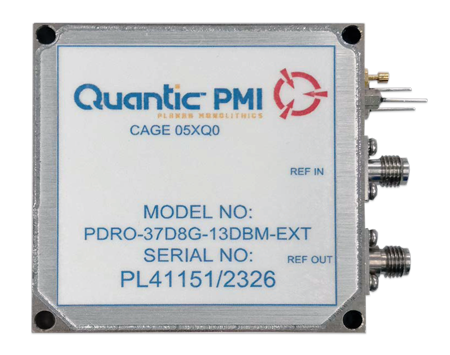

Phase Locked Dielectric Resonator Oscillator

PDRO-37D8G-13DBM-EXT

Hermetically Sealed
Output Frequency of 37.8 GHz
Reference Frequency of 0.1 GHz
Input Level of 3 to 13 dBm
Output Level of 15.6 dBm
Spurious of --55.4 dBc
2.92 mm Female and SMA Female Connectors
Housing of 2.25" x 2.25" x 0.62"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics), a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
