Quantic PMI (Planar Monolithics) Products in Action

Log Video Amplifier

GMDA-D1004

Frequency Range: 2 to 18 GHz

TSS: -65.5 dBm

Log Slope: ±25 mV/dB

Log Linearity: ±1.5 dB

Flatness: 26 mV

RF Safe Input Power: 23 dB

Input VSWR: 2.15:1

Video Rise Time: 30 ns

Recovery Time: 1 µs

Throughput Time: 30 ns

SMA Female Connectors

Housing: 3.5" x 3.2" x 0.5"

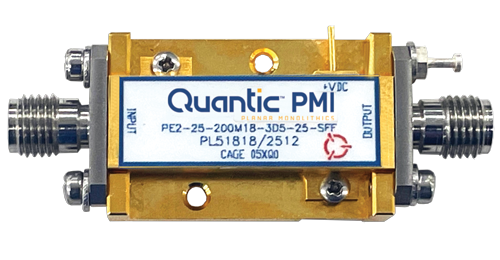

PE2-25-200M18-3D5-25-SFF

Frequency Range: 0.2 to 18 GHz

Gain: 26.39 dB

Gain Flatness: ±1.04

Noise Figure: 4.63 dB

OP1dB: 25.58 dBm

VSWR :1.98:1

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

PEC-36-2G18G-4R5-27-15-SFF

Power Amplifier

Frequency Range: 2 to 18 GHz

Gain: 36 dB

Gain Flatness: 1.5 dB

Noise Figure: 4.5 dB

OP1dB: 27.5 dBm

VSWR: 1.75:1

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.00" x 0.75" x 0.25"

COTS Availability

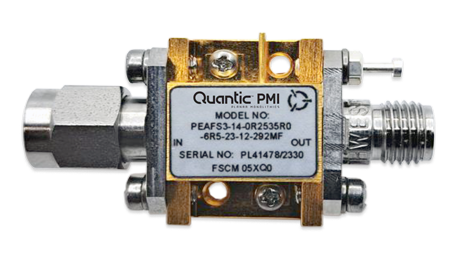

PEAFS3-14-0R2535R0-6R5-23-12-292MF

Frequency Range: 8 to 18 GHz

Gain: 13 dB

Gain Flatness: ±0.36 dB

Noise Figure: 4.56 dB

OP1dB: 26.8 dBm

VSWR: 1.95:1

SMA Male/Female Connectors

Housing: 0.53" x 0.70" x 0.26"

PE2-30-8R018R0-3R5-22-12-SFF

Frequency Range: 8 to 18 GHz

Gain: 34.07 dB

Gain Flatness: ±0.8 dB

Noise Figure: 4.34 dB

OP1dB: 19 dBm

VSWR: 1.9:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

PE2-15-8G20G-4R0-20-SFF

Frequency Range: 8 to 20 GHz

Gain: 15.4 dB

Gain Flatness: ±0.68 dB

VSWR: 1.68:1

Noise Figure: 3.9 dB

Input Power: 17 dBm

OP1dB: 20 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

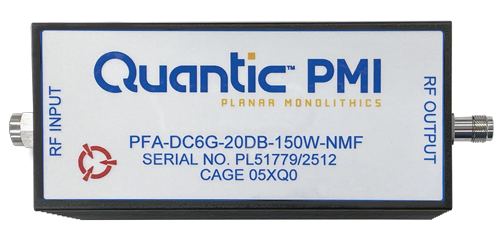

Fixed Attenuator

PFA-DC6G-20DB-150W-NMF

Frequency Range: DC to 6 GHz

Attenuation: 20 dB

Attenuation Accuracy: 0.72

VSWR: 1.15:1

Power Handling: 150 W

TNC Male/Female Connectors

Housing: 7.27" x 2.68" x 2.68"

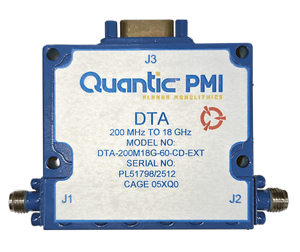

Digital Attenuator

DTA-200M18G-60-CD-EXT

Frequency Range: 0.2 to 18 GHz

RF Operating Input Power Level: 20 dBm

Survival Input Power Level: 1 W

Insertion Loss: 4.6 dB

VSWR: 1.5:1

Attenuation Range: 60 dB

Flatness: 0.52 dB

Accuracy of Attenuation: 0.73 dB

Switching Speed: 0.5 us

SMA Female Connectors

Housing: 2.0" x 1.8" x 0.5"

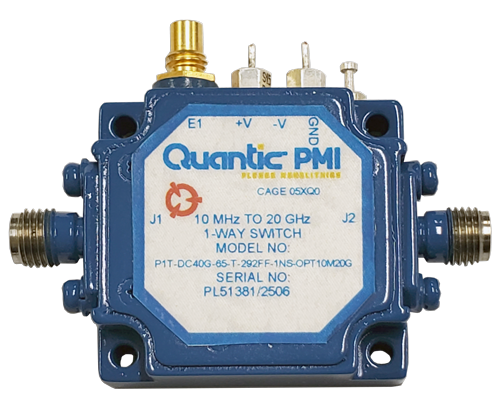

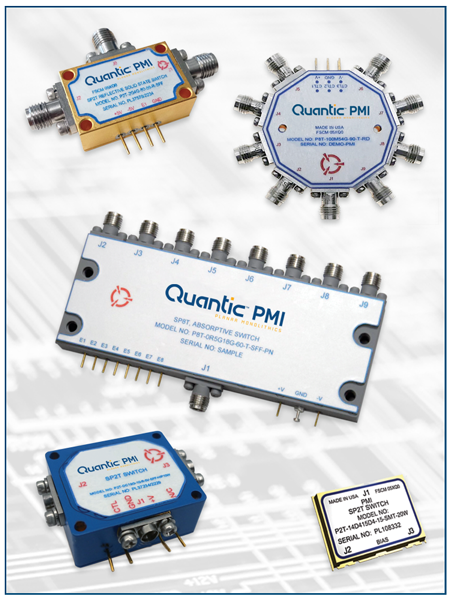

P1T-DC40G-65-T-292FF-1NS-OPT10M20G

SP1T Absorptive Switch

Frequency Range: 10 MHz to 20 GHz

Insertion Loss: 4.17 dB

VSWR: 1.86:1

Isolation: 60.61 dB

Switching Speed: 5.15 ns

Rise/Fall Time: 1.12 ns

Operating Power CW: 17 dBm

SMA Female/Male Connectors

Housing: 1.3" x 1.2" x 0.5"

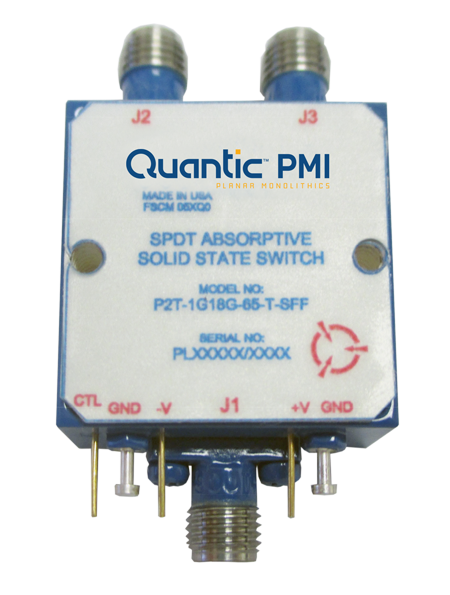

SP2T Absorptive Switch

P2T-1G18G-65-T-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 3.05 dB

Isolation: 77.81 dB

VSWR: 1.92:1

Input Power: 30 dBm

Switching Speed: 100 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

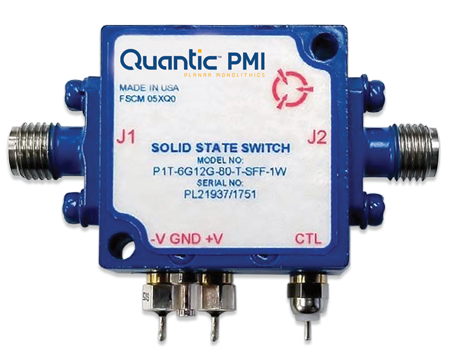

SP1T Absorptive Switch

P1T-6G12G-80-T-SFF-1W

Frequency Range: 6 to 12 GHz

Insertion Loss: 1.71 dB

Isolation: 81 dB

VSWR: 1.41:1

Switching Speed: 25 ns

Input Power: 30 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

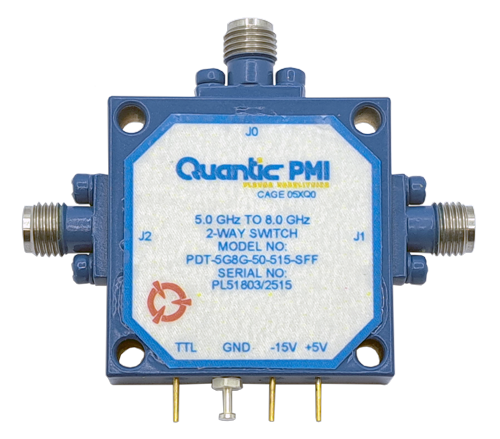

SP2T High Power Switch

PDT-5G8G-50-515-SFF

Frequency Range: 5 to 8 GHz

Insertion Loss: 1.69 dB

Isolation: 51.32 dB

Input Power: 38 dBm CW

VSWR: 1.21:1

Switching Speed: 200 ns

IM3: -55 dBc

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.30"

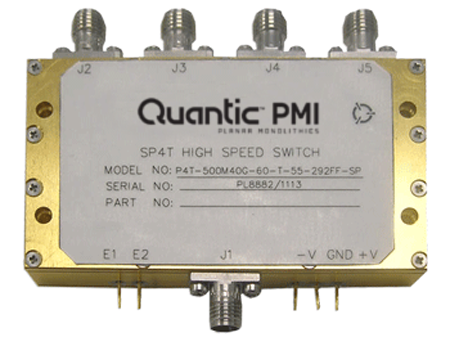

P4T-500M40G-60-T-55-292FF-SP

SP4T Absorptive Switch

Frequency Range: 0.5 to 40 GHz

Isolation: 65.9 dB

Insertion Loss: 5.81 dB

VSWR: 1.91:1

Input Power: 20 dBm

Survival Power Peak: 1 W

Rise/Fall Time: 15 ns

Delay On/Off: 50 ns

2.92m Female Connectors

Housing: 2.72" x 1.50" x 0.40"

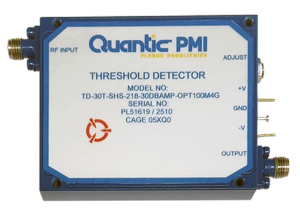

Threshold Detector

TD-30T-SHS-218-30DBAMP-OPT100M4G

Frequency Range: 0.1 to 4 GHz

Minimum Signal Level for Detector to Respond: -45 dBm ± 2.5 dBm

Absolute Max RF Input Power: 18 dBm

Propagation Delay (from 50% of an Input of -45 dBm): 10 ns

Propagation Delay (from 50% of an Input of -20 dBm): 10 ns

SMA Female Connectors

Housing: 2.5" x 2.0" x 0.5"

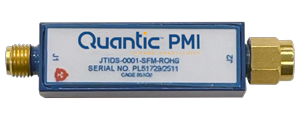

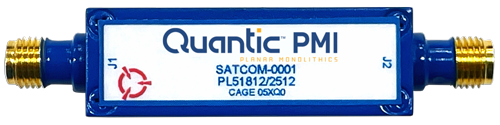

Band Reject Filter

JTIDS-0001-SFM-ROHS

Center Frequency: 1.085 GHz

Notched Bandwidth: 0.25 GHz

Passband Insertion Loss: 5.47 dB

Passband VSWR: 2.0:1

Rejection: 52 dBc

SMA Female/Male Connectors

Housing: 1.5" x 0.5" x 0.5"

RoHs & Reach Compliant

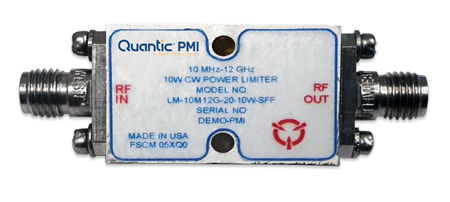

LM-10M12G-20-10W-SFF

Frequency Range: 0.01 to 12 GHz

Power Handling: 40 dBm

Insertion Loss: 1.89 dB

VSWR: 1.88:1

Flat Leakage Power: 20 dBm

Recovery Time: 11 ns

SMA Female Connectors

Housing: 1.00" x 0.68" x 0.35"

LM-1G18G-2W-SFF-BIAS

Frequency Range: 1 to 18 GHz

Insertion Loss: 1.47 dB

VSWR: 1.37:1

RF Leakage: 26.75 dBm

P1dB: 17 dBm

SMA Male/Female Connectors

Housing: 0.53" x 0.70" x 0.26"

LM-0R1G4G-100W-15DBM-SMF-ROHS

Frequency Range: 0.1 to 4 GHz

Insertion Loss: 0.84 dB

VSWR: 1.47:1

RF Leakage Power: 15 dBm

RF Input Power: 50 dBm

RF Input Peak Power: 60 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 0.625" x 0.800" x 0.400"

RoHs Compliant

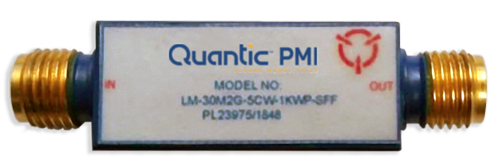

LM-30M2G-5CW-1KWP-SFF

Frequency Range: 0.03 to 2 GHz

Insertion Loss: 0.7 dB

VSWR: 1.81:1

Input Power: 5 W

Max Flat Leakage: 17 dBm

P1dB: 13.24 dBm

Recovery Time: 1000 ns

SMA Female Connectors

Housing: 0.90" x 0.38" x 0.38"

Limiter

LM-118-100W-22DBM

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.58 dB

VSWR: 1.87:1

Leakage: 17.19 dBm

Recovery Time: 100 ns

RF Power Handling: 100 W

Limiting Threshold: 13 dBm

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

COTS Availability

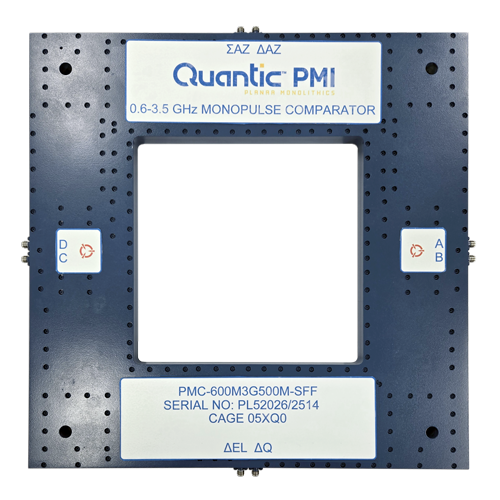

Monopulse Comparator

PMC-600M3G500M-SFF

Frequency Range: 0.6 to 3.5 GHz

Insertion Loss: 6.05 dB

Nominal Split: 6.02 dB

Amplitude Balance: ±2.03 dB

Phase Balance: ±5.1°

Isolation: 21 dB

VSWR: 1.53:1

Power Handling: 30 W Average, 1 KW Peak

SMA Female Connectors

Housing: 14.5" x 14.5" x 0.71"

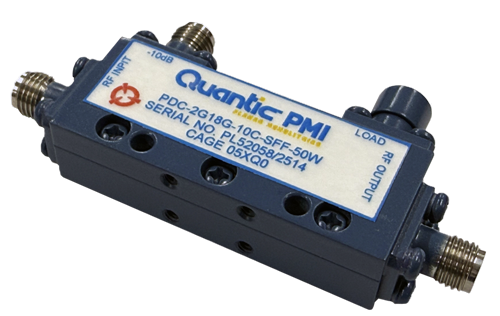

Directional Coupler

PDC-2G18G-10C-SFF-50W

Frequency Range: 2 to 18 GHz

Insertion Loss: 0.5 dB

VSWR: 1.28:1

Coupling Factor: 10 ± 0.7 dB

Coupling Sensitivity: ±0.7 dB

Directivity: 17.3 dB

Power Handling: Incident 50 W

SMA Female Connectors

Housing: 1.69" x 0.67" x 0.43"
