Broadband Amplifier

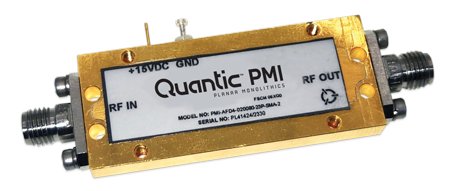

PMI-AFD4-020080-23P-SMA-2

• Frequency Range of 2.0 to 8.0 GHz
• Gain of 32.2 dB
• Gain Flatness of ±0.93 dB
• Noise Figure of 4.1 dB
• Input P1dB of -5.95 dBm
• VSWR of 1.8:1
• SMA Female Connectors
• Housing of 1.83" x 0.76" x 0.20"

Learn More

Low Noise Amplifier

PEC-36-2G18G-4R5-27-15-SFF

• Frequency Range of 2.0 to 18.0 GHz
• Gain of 36 dB
• Gain Flatness of 2.06 dB
• Noise Figure of 4.5 dB
• OP1dB of 26.72 dBm
• VSWR of 1.75:1
• Input Power of +20 dBm
• SMA Female Connectors
• Housing of 1.00" x 0.75" x 0.25"

Learn More

High Power Amplifier

PA-218-25G-6NF-34PS-24V-SFF

• Frequency Range of 2.0 to 18.0 GHz
• Gain of 26.36 dB
• Gain Flatness of ±2.55 dB
• Noise Figure of 7.9 dB
• OP1dB of 27.5 dB
• Psat of 33.44 dBm
• VSWR of 1.99:1
• Input Power of 27 dBm
• SMA Female Connectors
• Housing of 1.50" x 2.00" x 0.40"

Learn More

10-Bit Programmable Attenuator

DTA-0R5G4G-60-CD-1-OPT12VDC

• Frequency Range of 0.5 to 4.0 GHz
• Insertion Loss of 2.1 dB
• VSWR of 1.8:1
• Flatness of 0.58 dB
• Accuracy of Attenuation of 0.75 dB
• Switching Speed of 0.25 us
• SMA Female Connectors
• Housing of 2.00" x 1.81" x 0.88"

Learn More

10-Bit Programmable Attenuator

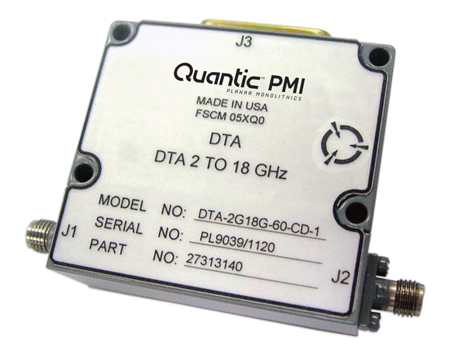

DTA-2G18G-60-CD-1

• Frequency Range of 2.0 to 18.0 GHz
• Insertion Loss of 4 dB
• VSWR of 1.9:1
• Flatness of ±0.7 dB
• Accuracy of Attenuation of ±0.21 dB
• Switching Speed of 500 ns
• SMA Female Connectors
• Housing of 2.00" x 1.81" x 0.88"

Learn More

Single Pole, Single Throw, Absorptive Switch

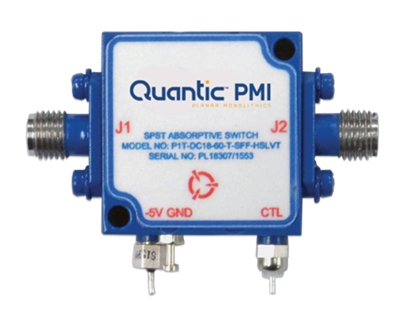

P1T-DC18-60-T-SFF-HSLVT

• Frequency Range of DC to 18.0 GHz
• Insertion Loss of 3.4 dB
• Isolation of 61 dB
• Leakage of 68.3 dB
• VSWR of 1.65:1
• SMA Female Connectors
• Housing of 1.00" x 1.00" x 0.50"

Learn More

Single Pole, Single Throw, Absorptive Switch

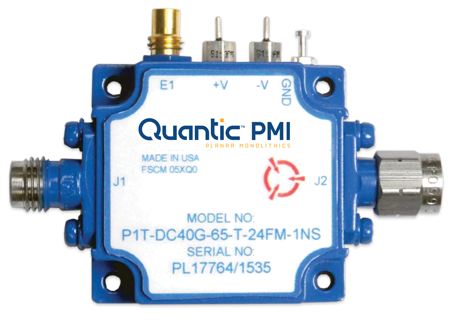

P1T-DC40G-65-T-24FM-1NS

• Frequency Range of DC to 40.0 GHz
• Isolation of 59 dB
• Insertion Loss of 6.17 dB
• VSWR of 2.08:1
• Input Power of +17 dBm
• Switching Speed of 3 ns
• Rise/Fall Time of 0.7 ns
• 2.4mm Female and Male Connectors
• Housing of 1.30" x 1.20" x 0.50"

Learn More

Single Pole, Single Throw, Absorptive Switch

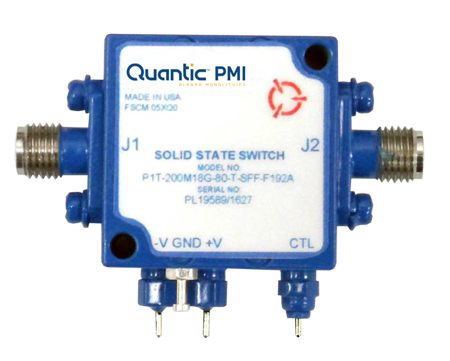

P1T-200M18G-80-T-SFF-F192A

• Frequency Range of 0.2 to 18.0 GHz
• Insertion Loss of 2.1 dB
• Isolation of 84.8 dB
• VSWR of 1.8:1
• Operating Power of +27 dBm
• Switching Speed of 5 ns
• SMA Female Connectors
• Housing of 1.00" x 1.00" x 0.50"

Learn More

Single Pole, Single Throw, Absorptive Switch

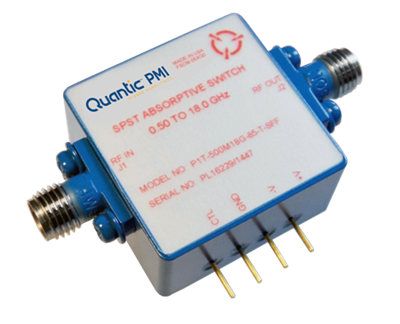

P1T-500M18G-85-T-SFF

• Frequency Range of 0.5 to 18.0 GHz
• Isolation of 90 dB
• Insertion Loss of 4.3 dB
• VSWR of 2.3:1
• Input Power of +20 dBm
• Switching Speed of 25 ns
• SMA Female Connectors
• Housing of 1.00" x 1.00" x 0.50"

Learn More

Single Pole, Two Throw, Absorptive Switch

P2T-2G18G-60-T-SFF-PM-I-NG

• Frequency Range of 2.0 to 12.0 GHz
• Input Power of +20 dBm
• VSWR of 1.96:1
• Insertion Loss of 2.96 dB
• Phase Matching of 2.4°
• Isolation of 70 dB
• Switching Speed of 30 ns
• SMA Female Connectors
• Housing of 1.00" x 1.00" x 0.40"

Learn More

Single Pole, Two Throw, Absorptive Switch

P2T-8G12G-70-T-SFF

• Frequency Range of 8.0 to 12.0 GHz
• Input Power of 20 dBm
• VSWR of 1.29:1
• Insertion Loss of 2.1 dB
• Isolation of 89.8 dB
• Switching Speed of 100 ns
• SMA Female Connectors
• Housing of 1.00" x 1.00" x 0.40"

Learn More

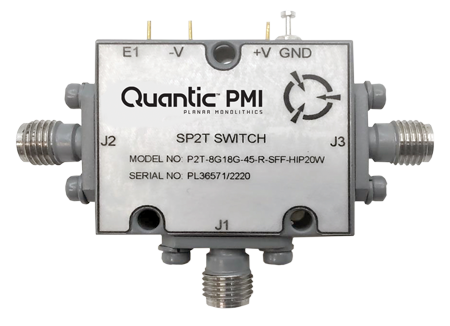

Single Pole, Two Throw, Reflective Switch

P2T-8G18G-45-R-SFF-HIP20W

• Frequency Range of 8.0 to 18.0 GHz
• Insertion Loss of 2 dB
• Isolation of 53 dB
• VSWR of 1.94:1
• Switching Speed of 75 ns
• Operating Input Power of 20 W
• Hot Switching of 10 W
• SMA Female Connectors
• Housing of 1.20" x 1.00" x 0.50"

Learn More

High Power Limiter

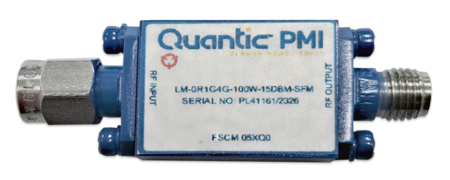

LM-0R1G4G-100W-15DBM-SMF

• Hermetically Sealed
• Frequency Range of 0.1 to 4.0 GHz
• Insertion Loss of 0.73 dB
• VSWR of 1.48:1
• Leakage Power of 9.29 dBm
• Input Power of +50 dBm
• Recovery Time of 100 ns
• SMA Male and Female Connectors
• Housing of 0.800" x 0.625" x 0.400"

Learn More

High Power Limiter

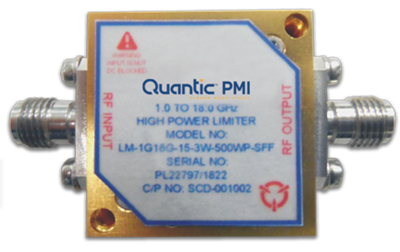

LM-1G18G-15-3W-500WP-SFF

• Frequency Range of 1.0 to 18.0 GHz
• Insertion Loss of 2.41 dB
• Recovery Time of 100 ns
• VSWR of 1.84:1
• RF Power Handling of 3 W
• Limiting Threshold of +11 dBm
• SMA Female Connectors
• Housing of 1.00" x 1.00" x 0.40"

Learn More

High Power Limiter

LM-4G18G-100W-15DBM-SMF

• Frequency Range of 4.0 to 18.0 GHz
• Insertion Loss of 2.39 dB
• VSWR of 1.89:1
• Leakage Power of +9.07 dBm
• Input Power of +50 dBm
• Recovery Time of 100 ns
• SMA Male and Female Connectors
• Housing of 0.625" x 0.800" x 0.400"

Learn More

Passive Equalizer

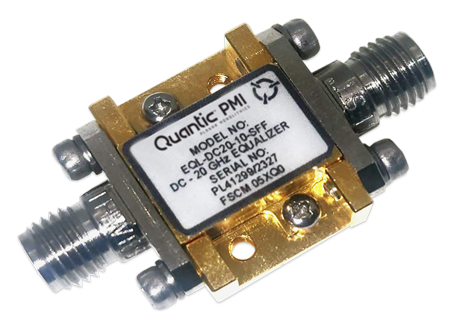

EQL-DC20-10-SFF

• Frequency Range of DC to 20.0 GHz
• Insertion Loss of 1.4 dB
• VSWR of 1.69:1
• Nominal Slope of 9 dB
• SMA Female Connectors
• Housing of 0.53" x 0.70" x 0.26"

Learn More

6-Channel Switched Filter Bank

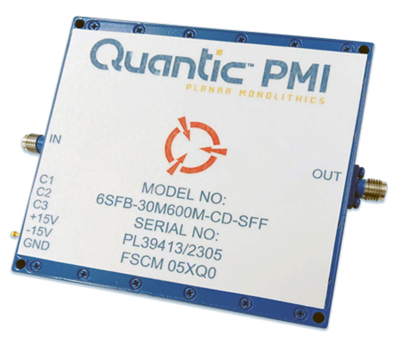

6SFB-30M600M-CD-SFF

• Frequency Range of 0.03 to 0.6 GHz
• Insertion Loss of 2.4 dB
• Rejection Lower of 64 dBc
• Rejection Upper of 41 dBc
• VSWR of 1.4:1
• Isolation of 66.3 dB
• Input Power of 1 W
• Switching Speed of 500 ns
• SMA Female Connectors
• Housing of 3.43" x 3.15" x 0.55"

Learn More

Band Reject Filter

JTIDS-0001-TNC

• Center Frequency of 1.085 GHz
• Notched Bandwidth of 0.25 GHz
• Passband Insertion Loss of 5.5 dB
• Passband VSWR of 2.0:1
• Rejection of 41.2 dBc
• TNC Female Connectors
• Housing of 1.50" x 0.75" x 0.75"

Learn More

Combline Bandpass Filter

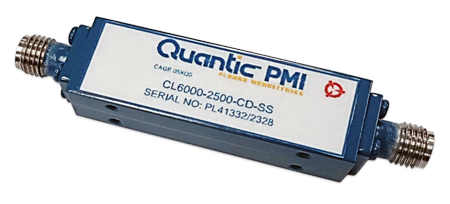

CL6000-2500-CD-SS

• Passband of 4.75 to 7.25 GHz
• VSWR of 1.67:1
• Insertion Loss of 1.11 dB
• Rejection of 40 dBc
• Survival Power of 10 W
• SMA Female Connectors
• Housing of 1.52" x 0.50" x 0.39"

Learn More

Hybrid Coupler

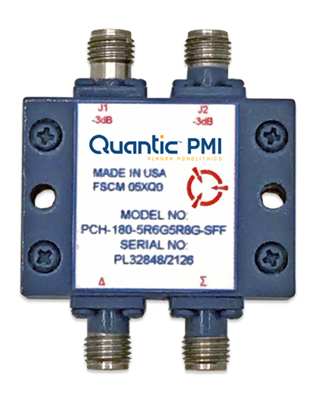

PCH-180-5R6G5R8G-SFF

• Frequency Range of 5.6 to 5.8 GHz
• Nominal Split of 3.01 dB
• Insertion Loss of 0.4 dB
• Isolation of 23.6 dB
• Amplitude Balance of ±0.14 dB
• Phase Balance of ±0.3°
• VSWR of 1.17:1
• SMA Female Connectors
• Housing of 1.380" x 1.000" x 0.433"

Learn More

Phase Locked Oscillator

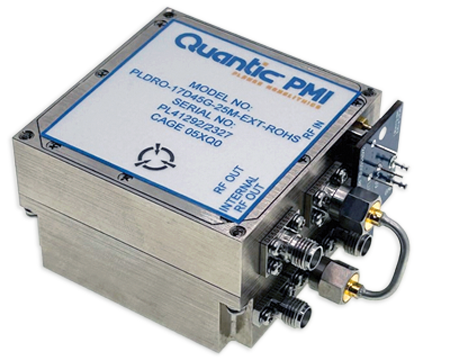

PLDRO-17D45G-25M-EXT-ROHS

• Output Frequency of 17.45 GHz
• Reference Frequency of 0.025 GHz External
• Output Power of 13.9 dBm
• No Lock Break VSWR of 3:1
• Output Harmonics of -25 dBc
• Reference Input Power of 10 dBm
• SMA Male Connectors
• Housing of 2.25" x 2.25" x 1.41"

Learn More
