Featured Products

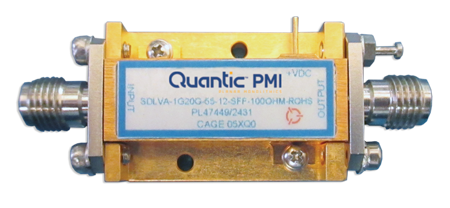

Log Video Amplifier

SDLVA-1G20G-55-12-SFF-100OHM-ROHS

Frequency Range: 1 to 20 GHz

Frequency Flatness: 1.6 dB

Log Linearity: ±1.28 dB

Logging Range: -55 to +5 dBm

VSWR: 2.8:1

Log Video Output Rise/Fall Time: 6.7/8.6 ns

Log Video Recovery Time: 18.5 ns

Log Video Propagation Delay: 15 ns

TSS: -59.5 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

RoHS compliant

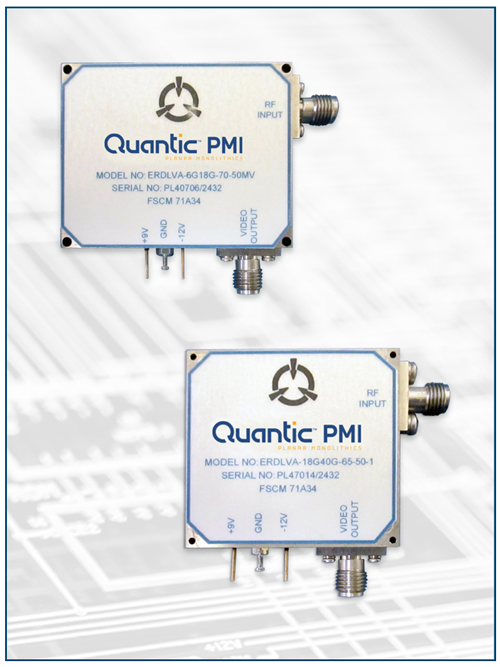

Log Video Amplifier

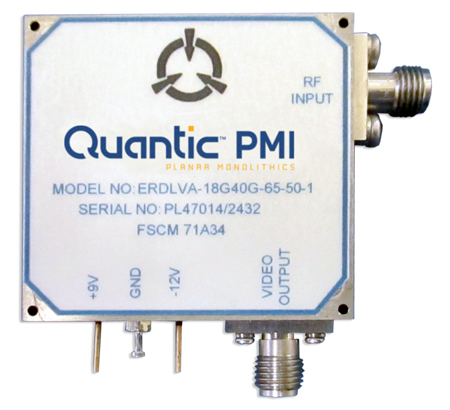

ERDLVA-18G40G-65-50-1

Frequency Range: 18 to 40 GHz

Frequency Flatness: ±1.75 dB

Output Noise Level: 148 mV P-P

Dynamic Range: 68 dB

TSS: -68.5 dBm

Log Dynamic Range: -65 to 0 dBm

Log Slope: 49.1 mv/dB

Log Linearity: ±1.5 dB

Log Accuracy: ±2.0 dB

Settling Time: 33 ns

Recovery Time: 350 ns

VSWR: 2.2:1

Max Input Level: 20 dBm

SMA Female Connectors

Housing: 1.60" x 1.50" x 0.31"

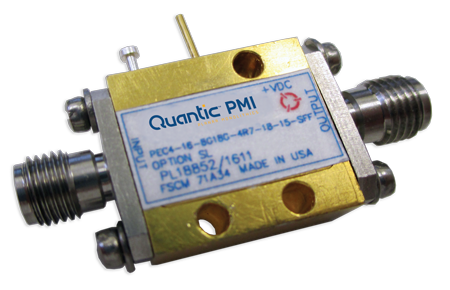

Low Noise Amplifier

PEC4-16-8G18G-4R7-18-15-SFF-OPTSL

Frequency Range: 8 to 18 GHz

Gain: 15.6 dB

Gain Flatness: 1.2 dB

Gain Slope: 2.5 dB

Noise Figure: 4.3 dB

OP1dB: 21.6 dBm

VSWR: 1.74:1

Maximum Input: +30 dBm

SMA Female Connectors

Housing: 0.71" x 0.64" x 0.31"

Portable Amplifier

PLNA-35-100M18G-P1dB24-120VAC

Frequency Range: 0.1 to 18 GHz

Gain: 37.18 dB

Gain Flatness: ±2.45 dB

Noise Figure: 4.5 dB

OP1dB: 26.28 dBm

VSWR: 1.5:1

Maximum RF Input: 10 dB

N-Type Female Connectors

Housing: 3.50" x 3.50" x 1.75"

Low Noise Amplifier

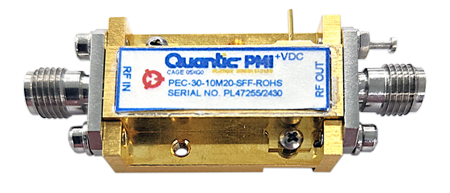

PEC-30-10M20-SFF-ROHS

Frequency Range: 0.01 to 20 GHz

Gain: 28.18 dB

Gain Flatness: ±1.87 dB

Log Linearity: ±1.23 dB

Noise Figure: 3.5 dB

OP1dB: 13.9 dBm

Reverse Isolation: 37.68 dB

VSWR: 1.9:1

SMA Female Connectors

Housing: 1.08" x 1.50" x 0.32"

RoHS compliant

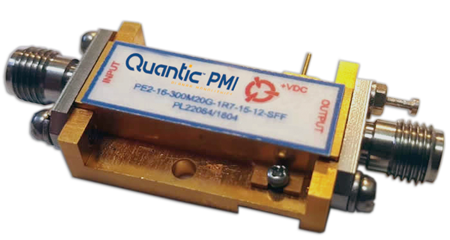

Low Noise Amplifier

PE2-16-300M20G-1R7-15-12-SFF

Frequency Range: 0.3 to 20 GHz

Gain: 13.81 dB

VSWR: 2.4:1

Noise Figure: 2 dB

P1dB: 15.24 dBm

IP3: 20 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Phase Shifter

PS-360-16G22G-10B-SFF

Frequency Range: 16 to 22 GHz

Insertion Loss: 10.73 dB

VSWR: 1.79:1

Phase Accuracy: 5°

Switching Speed: 500 ns

Operating Power: -20 dBm

Survival Power: 25 dBm

SMA Female Connectors

Housing: 2.0" x 2.1" x 0.5"

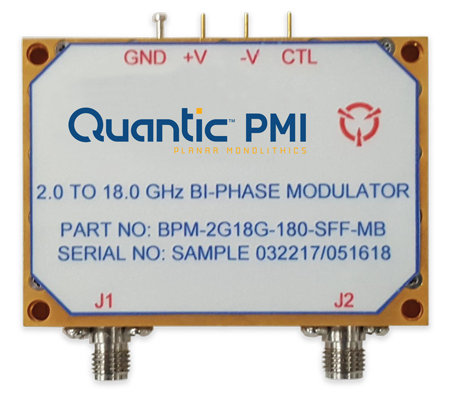

Bi-Phase Modulator

BPM-2G18G-180-SFF-MB

Frequency Range: 2 to 18 GHz

Insertion Loss: 4.2 dB

VSWR: 1.5:1

Speed: 100 ns

Phase Shift: ±30°

Amplitude Balance: ±2.0 dB

SMA Female Connectors

Housing: 2.25" x 1.60" x 0.60"

Attenuator

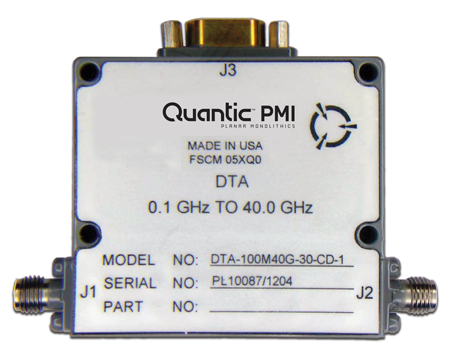

DTA-100M40G-30-CD-1

Frequency Range: 0.1 to 40 GHz

Mean Attenuation Ragne: 31 dB

Insertion Loss: 4.74 dB

VSWR: 2.33:1

Accuracy of Attenuation: ±0.13 dB

Minimum Attenuation Step: 0.98 dB

Power Handling Capability: +24 dBm

Input 1 dB Compression: +20 dBm

Switching Speed: 0.5 us

2.92mm Female Connectors

Housing: 2.0" x 1.8" x 0.5"

SP2T Absorptive Switch

P2T-2G18G-60-T-SFF-PM-I-NG

Frequency Range: 2 to 18 GHz

Input Power: 30 dBm

VSWR: 1.79:1

Insertion Loss: 2.91 dB

Phase Matching: 1.5°

Isolation: 70 dB

Switching Speed: 30 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

SP6T Absorptive Switch

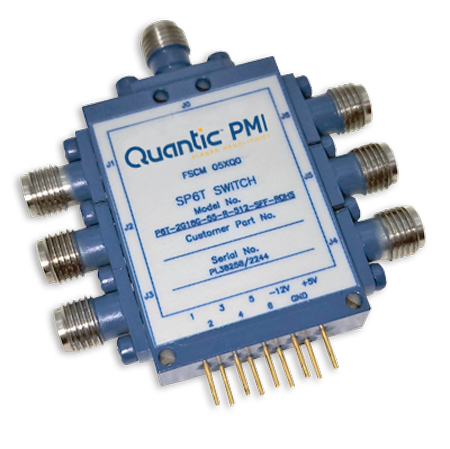

P6T-2G20G-55-T-SFF

Frequency Range: 2 to 20 GHz

Isolation: 65.2 dB

Insertion Loss: 4.38 dB

Frequency Flatness: 0.4 dB

VSWR: 1.89:1

Input Power: 20 dBm

RF Switching Speed: 30 ns

SMA Female Connectors

Housing: 3.1" x 1.0" x 0.4"

SP12T Absorptive Switch

P12T-0R5G18G-60-T-SFF

Frequency Range: 0.5 to 18 GHz

Isolation: 86.03 dB

Insertion Loss: 4.83 dB

VSWR: 1.89:1

Switching Speed: 100 ns

Power Handling: 20 dBm

SMA Female Connectors

Housing: 6.0" x 2.0" x 0.4"

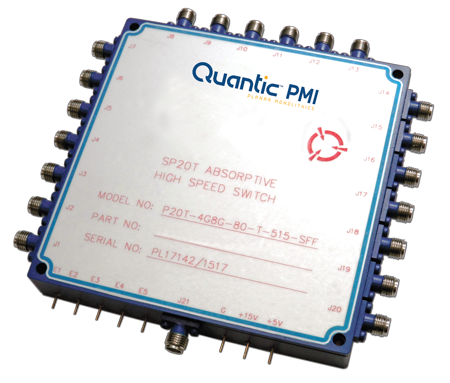

SP20T Absorptive Switch

P20T-4G8G-80-T-515-SFF

Frequency Range: 4 to 8 GHz

Isolation: 86.2 dB

Insertion Loss: 3.89 dB

VSWR: 1.8:1

Operating Power: 0.1 W

Switching Speed: 2000 ns

SMA Female Connectors

Housing: 4.00" x 4.00" x 0.63"

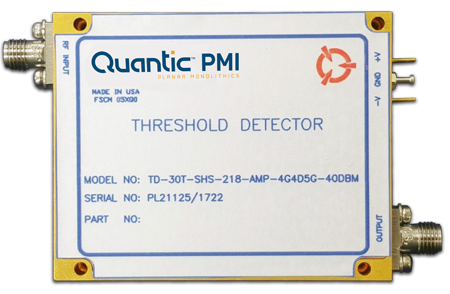

Threshold Detector

TD-30T-SHS-218-AMP-OPT4G4D5G-40DBM

Frequency Range: 4 to 4.5 GHz

Fixed Threshold Level: -41 dBm

Operating Input Power Level: -35 to -15 dBm

Absolute Max Input Power Level: 10 dBm

Output Pulse Width: ±20 ns

Propagation Delay: 10 ns

SMA Female Connectors

Housing: 2.5" x 2.0" x 0.5"

6-Channel Switched Filter Bank

6SFB-30M600M-CD-SFF

Frequency Range: 0.03 to 0.6 GHz

Insertion Loss: 2.5 dB

Rejection Lower: 60 dBc

Rejection Upper: 40 dBc

VSWR: 1.4:1

Isolation: 68.9 dB

Input Power: 1 W

Switching Speed: 500 ns

SMA Female Connectors

Housing: 3.43" x 3.15" x 0.55"

Bandpass Filter

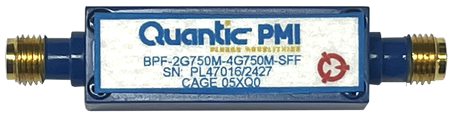

BPF-2G750M-4G750M-SFF

Frequency Range: 2.75 to 4.75 GHz

Insertion Loss: 1.83 dB

VSWR: 1.36:1

Rejection: 55.45 dBc

Passband Ripple: ±0.7 dB

SMA Female Connectors

Housing: 1.38" x 0.47" x 0.39"

Diode Detector

DD-46-1840-10PF-N-292MF

Frequency Range: 18 to 40 GHz

Polarity: Negative

Voltage Sensitivity: 452 mV/mW

Tangential Sensitivity: -45 dBm

Temperature Sensitivity: ±0.5 dB

Maximum Flatness: ±2.5 dB

Rise Time: 5 ns

VSWR: 3.4:1

Output Capacitance: 10 pF

Input Power: 50 mW

2.92mm Male/Female Connectors

Housing: 1.30" x Ø0.31"

4-Way Power Divider

APD-4-218-LC-2

Passband Frequency: 2 to 18 GHz

Insertion Loss: 1.13 dB

VSWR: 1.42:1

Isolation: 18 dB

Amplitude Balance: 0.2 dB

Phase Balance: 2.9°

SMA Female Connectors

Housing: 1.75" x 1.75" x 0.40

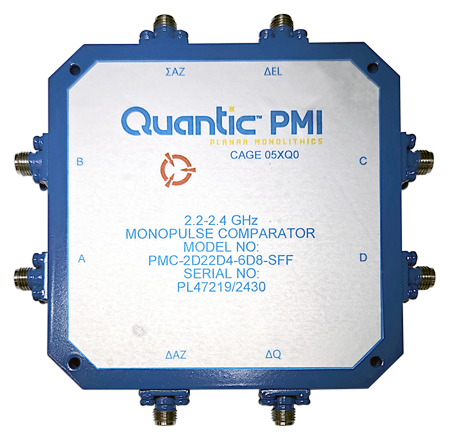

Monopulse Comparator

PMC-2D22D4-6D8-SFF

Frequency Range: 2.2 to 2.4 GHz

Insertion Loss: 6.7 dB

Amplitude Balance: 0.41 dB

Phase Balance: ±1.02°

Isolation: 21 dB

VSWR: 1.29:1

Power Handling: 10 W

SMA Female Connectors

Housing: 3.54" x 3.54" x 0.43"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
