Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

Latest News & Events

August 2025

4,500+ COTS High-Reliability Components & IMAs for Mission-Critical Applications...



Why wait to get what you need today... Select from over 4,500+ available RF & Microwave products that can be shipped from Quantic PMI directly or one of its authorized distributors to you the same day. Eliminate Non-Recurring Engineering fees (NRE), long lead times and reduce your inventory burden. Check stock easily using the “Buy Now” Button on the product specification sheets or select from the available “In Stock / COTS Items” on the quanticpmi.com site!

Visit us @

Booth # D139

Featured Products

Power Amplifier (Low Phase Noise)

PA-LPN-40-50M500M-5-35DBM-SFF

Frequency Range: 0.05 to 0.5 GHz

Gain: 40 dB

Psat: 34 dBm

Input Power: 0 dBm

VSWR: 1.5:1

Noise Figure: 4 dB

Spurious: -60 dBc

SMA Female Connectors

Housing: 3.55" x 1.89" x 0.60"

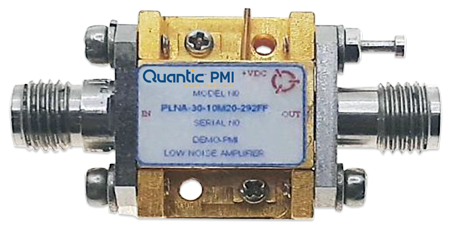

Low Noise Amplifier

PLNA-30-10M20-292FF

Frequency Range: 0.01 to 20 GHz

Gain: 28.1 dB

Gain Flatness: ±1.94 dB

Noise Figure: 4.6 dB

OP1dB: 14.1 dBm

Psat: 16 dBm

OIP3: 25 dBm

VSWR: 2.0:1

Second Harmonic: 12 dBc

Reverse Isolation: 36.1 dB

2.92mm Female Connectors

Housing: 0.53" x 0.70" x 0.26"

Low Noise Amplifier

PLNA-39-8G18G-5NF-8DBM-12V-SFF

Frequency Range: 8 to 18 GHz

Gain: 42 dB

Gain Flatness: ±0.57 dB

VSWR: 1.45:1

Saturated Output Power: 9.87 dBm

Harmonics @ 5 dBm Input: -6 dBc

Noise Figure: 3.37 dB

SMA Female Connectors

Housing: 2.822" x 0.660" x 0.320"

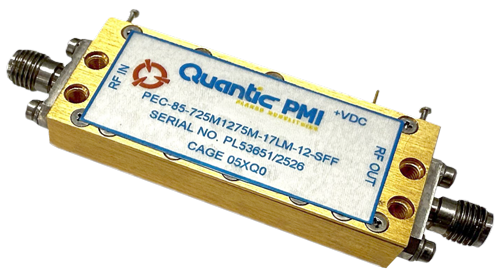

Limiting Amplifier

PEC-85-725M1275M-17LM-12-SFF

Frequency Range: 0.725 to 1.275 GHz

Gain: 88.03 dB

Gain Flatness: ±1.3 dB

Noise Figure: 4.27 dB

Limited RF Output: 15.5 to 18.5 dBm

Input Power Handling: -55 to +10 dBm

VSWR: 1.71:1

SMA Female Connectors

Housing: 1.92" x 0.78" x 0.36"

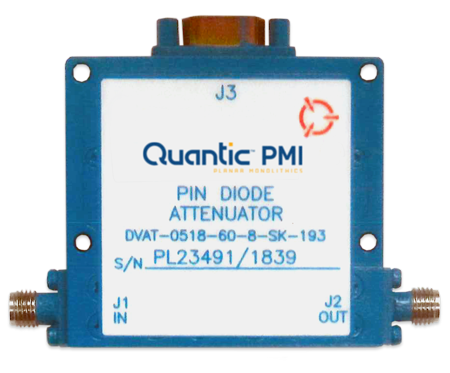

Digital Attenuator

DVAT-0518-60-8-SK-193

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 4.5 dB

Attenuation Flatness: ±0.73 dB

Attenuation Accuracy: 0.31 dB

Monotonicity: Guaranteed

Temperature Variation: ±2.1 dB

Switching Speed: 1 us

Small Signal Bandwidth: 100 KHz (6 dB w/ ±3 dB sinewave)

Large Signal Bandwidth: 50 KHz (30 dB w/ ±3 dB sinewave)

Return Loss: -13.4 dB

Power Rating: 20 dB

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.50"

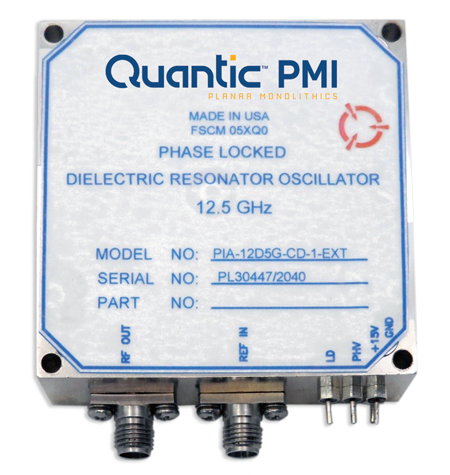

Phase Locked Oscillator

PIA-12D5G-CD-1-EXT

Frequency Range: 12.5 GHz

Power Output: 16.3 dBm

VSWR: 1.4:1

External Reference: 0.1 GHz

Frequency Stability: ±3 ppm

Spurious: -72.9 dBc

Harmonics: -47 dBc

Phase Noise @ Offset: 140 dBc/Hz Max

SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

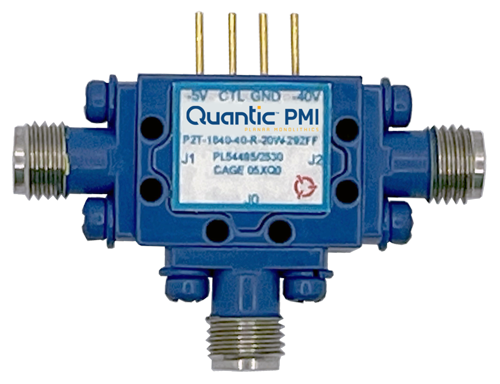

SP2T Reflective Switch

P2T-1840-40-R-20W-292FF

Frequency Range: 18 to 40 GHz

Insertion Loss: 1 dB

Isolation: 48 dB

VSWR: 1.6:1

Input Power: 40 dBm

Switching Speed: 100 ns

2.92mm Female Connectors

Housing: 0.69" x 0.53" x 0.35"

SP3T Absorptive Switch

P3T-10M1G-60-T-SFF

Frequency Range: 0.01 to 1 GHz

Insertion Loss: 1.34 dB

VSWR: 1.18:1

Isolation: 62.92 dB

Switching Speed: 60 ns

Survival Input Power: 30 dBm

Operating Input Power: 20 dBm

SMA Female Connectors

Housing: 1.5" x 1.5" x 0.4"

COTS Availability!

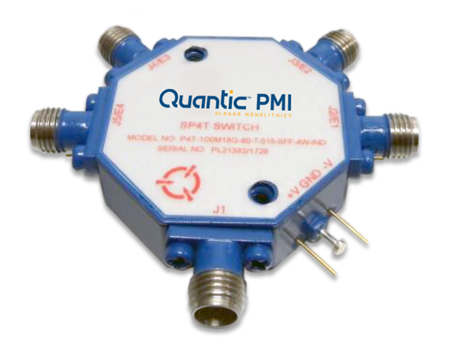

SP4T Absorptive Switch

P4T-100M18G-80-T-515-SFF-4W-IND

Frequency Range: 0.1 to 18 GHz

Insertion Loss: 4.23 dB

Isolation: 82.1 dB

VSWR: 1.89:1

Switching Speed: 200 ns

Operating Power CW: 36 dBm

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.40"

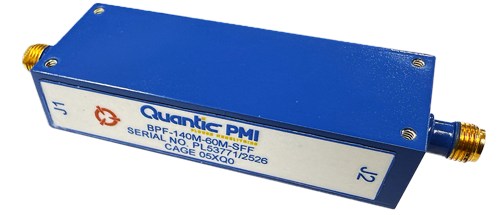

Bandpass Filter

BPF-140M-60M-SFF

Frequency Range: 0.11 to 0.17 GHz

VSWR: 1.22:1

Insertion Loss: 1.61 dB

Rejection @ 0.085 GHz: 42.9 dB

Rejection @ 0.195 GHz: 43 dB

Passband Flatness: 0.63 dB

Input Power: 1 W

Group Delay: 60 ns

SMA Female Connectors

Housing: 2.6" x 0.6" x 0.8"

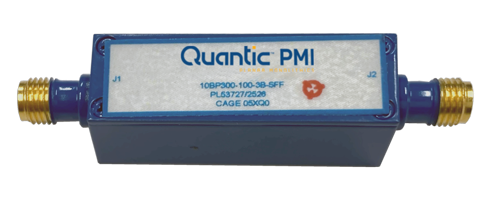

Bandpass Filter

10BP300-100-3B-SFF

Frequency Range: 0.25 to 0.35 GHz

Bandwidth: 0.1 GHz

Insertion Loss: 1.2 dB

VSWR: 1.3:1

Rejection @ 0.2 GHz: 100 dB

Rejection @ 0.4 GHz: 95.7 dB

Input Power: 30 dBm

SMA Female Connectors

Housing: 1.5" x 0.5" x 0.5"

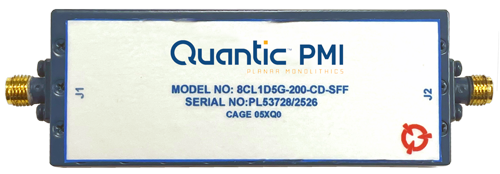

Bandpass Filter

8CL1D5G-200-CD-SFF

Frequency Range: 1.4 to 1.6 GHz

VSWR: 1.37:1

Insertion Loss: 0.85 dB

Rejection @ 0.1 to 1.0 GHz: 87.8 dBc

Rejection @ 2 to 3 GHz: 93.59 dBc

SMA Female Connectors

Housing: 3.08" x 1.20" x 0.50"

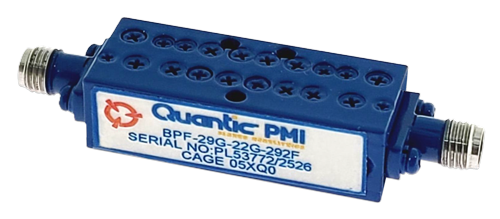

Bandpass Filter

BPF-29G-22G-292F

Frequency Range: 18 to 40 GHz

Insertion Loss: 1.29 dB

Passband Ripple: ±0.43 dB

VSWR: 2.3:1

Rejection @ 16.5 GHz: 33.3 dB

Rejection @ 41.5 GHz: 25 dB

Input Power: 1 W

2.92mm Female Connectors

Housing: 1.33" x 0.55" x 0.43"

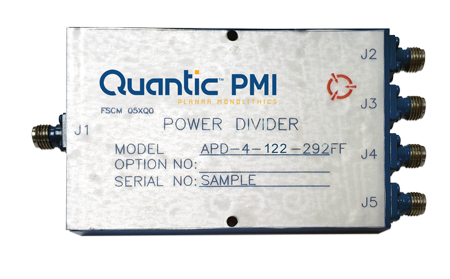

4-Way Power Divider

APD-4-122-292FF

Frequency Range: 1 to 22 GHz

Insertion Loss: 2.9 dB

Isolation: 18 dB

VSWR: 1.84:1

Amplitude Balance: 0.22 dB

Phase Balance: 3.89°

2.92mm Female Connectors

Housing: 3.0" x 2.0" x 0.4"

COTS Availability!

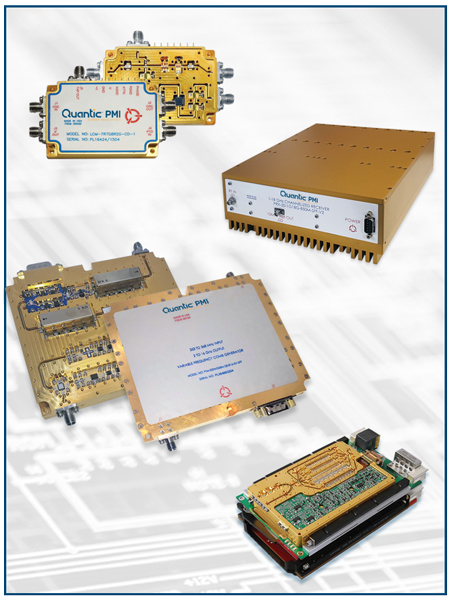

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.

In-Stock

Amplifiers - Solid State

Attenuators

Bias Tees

Couplers (90°, 180° & Directional & Pick-Off Tees)

Detectors

Detector Log Video Amplifiers

Filters & Switched

Filter Banks

Form, Fit, Function Products & Services

Frequency

Converters

Frequency Discriminators & IFM

Frequency

Sources

Gain & Loss

Equalizers

Integrated Microwave Assemblies (IMA)

I/Q Vector

Modulators

Isolators &

Circulators

Limiters

Mixers

Monopulse

Comparators

Prescalers &

Multiplexers

Phase Shifters &

Bi-Phase Modulators

Power

Dividers/Combiners

Rack & Chassis

Mount Products

Receiver Front Ends

& Transceivers

SMT & QFN Products

Switches - Solid State

 Switch Filter Banks

Switch Matrices

 USB Products
