Quantic PMI (Planar Monolithics) Products in Action

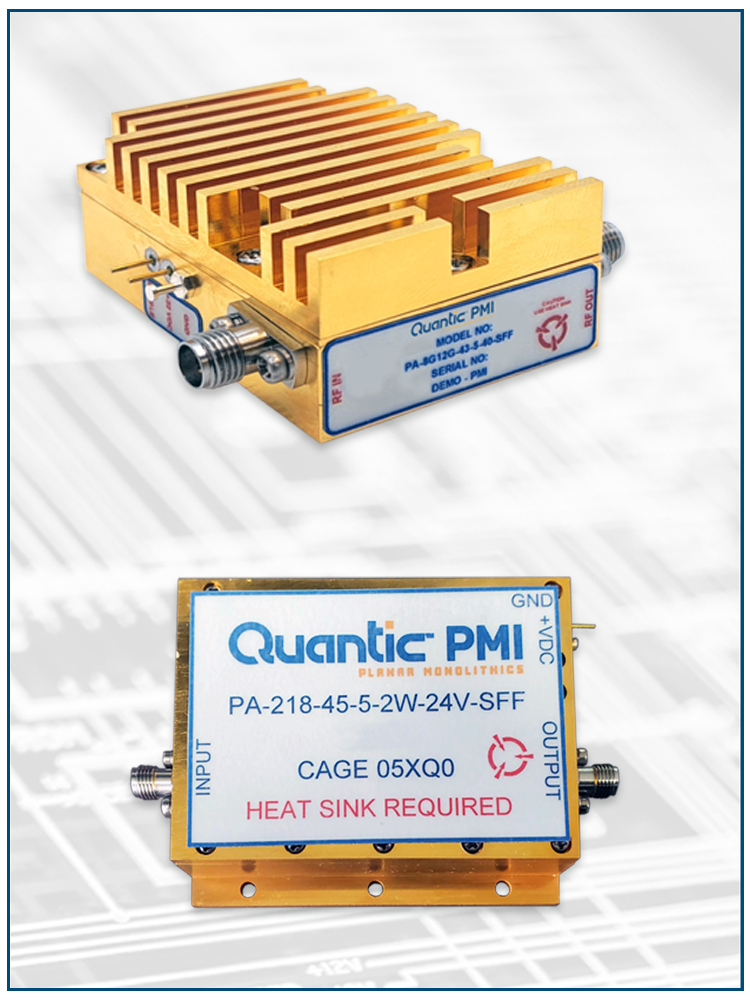

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

Featured Products

Learn More

Log Video Amplifier

GMDA-D1007

Frequency Range: 0.5 to 2 GHz

TSS: -65 dBm

Logging Range: -60 to +7 dBm

Logging Linearity: ±1.5 dB

Flatness: 100 mV Peak to Peak

RF Safe Input Power: 23 dBm

Max Output Voltage: 2.5 V

Input VSWR: 2.3:1

Video Rise Time: 30 ns

Recovery Time: 1 us

Throughput Time: 30 ns

Video Bandwidth: 10 MHz

Offset Voltage: ±50 mV

SMA Female Connectors

Housing: 3.5" x 3.2" x 0.5"

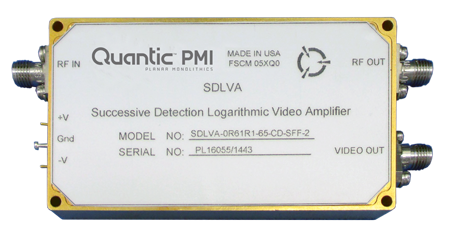

Log Video Amplifier

SDLVA-0R61R1-65-CD-SFF-2

Frequency Range: 0.6 to 1.1 GHz

Limiting Output Level: 0 to +5 dBm

RF Output Limiting Flatness: ±0.091 dB

TSS: -68 dBm

VSWR: 1.27:1

Power Input: 13 dBm

Log Slope: 30.5 mV/dB

Log Range: -65 to 0 dBm

Log Linearity: ±0.97 dB

DC Offset: 100 mV

Pulse Range: 30 ns to CW

Rise/Fall Time: 5.5 ns/23.3 ns

Recovery Time: 70 ns

SMA Female Connectors

Housing: 3.2" x 1.8" x 0.4"

Learn More

Log Video Amplifier

SDLVA-18G40G-65-CD-292FF-OPTHS

Frequency Range: 18 to 40 GHz

TSS: -65 dBm

Input Power Handling: 10 dBm

Video Log Range: -63 to +2 dBm

Video Log Linearity: 1.81 dB

Video Log Slope: 24.8 mV/dB

Video Frequency Flatness: 1.9 dB

Pulse Width Range: 25 ns to CW

Video Rise Time: 7 ns

Recovery Time: 60 ns

Delay Time: 15 ns

Input VSWR: 2.02:1

2.92 mm/SMA Female Connectors

Housing: 2.37" x 1.80" x 0.42"

Low Noise Amplifier

PE2-26-0R58-5R0-23-12-SFF

Frequency Range: 0.5 to 8 GHz

Gain: 28.8 dB

Gain Flatness: ±0.93 dB

Noise Figure: 4.43 dB

OP1dB: 25 dBm

VSWR: 1.56:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Learn More

Low Noise Amplifier

PLNA-2G4G-42-3DB-9DBM-SFF

Frequency Range: 2 to 4 GHz

Gain: 44.3 dB

Gain Flatness: ±1.35 dB

Noise Figure: 2.8 dB

Saturated Output Power: 8.3 dBc

Harmonics: -13 dBc

VSWR: 1.67:1

SMA Female Connectors

Housing: 2.75" x 1.15" x 0.66"

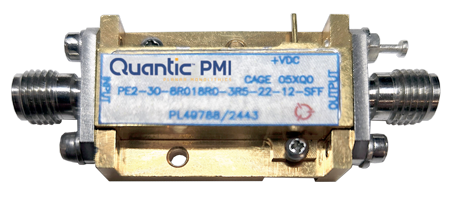

Low Noise Amplifier

PE2-30-8R018R0-3R5-22-12-SFF

Frequency Range: 8 to 18 GHz

Gain: 34.07 dB

Gain Flatness: ±0.8 dB

Noise Figure: 4.34 dB

OP1dB: 19 dBm

VSWR: 1.9:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Learn More

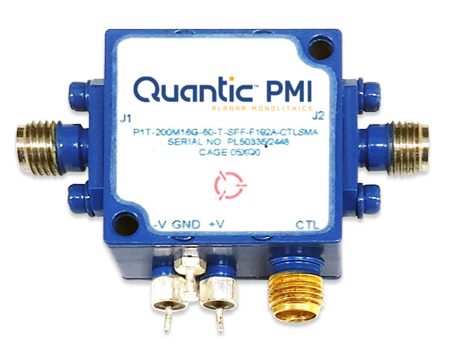

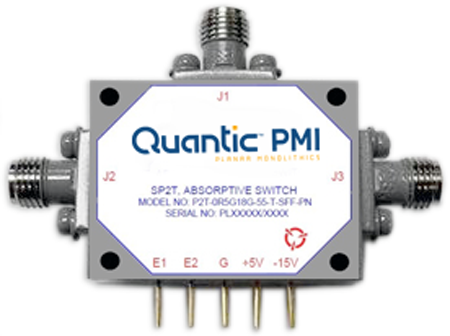

SPST Absorptive Switch

P1T-200M18G-80-T-SFF-F192A-CTLSMA

Frequency Range: 0.2 to 18 GHz

Insertion Loss: 2 dB

Isolation: 84.7 dB

VSWR: 1.84:1

Operating Power: 27 dBm

Rise/Fall Time: 5 ns

Delay On/Off Time: 5 ns/10 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

SP1T Absorptive Switch

P1T-18G40G-30-1515-292FF

Frequency Range: 18 to 40 GHz

Insertion Loss: 3.57 dB

Isolation: 48 dB

VSWR: 1.5:1

Switching Speed: 15 ns

Input Power: 23 dBm

2.92 mm Female Connectors

Housing: 2.00" x 1.50" x 0.75"

Learn More

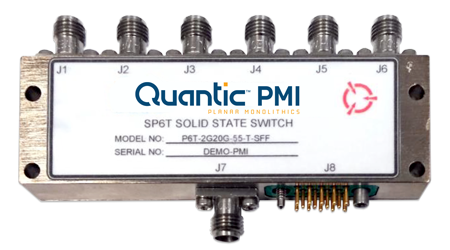

SP6T Absorptive Switch

P6T-2G20G-55-T-SFF

Frequency Range: 2 to 20 GHz

Isolation: 65.8 dB

Insertion Loss: 4.38 dB

Frequency Flatness: 0.5 dB

VSWR: 1.85:1

Input Power: 20 dBm

RF Switching Speed: 30 ns

SMA Female Connectors

Housing: 3.1" x 1.0" x 0.4"

SP20T Absorptive Switch

P20T-4G8G-80-T-515-SFF-HERM

Frequency Range: 4 to 8 GHz

Isolation: 89.1 dB

Insertion Loss: 3.81 dB

VSWR: 1.71:1

Operating Power CW: 0.1 W

Switching Speed: 2000 ns

SMA Female Connectors

Housing: 4.00" x 4.00" x 0.63"

Learn More

High Power Limiter

LM-0118-10-1W-SHS-2-FM

Frequency Range: 0.1 to 18 GHz

Insertion Loss: 1.5 dB

VSWR: 1.5:1

Leakage: 10 dBm

Input Power: 5 W

Peak Power: 100 W

Limiting Threshold: 10 dBm

SMA Female/Male Connectors

Housing: 1.0" x 1.0" x 0.4"

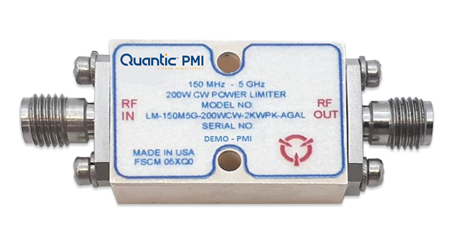

Limiter

LM-150M5G-200CW-2KWPK-AGAL

Frequency Range: 0.15 to 5 GHz

Insertion Loss: 1.16 dB

VSWR: 1.65:1

CW Power Handling: 200 CW

Peak Power Handling: 2 kW

Flat Leakage: 20 dBm

P1dB: 6 dBm

Recovery Time: 100 ns

SMA Female Connectors

Housing: 1.00" x 0.68" x 0.35"

Learn More

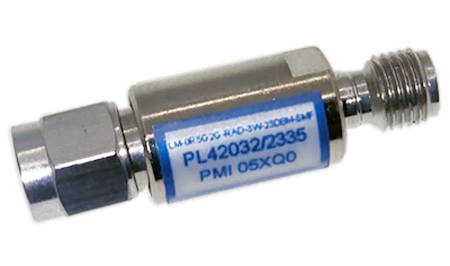

Limiter

LM-0R5G2G-RAD-3W-23DBM-SMF

Frequency Range: 0.5 to 2 GHz

Insertion Loss: 0.25 dB

VSWR: 1.1:1

Leakage Power: 23 dBm

Power Handling: 3 W

Recovery Time: 200 ns

2.92 mm Male/Female Connectors

Housing: 1.314" x ⌀0.188"

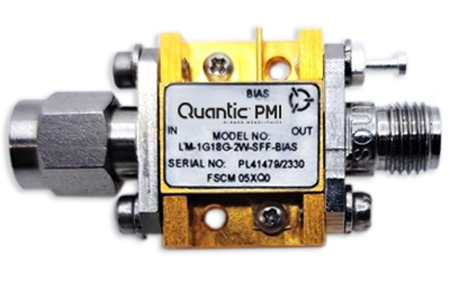

Limiter

LM-1G18G-2W-SFF-BIAS

Frequency Range: 1 to 18 GHz

Insertion Loss: 1.47 dB

VSWR: 1.37:1

RF Leakage: 26.75 dBm

P1dB: 19 dBm

SMA Male/Female Connectors

Housing: 0.53" x 0.70" x 0.26"

Learn More

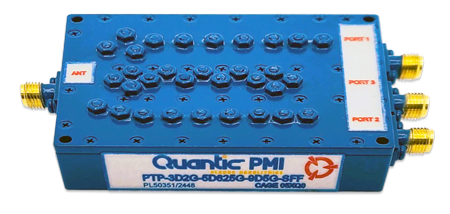

Triplexer

PTP-3D2G-5D625G-9D5G-SFF

Band 1 Frequency Range: 2.8 to 3.6 GHz

Band 1 Rejection: 93.8 dB

Band 2 Frequency Range: 5.25 to 6 GHz

Band 2 Rejection: 85.5 dB

Band 3 Frequency Range: 8.5 to 10.5 GHz

Band 3 Rejection: 91 dB

Insertion Loss: 0.51 dB

VSWR: 1.6:1

SMA Female Connectors

Housing: 2.76" x 2.09" x 0.51"

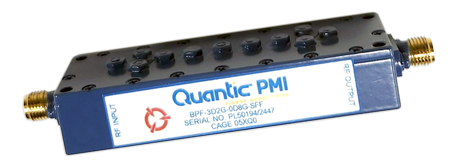

Bandpass Filter

BPF-3D2G-0D8G-SFF

Passband Frequency Range: 2.8 to 3.6 GHz

VSWR: 1.25:1

Insertion Loss: 0.27 dB

Rejection @ 5.25 to 6 GHz: 75.1 dB

Rejection @ 8.5 to 10.5 GHz: 88.3 dB

SMA Female Connectors

Housing: 2.83" x 0.94" x 0.51"

Learn More

Bandpass Filter

BPF-5D625G-0D75G-SFF

Passband Frequency: 5.25 to 6 GHz

VSWR: 1.32:1

Insertion Loss: 0.28 dB

Rejection @ 2.8 to 3.6 GHz: 59.7 dB

Rejection @ 8.5 to 10.5 GHz: 84.4 dB

SMA Female Connectors

Housing: 2.76" x 0.75" x 0.51"

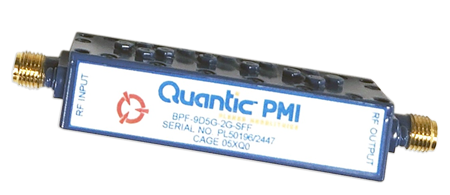

Bandpass Filter

BPF-9D5G-2G-SFF

Passband Frequency: 8.5 to 10.5 GHz

VSWR: 1.18:1

Insertion Loss: 0.22 dB

Rejection @ 2.8 to 3.6 GHz: 86.3 dB

Rejection @ 5.25 to 6 GHz: 61 dB

SMA Female Connectors

Housing: 2.20" x 0.71" x 0.51"

Learn More

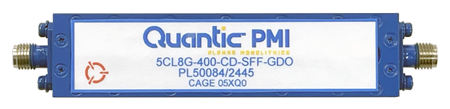

Bandpass Filter

5CL8G-400-CD-SFF-GDO

Center Frequency: 8 GHz

Bandwidth: 0.4 GHz

VSWR: 1.41:1

Group Delay Variation: 0.95 ns

Insertion Loss: 0.6 dB

Rejection @ 7.28 GHz: -74.94 dBc

Rejection @ 8.72 GHz: -72.4 dBc

Passband Ripple: ±0.2 dB

SMA Female Connectors

Housing: 3.09" x 0.75" x 0.53"

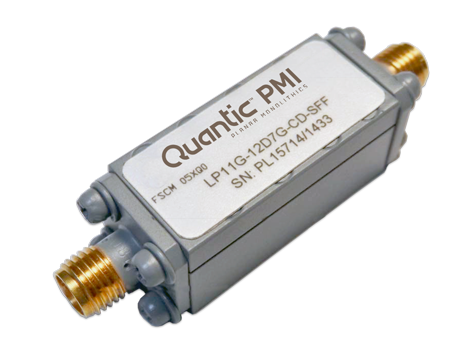

Lowpass Filter

LP11G-12D7G-CD-SFF

Passband: DC to 10 GHz

3 dB Bandwidth: 10.987 GHz

VSWR: 1.53:1

Insertion Loss: 0.94 dB

Rejection @ 12.7 to 17.5 GHz: 63.9 dB

Ripple: 0.02 dB

SMA Female Connectors

Housing: 1.094" x 0.500" x 0.500"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
