Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

Quantic PMI exhibiting @ SATShow Week 2026!

Stop by and see us at SATShow Week, the industry’s first and largest experience of the year — uniting commercial innovators, government and military decision-makers, and end-users from 110+ countries in Washington, D.C. Anchored by the flagship SATELLITE event and enriched by the dedicated GovMilSpace event.

Get More Info

Featured Products

Low Noise Amplifier

PEC-30-10M20-SFF

Frequency Range: 0.01 to 20 GHz

Gain: 26.54 dB

Gain Flatness: ±1.19 dB

Noise Figure: 3.1 dB

OP1dB: 16.3 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.32"

Learn More

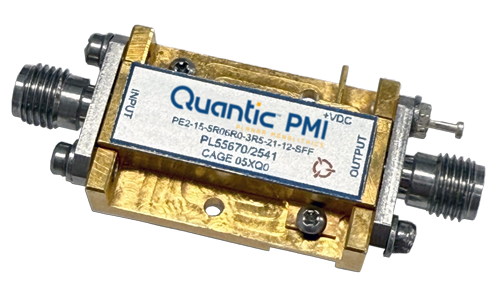

Low Noise Amplifier

PE2-15-5R06R0-3R5-21-12-SFF

Frequency Range: 5 to 6 GHz

Gain: 16 dB

Gain Flatness: ±0.08 dB

Noise Figure: 3.18 dB

OP1dB: 22.1 dBm

VSWR: 1.38:1

Input Power: 23 dBm

SMA Female Connectors

Housing: 1.08" x 0.29" x 0.71"

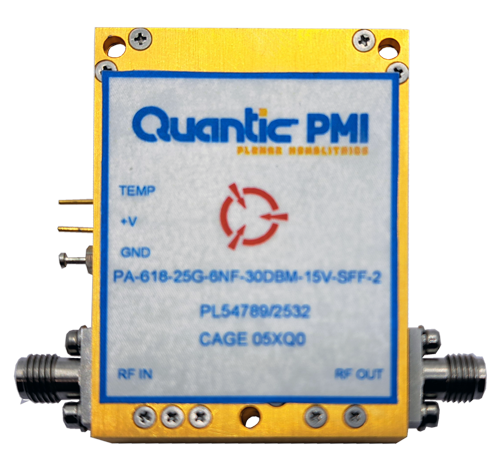

High Power Amplifier

PA-618-25G-6NF-30DBM-15V-SFF-2

Frequency Range:: 6 to 18 GHz

Gain: 24 dB

Gain Flatness: ±0.31 dB

VSWR: 1.84:1

Input Power: 27 dBm

OP1dB: 30 dBm

Noise Figure: 4.49 dB

SMA Female Connectors

Housing: 1.50" x 2.00" x 0.45"

Learn More

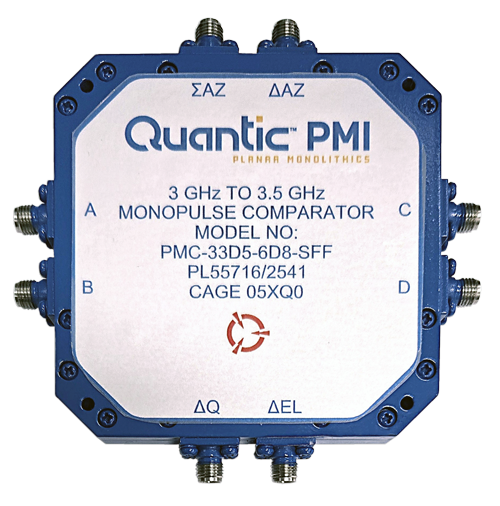

Monopulse Comparator

PMC-33D5-6D8-SFF

Frequency Range: 3 to 3.5 GHz

Insertion Loss (Without 6.02 dB Nominal Split): 0.61 dB

Amplitude Balance: ±0.25 dB

Phase Balance: ±2.97°

Isolation: 26 dB

VSWR: 1.22:1

Power Handling: 10 W

SMA Female Connectors

Housing: 3.23" x 3.23" x 0.43"

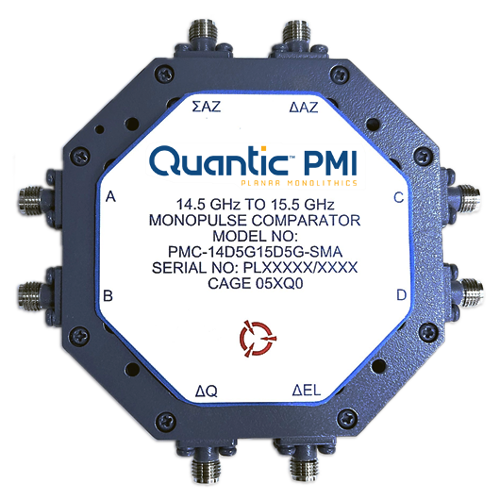

Monopulse Comparator

PMC-14D5G15D5G-SMA

Frequency Range: 14.5 to 15.5 GHz

Insertion Loss (Without 6.02 dB Nominal Split): 2.16 dB

Amplitude Balance: ±0.7 dB

Phase Balance: ±4.09°

Isolation: 22 dB

VSWR: 1.4:1

Power Handling: 30 W

SMA Female Connectors

Housing: 3.12" x 3.12" x 0.43"

Learn More

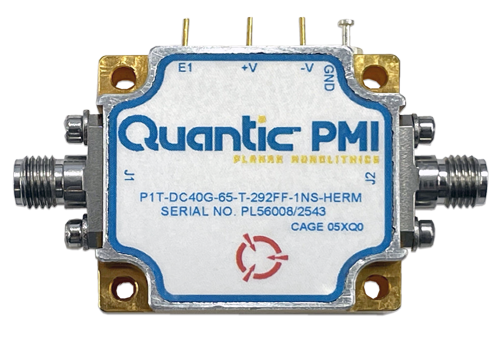

SP1T Absorptive Switch

P1T-DC40G-65-T-292FF-1NS-HERM

Frequency Range: DC to 40 GHz

Isolation: 65 dB

Insertion Loss: 5.5 dB

VSWR: 2.0:1

Input Power: 17 dBm

Switching Speed: 3 ns

Rise/Fall Time: 0.7 ns

2.92mm Female Connectors

Housing: 1.2" x 1.3" x 0.5"

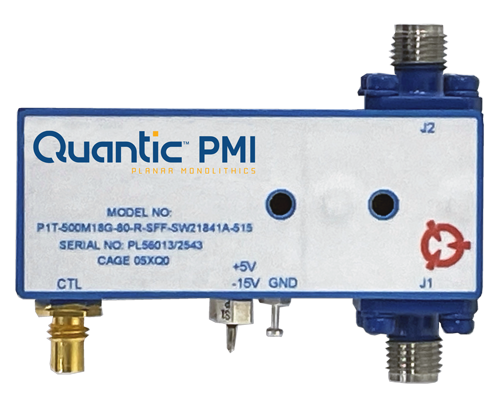

SP1T Reflective Switch

P1T-500M18G-80-R-SFF-SW21841A-515

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 0.7 dB

Isolation: 89 dB

VSWR: 1.23:1

Input Power: 2 W

Rise/Fall Time: 2 ns

Delay On/Off: 20 ns

SMA Female Connectors

Housing: 1.97" x 0.79" x 0.53"

Learn More

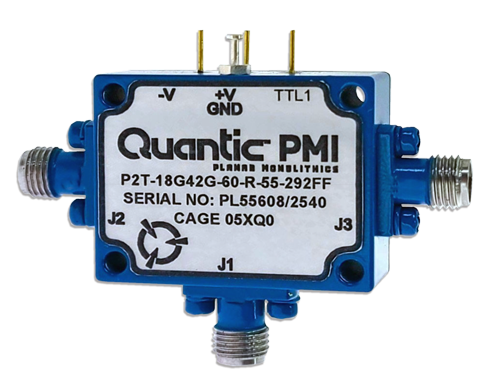

SP2T Reflective Switch

P2T-18G42G-60-R-55-292FF

Frequency Range: 18 to 42 GHz

VSWR: 1.85:1

Insertion Loss: 4.35 dB

Isolation: 60 dB

Input Power: 27 dBm

Harmonic Generation: -30 dBc

Spurious Signals/AM Sidebands: -65 dBc

Switching Speed: 159 ns

Video Transients: 20 mVpp

Video Leakage: -60 dBm

2.92 mm Female Connectors

Housing: 1.20" x 0.95" x 0.46"

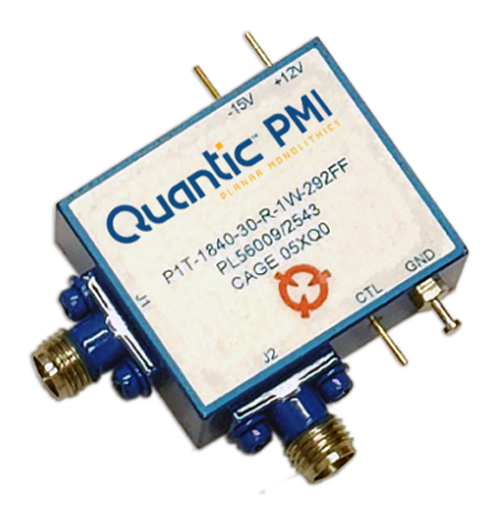

SP1T Reflective Switch

P1T-1840-30-R-1W-292FF

Frequency Range: 18 to 40 GHz

Isolation: 46.5 dB

Insertion Loss: 2.3 dB

VSWR: 1.7:1

RF Survival Power: 30 dBm

Switching Speed: 39.2 ns

2.92mm Female Connectors

Housing: 1.0" x 1.2" x 0.4"

Learn More

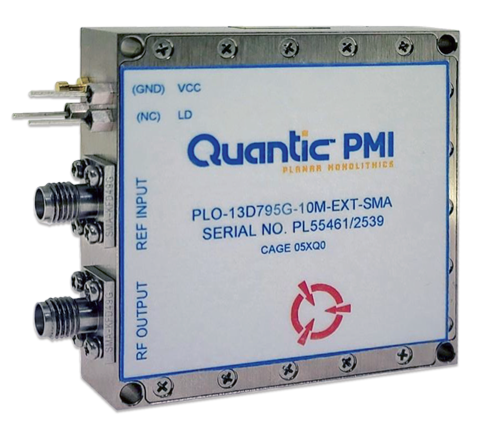

Phase Locked Oscillator

PLO-13D795G-10M-EXT-SMA

Output Frequency: 13.795 GHz

Reference Frequency: 10 MHz

Output Level: 13.3 dBm

Spurious: -60 dBc

Harmonics: -20 dBc

Phase Noise: -80 dBc/Hz @ 1 kHz

Frequency Stability: ±25 ppm

SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

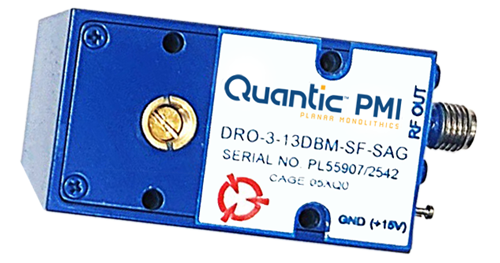

Dielectric Resonator Oscillator

DRO-3-13DBM-SF-SAG

Center Frequency: 3 GHz

Power Output: 13.67 dBm

Mechanical Tuning Range: ±10 MHz

Frequency Stability: ±5 ppm/°C

Phase Noise @ 100 kHz Offset: -95 dBc/Hz

Spurious: -75 dBc

Harmonics: -20 dBc

SMA Female Connectors

Housing: 1.75" x 1.00" x 0.86"

Learn More

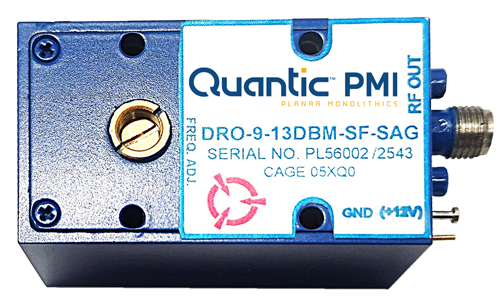

Dielectric Resonator Oscillator

DRO-9-13DBM-SF-SAG

Center Frequency: 9 GHz

Power Output: 11.54 dBm

Mechanical Tuning Range: ±20 MHz

Frequency Stability: ±10 ppm/°C

Phase Noise @ 100 kHz Offset: -80 dBc/Hz

Spurious: -75 dBc

Harmonics: -25 dBc

SMA Female Connectors

Housing: 1.75" x 1.00" x 0.86"

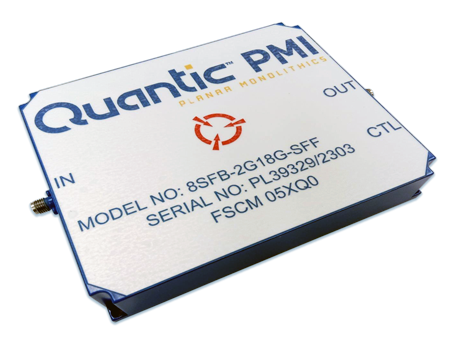

8-Channel Switch Filter Bank

8SFB-2G18G-SFF

Frequency Range: 2 to 18 GHz

Insertion Loss: 6.5 dB

VSWR: 1.7:1

Pass Band Ripple: ±0.5 dB

Rejection: 60 dB

Switching Speed: 200 ns

Input Power: 15 dBm

SMA Female Connectors

Housing: 5.00" x 4.13" x 1.00"

Learn More

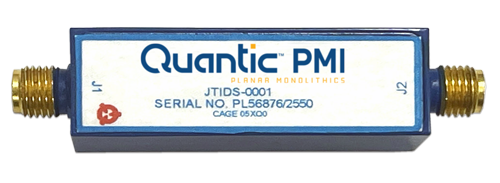

Band Reject Filter

JTIDS-0001

Center Frequency, Fo: 1.085 GHz

Notch Bandwidth: 0.25 GHz

Passband Insertion Loss: 3.68 dB

Passband VSWR: 2.0:1

Input Power: 50 W CW

Rejection: -40 dBc Min @ 0.96 to 1.21 GHz

SMA Female Connectors

Housing: 1.5" x 0.5" x 0.5"

Band Reject Filter

JTIDS-0002

Center Frequency, Fo: 1.09 GHz

Notch Bandwidth: 0.25 GHz

Passband Insertion Loss: 3.18 dB

Passband VSWR: 2.0:1

Input Power: 50 W CW

Rejection: -40 dBc Min @ 0.96 to 1.21 GHz

SMA Female Connectors

Housing: 1.5" x 0.5" x 0.5"

Learn More

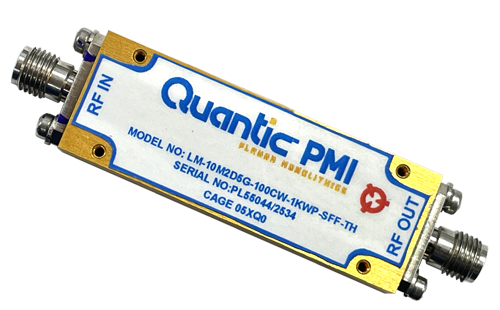

Limiter

LM-10M2D5G-100CW-1KWP-SFF-TH

Frequency Range: 0.01 to 2.5 GHz

Insertion Loss: 0.69 dB

VSWR: 1.22:1

Input Power: 100 W

Flat Leakage: 13 dBm

Recovery Time: 2 µs

SMA Female Connectors

Housing: 1.86" x 0.65" x 0.38"

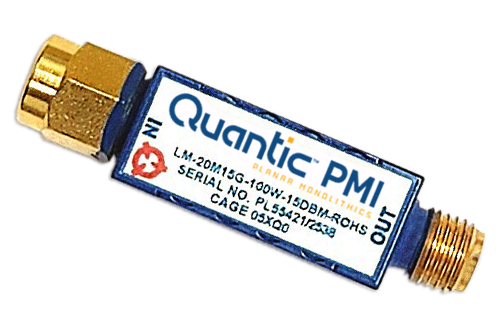

Limiter

LM-20M15G-100W-15DBM-ROHS

Frequency Range: 0.02 to 15 GHz

Insertion Loss: 1.32 dB

VSWR: 1.9:1

RF Power Handling: 100 W

Leakage Power: 15 dBm

Limiting Threshold P1dB: 5 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

Learn More

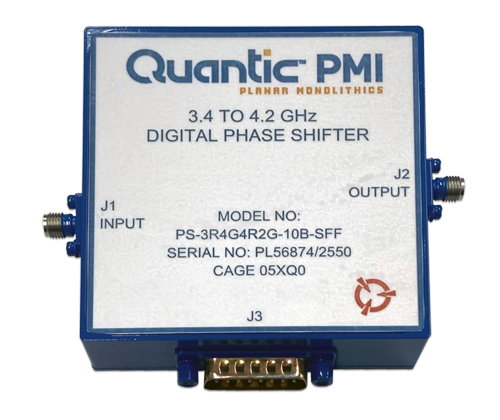

Digital Phase Shifter

PS-3R4G4R2G-10B-SFF

Frequency Range: 3.4 to 4.2 GHz

Control: 10-Bit TTL
Insertion Loss: 6.71 dB

VSWR: 1.38:1

Phase Shift Error: ±1.19°

Phase Flatness: 1.62°

Phase Shift: 360°

SMA Female Connectors

Housing: 3.25" x 3.25" x 0.84"

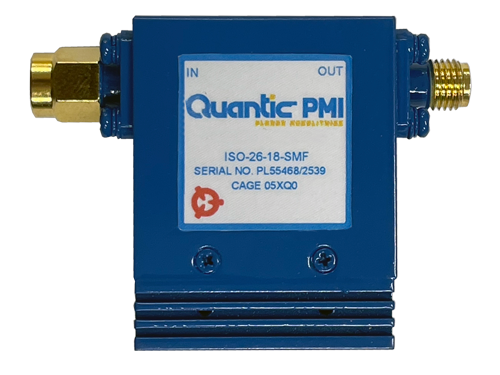

Isolator

ISO-26-18-SMF

Frequency Range: 2 to 6 GHz

Insertion Loss: 0.75 dB

VSWR: 1.48:1

Isolation: 13.46 dB

Forward Power: 100 W

Reverse Power: 100 W

SMA Male/Female Connectors

Housing: 1.20" x 1.51" x 0.59"

Learn More

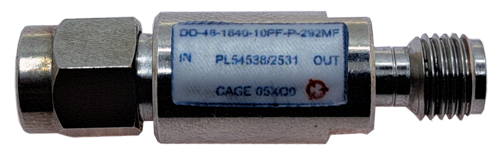

Diode Detector

DD-46-1840-10PF-P-292MF

Frequency Range: 18 to 40 GHz

Voltage Sensitivity: 300 mV/mW

Tangential Sensitivity: -45 dBm

Temperature Sensitivity: ±0.5 dB

Flatness: ±2.37 dB

Rise Time: 5 ns

VSWR: 4.0:1

Output Capacitance: 10 pF

Output Resistance: 50 Ohms

Input Power: 50 mW

2.92 mm Male/Female Connectors

Housing: 1.31" x ∅0.38"

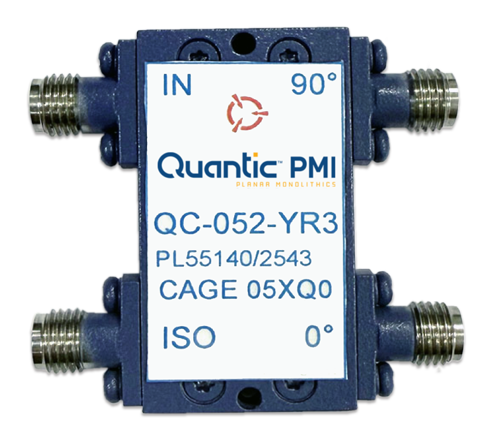

Quadrature Hybrid Coupler

QC-052-YR3

Frequency Range:: 0.5 to 2 GHz

Nominal Split: 3.01 dB

Insertion Loss: 0.3 dB

Isolation: 22.5 dB

VSWR: 1.06:1

Amplitude Balance: 1.38 dB

Phase Balance: 1.6°

SMA Female Connectors

Housing: 0.75" x 1.45" x 0.22"

Learn More

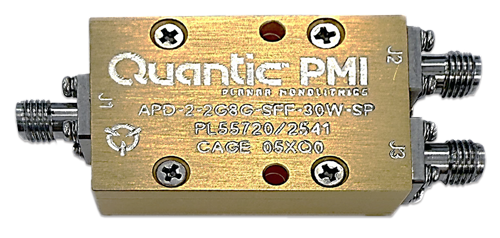

2-Way Power Divider

APD-2-2G8G-SFF-30W-SP

Frequency Range: 2 to 8 GHz

Insertion Loss: 0.5 dB

VSWR: 1.18:1
Isolation: 24.8 dB

Phase Balance: 0.55°

Amplitude Balance: 0.07 dB

Forward Power Handling: 30 W

Reversed Power Handling: 1 W

SMA Female Connectors

Housing: 1.50" x 0.98" x 0.39"

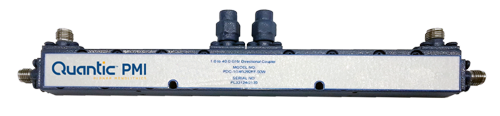

Dual Directional Coupler

PDC-1G40G-292FF-50W

Frequency Range: 1 to 40 GHz

Coupling: 20 dB

Frequency Sensitivity: 0.9 dB

Directivity: 13.4 dB

Insertion Loss: 2.78 dB

VSWR: 1.76:1 (primary), 1.55:1 (secondary)

Power Handling: 50 W

2.92mm Female Connectors

Housing: 5.76" x 0.59" x 0.43"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
