Featured Products

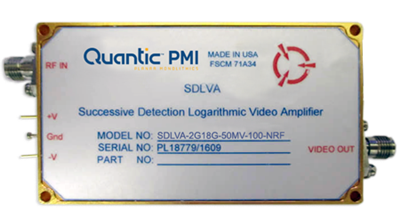

SDLVA

SDLVA-2G18G-50MV-100-NRF

Frequency Range: 2.0 to 18.0 GHz

Flatness: ±1.5 dB

TSS: -71 dBm

VSWR: 1.6:1

Power Input: +17 dBm

Log Range: -67 to +5 dBm

Pulse Range: 30 ns to CW

Rise Time: 8.5 ns

Fall Time: 31.3 ns

Recovery Time: 60 ns

SMA Female Connectors

Housing: 3.20" x 1.80" x 0.40"

Low Noise Amplifier

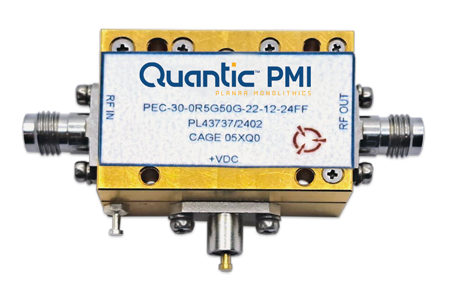

PEC-30-0R5G50G-22-12-24FF

Frequency Range: 0.5 to 50.0 GHz

Gain: 30.91 dB

Gain Flatness: ±3.67 dB

Noise Figure: 6.74 dB

OP1dB: 21.15 dB

PSAT: 23.26 dBm

VSWR: 2.27:1

2.4 mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

Low Noise Amplifier

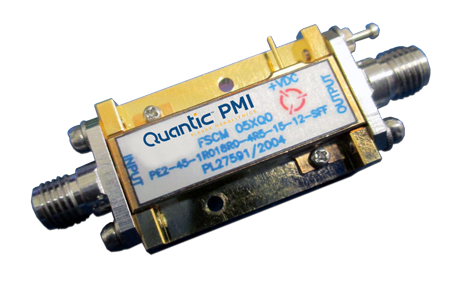

PE2-45-1R018R0-4R5-15-12-SFF

Frequency Range: 1.0 to 18.0 GHz

Gain: 45 dB

Gain Flatness: ±0.83 dB

Noise Figure: 4.22 dB

OP1dB: +15.3 dBm

Output Power: +15.3 dBm

VSWR: 1.56:1

PSAT: +19.5 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PEC-42-1G40G-20-12-292FF

Center Frequency: 1.0 to 40.0 GHz

Gain: 42 dB

Gain Flatness: ±2.5 dB

Noise Figure: 4.5 dB

OP1dB: +19 dBm

PSAT: +23 dBm

VSWR: 1.9:1

Input Power Handling: +17 dBm

2.92 mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

Low Noise Amplifier

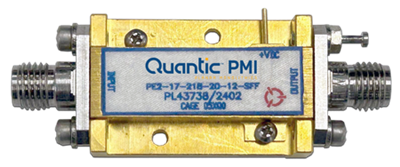

PE2-17-218-20-12-SFF

Frequency Range: 2.0 to 18.0 GHz

Gain: +23.5 dB

Gain Flatness: ±1.62 dB

Noise Figure: 3.94 dB

OP1dB: +21.2 dBm

VSWR: 1.81:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

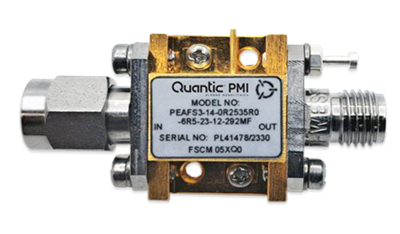

PEAFS3-14-0R2535R0-6R-23-12-292MF

Frequency Range: 8.0 to 18.0 GHz

Gain: 13 dB

Gain Flatness: ±0.22 dB

Noise Figure: 4.71 dB

OP1dB: 26.8 dBm

VSWR: 1.93:1

SMA Male/Female Connectors

Housing: 0.53" x 0.70" x 0.26"

8-Bit Digital Phase Shifter

PS-200M4G-8B-SFF

Frequency Range: 0.2 to 4.0 GHz

Insertion Loss: 8.1 dB

Phase Shift: 360°

Phase Accuracy: 0.2°

Switching Speed: 500 ns

SMA Female Connectors

Housing: 3.25" x 3.25" x 0.84"

10-Bit Programmable Attenuator

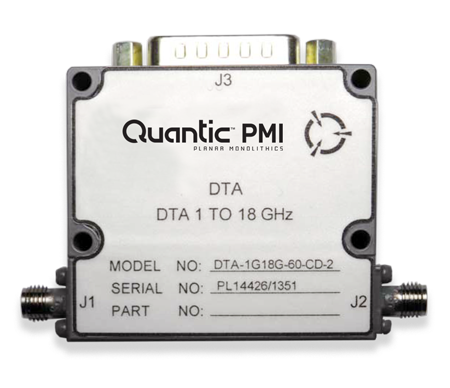

DTA-1G18G-60-CD-2

Frequency Range: 1.0 to 18.0 GHz

Insertion Loss: 4.5 dB

VSWR: 1.8:1

Flatness: ±0.58 dB

Accuracy of Attenuation: ±0.66 dB

Switching Speed: 1 us

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.88"

8-Bit Programmable Attenuator

PDVAN-8018-60-8-OPT25DBM

Frequency Range: 8.0 to 18.0 GHz

Mean Attenuation Range: 63 dB

LSB: 0.09 dB

Insertion Loss: 2.8 dB

VSWR: 1.7:1

Power Rating: +25 dBm

Attenuation Flatness: ±0.3 dB

Switching Speed: 800 ns

SMA Female Connectors

Housing: 2.00" x 1.80" x 0.50"

Monotonic Programmable Attenuator

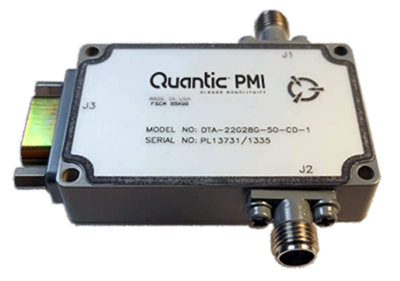

DTA-22G28G-50-CD-1

Frequency Range: 22.5 to 27.5 GHz

Attenuation Range: 0 to 51.175 dB

Insertion Loss: 3.2 dB

VSWR: 1.5:1

Flatness: ±0.68 dB

Accuracy of Attenuation: ±0.42 dB

Switching Speed: 500 ns

2.92mm Female Connectors

Housing: 1.80" x 1.15" x 0.40"

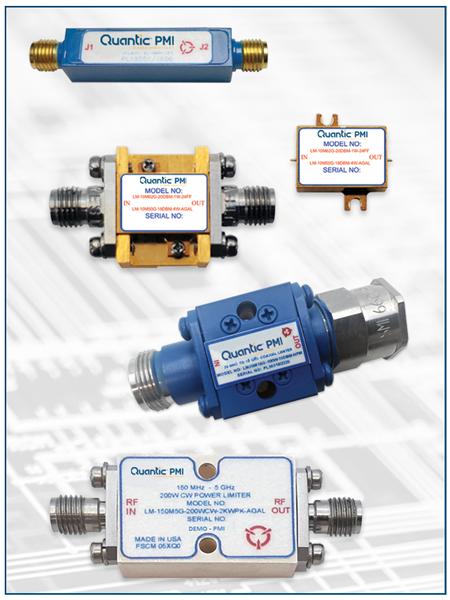

High Power Limiter

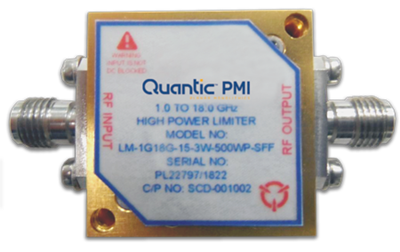

LM-1G18G-15-3W-500WP-SFF

Frequency Range: 1.0 to 18.0 GHz

Insertion Loss: 2.12 dB

Recovery Time: 100 ns

VSWR: 1.87:1

RF Power Handling: 3 W

Limiting Threshold: +12 dBm

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

SP2T Absorptive Switch

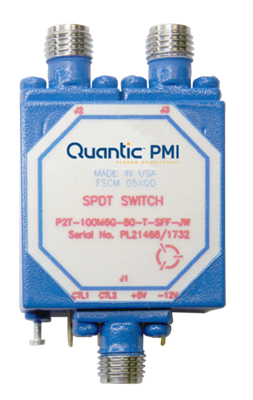

P2T-100M6G-80-T-SFF-JW

Frequency Range: 0.1 to 6.0 GHz

Insertion Loss: 1.93 dB

Isolation: 80 dB

VSWR: 1.24:1

Switching Speed: 150 ns

Operating Input Power: +23 dBm

Survival Input Power: +33 dBm

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.50"

SP2T Reflective Switch

P2T-1840-60-R-1W-292FF

Frequency Range: 18.0 to 40.0 GHz

Insertion Loss: 3.25 dB

Operating Power: 1 W

VSWR: 1.8:1

Isolation: 61.9 dB

Switching Speed: 100 ns

2.92 mm Female Connectors

Housing: 1.00" x 1.20" x 0.40"

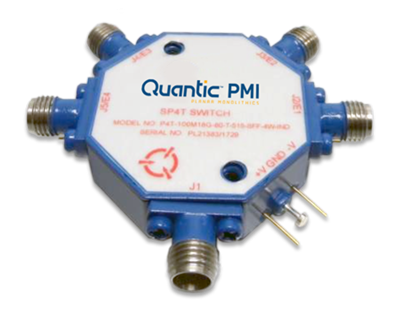

SP4T Absorptive Switch

P4T-100M18G-80-T-515-SFF-4W-IND

Frequency Range: 0.1 to 18.0 GHz

Insertion Loss: 4.47 dB

Isolation: 85.6 dB

VSWR: 1.82:1

Switching Speed: 200 ns

Operating Power: 36 dBm

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.40"

SP16T Absorptive Switch

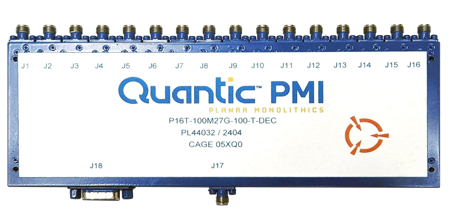

P16T-100M27G-100-T-DEC

Frequency Range: 0.1 to 27.0 GHz

Insertion Loss: 6.98 dB

VSWR: 2.36:1

Isolation: 99.8 dB

Input Power: 20 dBm

Switching Speed: 100 ns

2.92mm Female Connectors

Housing: 8.00" x 3.00" x 0.67"

Integrated RF Module

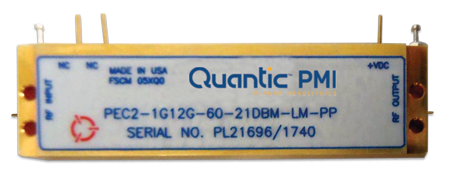

PEC2-1G12G-60-21DBM-LM-PP

Frequency Range: 1.0 to 12.0 GHz

Input Power: -61 to +15 dBm

Output Power: +23.1 dBm

Noise Figure: 8 dB

Spurious Rejection: -60 dBc

Harmonic Rejection: -10 dBc

VSWR: 2.0:1

D 0.015" Pins

Housing: 2.98" x 0.78" x 0.26"

Low Leakage Limiter

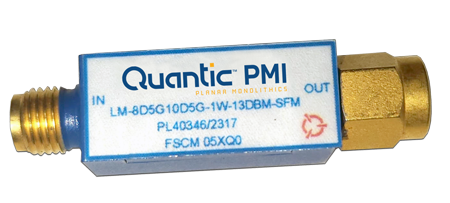

LM-8D5G10D5G-1W-13DBM-SFM

Frequency Range: 8.5 to 10.5 GHz

Insertion Loss: 1.04 dB

VSWR: 1.54:1

Leakage: +13 dBm

Input Power: 30 dBm

Limiting Threshold: +7 dBm

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

Notch Filter

BR2G315R2G35R-SFF

Stop Band Frequency: 2.315 to 2.35 GHz

Stop Band Attenuation: 60.18 dB

Pass Band Insertion Loss: 1.1 dB

VSWR: 1.63:1

Input Power: 1 W

SMA Female Connectors

Housing: 12.59" x 2.17" x 1.50"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
