Quantic PMI (Planar Monolithics) Products in Action

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

Featured Products

Learn More

Solid State Power Amplifier (SSPA)

PA-2040-22G-8W-18V-292FF

Frequency Range: 20 to 40 GHz

Gain: 22 dB

Gain Flatness: ±2.58 dB

VSWR: 1.92:1

PSAT: 8 W

Noise Figure: 10 dB

2.92mm Female Connectors

Housing: 1.5" x 2.5" x 0.4"

Image Reject Mixer

IRMX-2G4G-55-35-SFF-LOW

LO & Frequency Range: 2 to 4 GHz

LO Power: 15 dBm

LO VSWR: 1.5:1

RF VSWR: 2.5:1

Noise Figure: 10 dB

Input IP2: 64 dBm

Input IP3: 17 dBm

Input P1dB: 6 dBm

LO-RF Isolation: 55 dB

LO-IF Isolation: 45 dB

Image Rejection: 35 dB

RF/IF Input Power w/o Damage: 25 dBm

SMA Female Connectors

Housing: 2.85" x 2.85" x 0.63"

Learn More

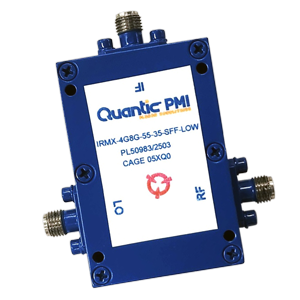

Image Reject Mixer

IRMX-4G8G-55-35-SFF-LOW

Frequency Range: 4 to 8 GHz

LO Power: 15 dBm

LO VSWR: 1.4:1

RF VSWR: 2.0:1

Conversion Loss: 7.5 dB

Noise Figure: 8 dB

Input IP3: 24 dBm

Input P1dB: 14 dBm

LO-RF Isolation: 55 dB

LO-IF Isolation: 55 dB

Image Rejection: 35 dB

RF/IF Input Power w/o Damage: 23 dBm

SMA Female Connectors

Housing: 1.35" x 2.00" x 0.58"

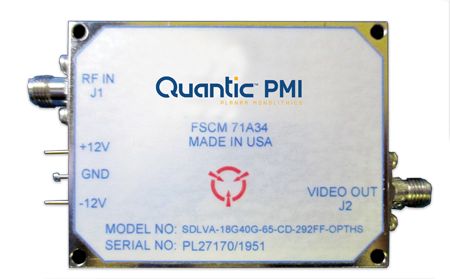

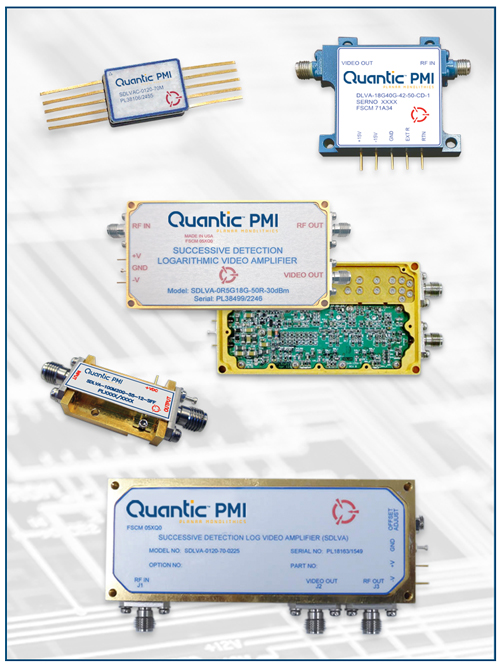

Log Video Amplifier

SDLVA-18G40G-65-CD-292FF-OPTHS

Frequency Range: 18 to 40 GHz

TSS: -65 dBm

Input Power Handling: 10 dBm

Video Log Range: -63 to +2 dBm

Video Log Linearity: 1.81 dB

Video Log Slope: 25 mV/dB

Video Frequency Flatness: 1.9 dB

Pulse Width Range: 25 ns to CW

Video Rise Time: 7 ns

Recovery Time: 60 ns

Delay Time: 15 ns

VSWR: 2.02:1

2.92mm Female Connectors

Housing: 2.37" x 1.80" x 0.42"

Learn More

Low Cost Amplifier

PBB-28-218-20-LCA

Frequency Range: 2 to 18 GHz

Gain: 28 dB

Gain Flatness: ±1.89 dB

Noise Figure: 3 dB

OP1dB: 20 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PE2-NC-15-0R2518R0-5R0-22-12-SFF

Frequency Range: 0.25 to 18 GHz

Gain: 15 dB

Gain Flatness: ±1.37 dB

Noise Figure: 5 dB

OP1dB: 22 dBm

Max Input Power: 23 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Learn More

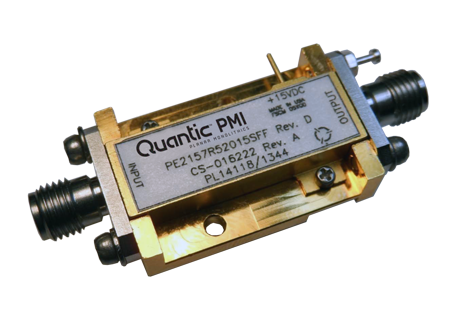

Low Noise Amplifier

PE2157R52015SFF Rev. D

Frequency Range: 7.5 to 20.25 GHz

Small Signal Gain Window: 14.5 to 17.5 dB

Gain Flatness: ±0.55 dB

Noise Figure: 4.76 dB

OP1dB: 20.7 dBm

Input IP3: 24.1 dBm

VSWR: 1.96:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

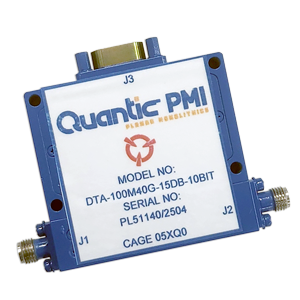

Digital Attenuator

DTA-100M40G-15DB-10BIT

Frequency Range: 0.1 to 40 GHz

Mean Attenuation Range: 16 dB

Insertion Loss: 3 dB

VSWR: 2.04:1

Accuracy of Attenuation: ±0.13 dB

Minimum Attenuation Step: 0.015625 dB

Switching Speed: 0.234 µs

2.92mm Female Connectors

Housing: 2.0" x 1.8" x 0.5"

Learn More

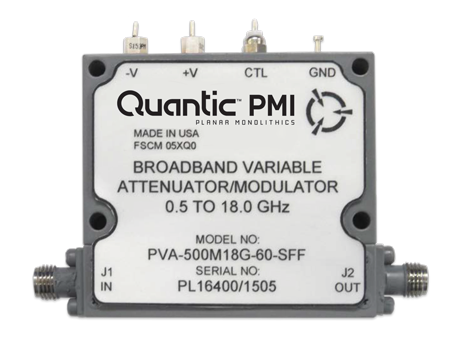

Analog Attenuator

PVA-500M18G-60-SFF

Passband Frequency: 0.5 to 18 GHz

Insertion Loss: 4.1 dB

VSWR: 2.0:1

Attenuation Flatness: ±2.33 dB

Attenuation Accuracy: ±0.66 dB

Rise/Fall Time: 2 us

RF Operating Power: 20 dBm

RF Survival Power: 30 dBm

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.50"

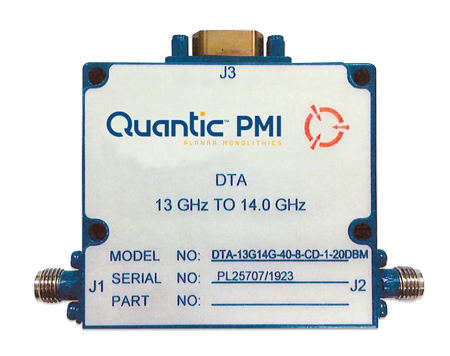

Digital Attenuator

DTA-13G14G-40-8-CD-1-20DBM

Frequency Range: 13 to 14 GHz

Insertion Loss: 3.2 dB

VSWR: 1.7:1

Step Size: 0.25 dB

Adjustment Step Size Accuracy: ±0.11 dB

Phase Variation vs Attenuation Step Size: 1.4°/dB

Input 0.1 dB Compression Point: 20 dBm

Monotonicity: Guaranteed

Switching Speed: 1 us

SMA Female Connectors

Housing: 2.0" x 1.8" x 0.5"

Learn More

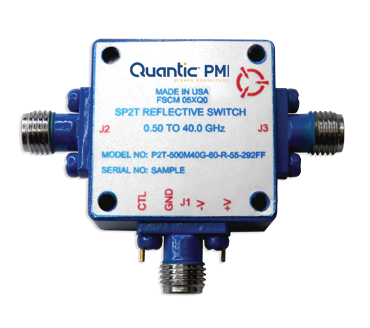

SP2T Reflective Switch

P2T-500M40G-60-R-55-292FF

Frequency Range: 0.5 to 40 GHz

Insertion Loss: 3.93 dB

Isolation: 59.51 dB

VSWR: 2.41:1

Switching Speed: 15 ns

Input Power: 20 dBm

Survival Power: 1 W Peak 1 us

2.92mm Female Connectors

Housing: 1.0" x 1.0" x 0.5"

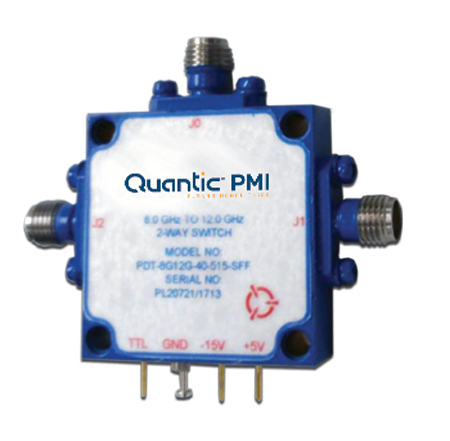

SP2T High Power Switch

PDT-8G12G-40-515-SFF

Frequency Range: 8 to 12 GHz

Insertion Loss: 1.74 dB

VSWR: 1.48:1

Switching Speed: 200 ns

Input Power: 40 dBm

Operating Peak Power: 57 dBm

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.30"

Learn More

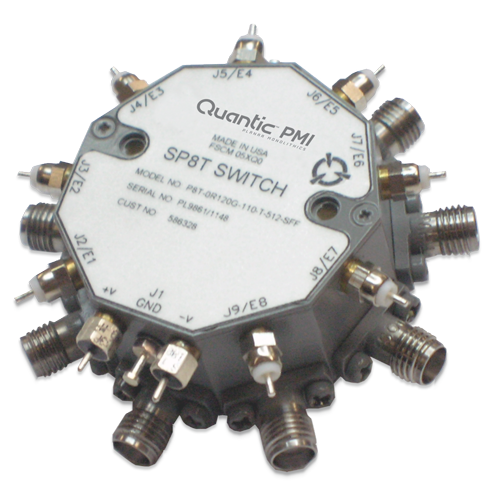

SP8T Absorptive Switch

P8T-0R120G-110-T-512-SFF

Frequency Range: 0.1 to 20 GHz

Insertion Loss: 5.1 dB

Isolation: 111.3 dB

VSWR: 1.99:1

Switching Speed: 80 ns

Input Power: 30 dBm

SMA Female Connectors

Housing: 1.5" x 1.5" x 0.7"

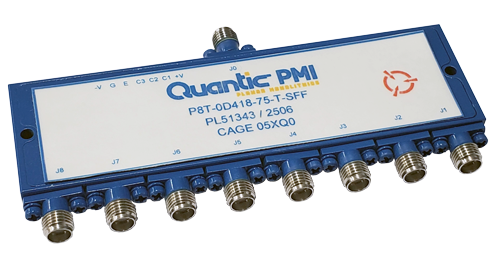

SP8T Absorptive Switch

P8T-0D418-75-T-SFF

Frequency Range: 0.4 to 18 GHz

Isolation: 77.9 dB

Insertion Loss: 3.29 dB

Return Loss Output/Off: -10 dB (VSWR 1.81:1)

Rise/Fall Time: 12.4 ns

Switching Speed: 78.2 ns

Survival Power: 1 W

SMA Female Connectors

Housing: 4.02" x 1.18" x 0.39"

Learn More

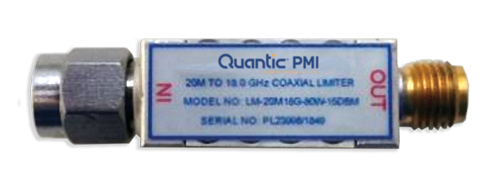

Limiter

LM-20M15G-100W-15DBM

Frequency Range: 0.02 to 15 GHz

Insertion Loss: 1.58 dB

VSWR: 1.96:1

RF Power Handling: 100 W CW

Peak Power: 1 kW, 1 µs PW, 0.1% Duty Cycle

Leakage Power: 15 dBm

P1dB: 6 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

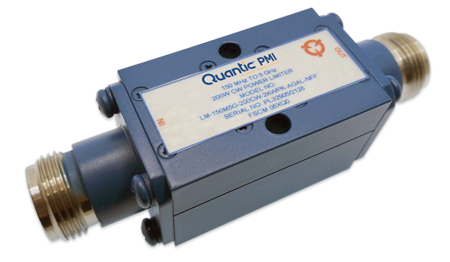

Limiter

LM-150M5G-200CW-2KWPK-AGAL-NFF

Frequency Range: 0.15 to 5 GHz

Insertion Loss: 1.5 dB

VSWR: 1.61:1

CW Power Handling: 200 W

Peak Power Handling: 2 kW

Flat Leakage: 20 dBm

P1dB: 8 dBm

Recovery Time: 100 ns

N Female Connectors

Housing: 1.5" x 1.0" x 1.0"

Learn More

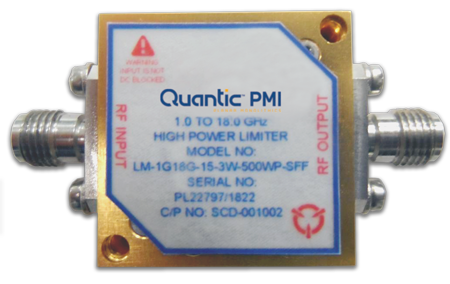

Limiter

LM-1G18G-15-3W-500WP-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.12 dB

Recovery Time: 100 ns

VSWR: 1.87:1

RF Power Handling: 3 W

Limiting Threshold: 17 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

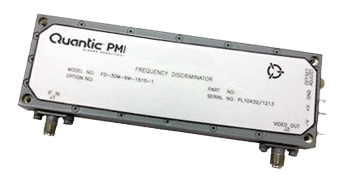

Frequency Discriminator

FD-30M-6M-1515-1

Center Frequency: 0.03 GHz

Peak to Peak Bandwidth: 0.01 GHz

Linear Bandwidth: 0.06 GHz

Sensitivity: 999.7 mV/MHz

Linearity: ±3.1%

Input VSWR: 1.06:1

Input Dynamic Range: -10 to 0 dBm

Rise Time: 120 ns

Pulse Width: 1 us

Pulse Repetition: 1 kHz

SMA Female Connectors

Housing: 4.625" x 1.500" x 0.470"

Learn More

Bandpass Filter

8C10D2G-300-CD-SFF

Center Frequency: 10.2 GHz

3 dB Bandwidth: 0.3 GHz

Pass Band VSWR: 1.25:1

Pass Band Insertion Loss: 1.98 dB

Rejection: 80 dB

SMA Female Connectors

Housing: 2.44" x 0.40" x 0.40"

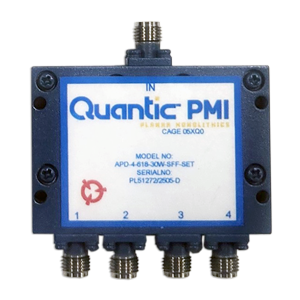

4-Way Power Divider

APD-4-618-30W-SFF

Frequency Range: 6 to 18 GHz

Insertion Loss: 0.8 dB

VSWR: 1.34:1 dB

Isolation: 20.7 dB

Amplitude Balance: 0.09

Phase Balance: 2.77°

SMA Female Connectors

Housing: 1.99" x 1.40" x 0.39"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
