Featured Products

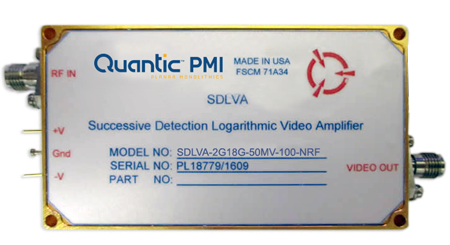

Successive Detection Logarithmic Video Amplifier

SDLVA-2G18G-50MV-100-NRF

Frequency Range: 2.0 to 18.0 GHz

Flatness: ±1.2 dB

TSS: -69 dBm

VSWR: 1.5:1

Power Input: +17 dBm

Log Range: -67 to +5 dBm

Log Linearity: ±1 dB

Pulse Range: 30 ns to CW

Rise Time: 6 ns

Fall Time: 40 ns

Recovery Time: 60 ns

SMA Female Connectors

Housing: 3.20" x 1.80" x 0.40"

Extended Dynamic Range Detector Log Video Amplifier

GMDA-D1007

Frequency Range: 0.5 to 2.0 GHz

Flatness: 0.14 dB

Input VSWR: 1.8:1

Video Rise Time: 16.3 ns

Recovery Time: 0.069 us

Throughput Time: 19 ns

SMA Female Connectors

Housing: 3.50" x 3.20" x 0.50"

CW Immune Extended Range Detector Log Video Amplifier

ERDLVA-2G6G-70-50MV

Frequency Range: 2.0 to 6.0 GHz

Frequency Flatness: ±0.58 dB

Output Noise Level: 147 mV P-P

Dynamic Range: 70 dB

TSS: -71 dBm

Log Dynamic Range: -65 to +5 dBm

Log Linearity: 0.85 dB

Log Accuracy: 1.33 dB

Settling Time: 33 ns

Recovery Time: 230 ns

VSWR: 1.22:1

Max Input Level: +20 dBm

SMA Female Connectors

Housing: 1.90" x 1.50" x 0.31"

Dual Gain Amplifier

PEC-40/25-218-21-12-SFF-TTLVG

Frequency Range: 2.0 to 18.0 GHz

Gain: 42.67 dB

OP1dB: 21.6 dBm

Saturated Output Power: 27.6 dBm

Noise: 3.4 dB

VSWR: 1.92:1

Input Power: +20 dBm

In-Band Harmonics: -10 dBc

Pulse Rise Time: 5 ns

Pulse Overshoot: 0.5 dB

SMA Female Connectors

Housing: 2.540" x 1.000" x 0.383"

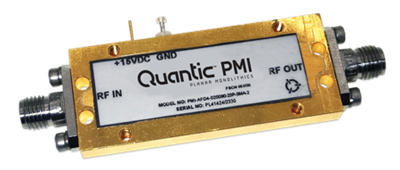

High Input P1dB Broadband Amplifier

PMI-AFD4-020080-23P-SMA-2

Frequency Range: 2.0 to 8.0 GHz

Gain: 34.5 dB

Gain Flatness: ±0.74 dB

Input P1dB: -5 dBm

Noise Figure: 3.9 dB

VSWR: 1.83:1

SMA Female Connectors

Housing: 1.83" x 0.76" x 0.20"

Low Noise Amplifier

PEC-20-200M6G-3R0-25-SFF

Frequency Range: 0.2 to 6.0 GHz

Gain: 20.7 dB

Gain Flatness: ±1.5 dB

Noise Figure: 3.5 dB

OP1dB: 25.3 dBm

VSWR: 1.8:1

SMA Female Connectors

Housing: 1.92" x 0.78" x 0.36"

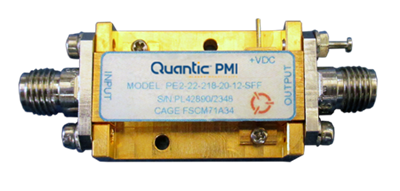

Low Noise Amplifier

PE2-22-218-20-12-SFF

Frequency Range: 2.0 to 18.0 GHz

Gain: 29.3 dB

Flatness: ±1.4 dB

Noise Figure: 4.2 dB

OP1dB: +20.7 dBm

VSWR: 1.62:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PE2-15-10R020R0-4R5-20-12-SFF

Frequency Range: 10.0 to 20.0 GHz

Gain: +20.5 dB

Gain Flatness: ±0.77 dB

Noise Figure: 4.37 dB

OP1dB: +20.3 dBm

VSWR: 1.79:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

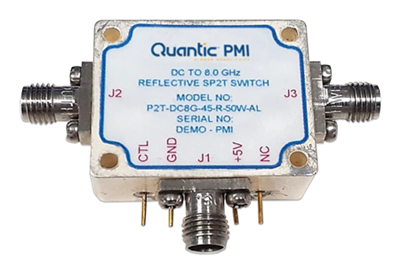

50 W CW SP2T Reflective Switch

P2T-DC8G-45-R-50W-AL

Frequency Range: DC to 8.0 GHz

RF Input Power: 50 W

Insertion Loss: 0.96 dB

Isolation: 56 dB

VSWR: 1.14:1

Switching Speed: 100 ns

SMA Female Connectors

Housing: 1.20" x 1.00" x 0.50"

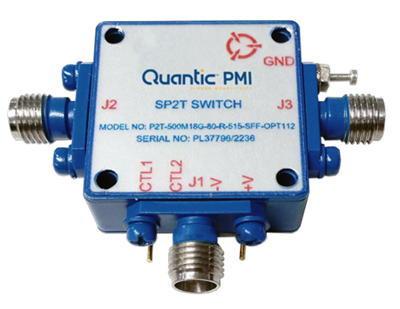

SP2T Reflective Switch

P2T-500M18G-80-R-515-SFF-OPT112

Center Frequency: 1.0 to 12.0 GHz

Isolation: 96.8 dB

Insertion Loss: 1.74 dB

VSWR: 1.53:1

Operating Power: 25 dBm

Switching Speed: 100 ns

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

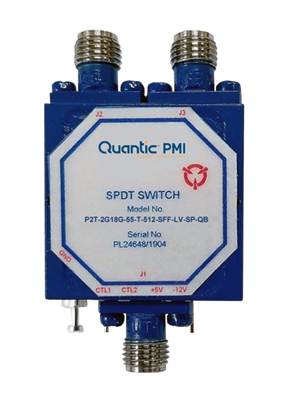

SP2T Absorptive Switch

P2T-2G18G-55-T-512-SFF-LV-SP-QB

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 2.87 dB

Isolation: 75 dB

VSWR: 1.9:1

Input Power: 23 dBm

Switching Speed: 50 ns

Video Leakage: 50 mV P-P

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.50"

SP2T Absorptive Switch

P2T-8G12G-70-T-SFF

Frequency Range: 8.0 to 12.0 GHz

Insertion Loss: 2.07 dB

Isolation: 71 dB

VSWR: 1.68:1

Switching Speed: 100 ns

Input Power: +20 dBm

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

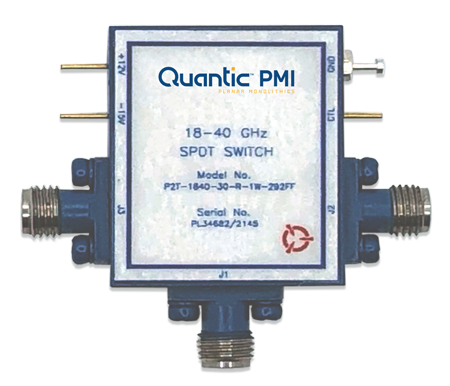

SP2T Reflective Switch

P2T-1840-30-R-1W-292FF

Frequency Range: 18.0 to 40.0 GHz

Insertion Loss: 2.5 dB

Operating Power: 1 W

VSWR: 1.87:1

Isolation: 45.4 dB

Switching Speed: 100 ns

2.92mm Female Connectors

Housing: 1.00" x 1.20" x 0.40"

SP2T Reflective Switch

P2T-1840-60-R-1W-292FF

Frequency Range: 18.0 to 40.0 GHz

Insertion Loss: 3.18 dB

Operating Power: 1 W

VSWR: 2.0:1

Isolation: 62.7 dB

Switching Speed: 100 ns

2.92mm Female Connectors

Housing: 1.00" x 1.20" x 0.40"

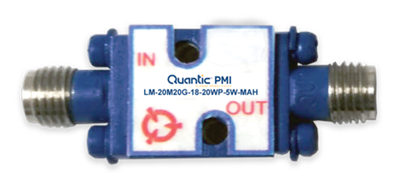

Limiter

LM-20M20G-18-20WP-5W-MAH

Frequency Range: 0.02 to 20.0 GHz

Insertion Loss: 1.58 dB

VSWR: 1.83:1

Max Input Power: 5 W

Max Pulse Peak Power Handling: 20 W Peak

Max Flat Leakage: 18 dBm

P1dB: 5 dBm

Recovery Time: 25 ns

SMA Female Connectors

Housing: 0.50" x 0.50" x 0.22"

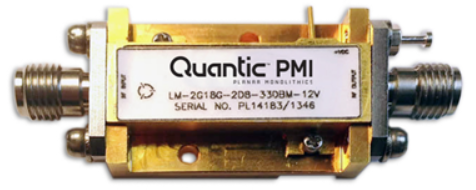

Biased Limiter

LM-2G18G-2D8-33DBM-12V

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 1.44 dB

Max Input Power: 33 dBm

Output Leakage Power: 1.84 dBm

VSWR: 1.59:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

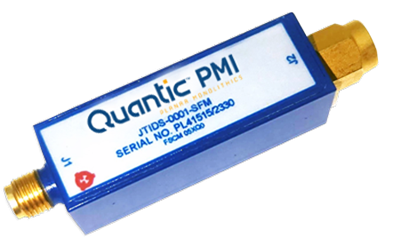

Band Reject Filter

JTIDS-0001-SFM

Center Frequency: 1.085 GHz

Notched Bandwidth: 0.25 GHz

Passband Insertion Loss: 3.85 dB

Passband VSWR: 2.0:1

Rejection: 44.65 dBc

SMA Female/Male Connectors

Housing: 1.50" x 0.50" x 0.50"

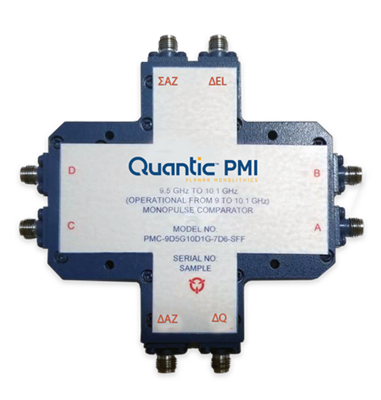

Monopulse Comparator

PMC-9D5G10D1G-7D6-SFF

Frequency Range: 9.5 to 10.1 GHz

Insertion Loss: 7.08 dB

Amplitude Balance: 0.35 dB

Phase Balance: ±4.22°

Isolation: 21 dB

VSWR: 1.42:1

Power Handling: 10 W

SMA Female Connectors

Housing: 3.48" x 3.48" x 0.43"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
