Featured Products

Limiter

LM-1D2G1D4G-4KW-20DBM-SFM

Frequency Range: 1.2 to 1.4 GHz

Power Handling: 10 W peak (1 ms PW, 36% Duty Cycle)

Rise Time: 10 ns

Insertion Loss: 0.4 dB

Return Loss: 19.98 dB

Spike Leakage: 17.77 dBm

Flat Leakage: 15.61 dBm

SMA Male/Female Connectors

Housing: 2.31" x 1.10" x 0.80"

I/Q Vector Modulator

PIQ-2G18G-360-16-CD-2

Frequency Range: 2 to 18 GHz

Insertion Loss: 16.96 dB

VSWR: 2.1:1

Attenuation vs. Frequency: ±2.85 dB

Phase vs. Frequency: ±12.94°

SMA Female Connectors

Housing: 4.25" x 3.50" x 1.00"

Digital Phase Shifter

PS-360-2433D5-6-SFF-1

Frequency Range: 24335.5 MHz ± 1 MHz

Control: 6-Bit TTL

Insertion Loss: 5.1 dB

VSWR: 1.5:1

Phase Accuracy: 4°

Switching Speed: 150 ns

Input Power: 500 mW

Survival Power: 33 dBm

SMA Female Connectors

Housing: 2.0" x 2.1" x 0.5"

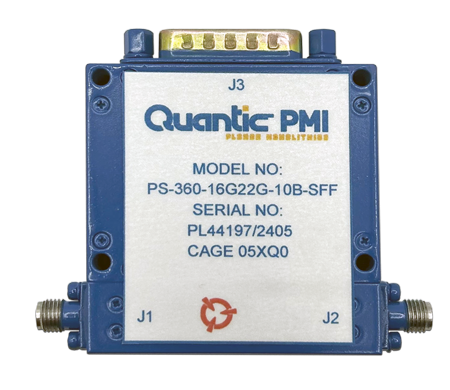

Digital Phase Shifter

PS-360-16G22G-10B-SFF

Frequency Range: 16 to 22 GHz

Control: 10-Bit TTL

Insertion Loss: 10.73 dB

VSWR: 1.79 dB

Phase Accuracy: 2.3°

Switching Speed: 500 ns

Operating Power: 20 dBm

Survival Power: 25 dBm

SMA Female Connectors

Housing: 2.0" x 2.1" x 0.5"

Portable Amplifier

PLNA-35-100M18G-P1dB24-120VAC

Frequency Range: 0.1 to 18 GHz

Gain: 36.51 dB

Gain Flatness: ±2.47 dB

Noise Figure: 4.5 dB

OP1dB: 25.16 dBm

VSWR: 1.7:1

Maximum RF Input: 10 dB

N Female Connectors

Housing: 3.50" x 3.50" x 1.75"

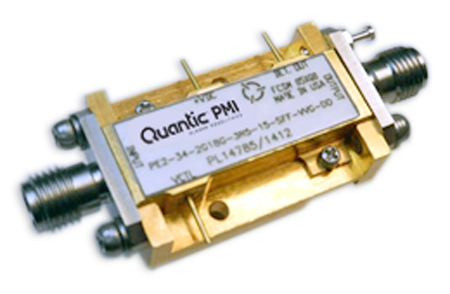

Variable Gain Amplifier

PE2-34-2G18G-3R5-15-SFF-VVG-DD

Frequency Range: 2 to 18 GHz

Linear Gain: 34.8 dB

Gain Flatness: ±0.6 dB

Noise Figure: 3 dB

OP1dB: 13.1 dBm

Gain Control: 25.96 dB

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Analog Attenuator

PVA-500M18G-60-SFF

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 3.9 dB

VSWR: 1.8:1

Attenuation Flatness: ±1.72 dB

Attenuation Accuracy: 0.87 dB

Rise/Fall Time: 2 us

RF Operating Power: 20 dBm

RF Survival Power: 30 dBm

Control: 10 dB/Volt - Analog Control

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.50"

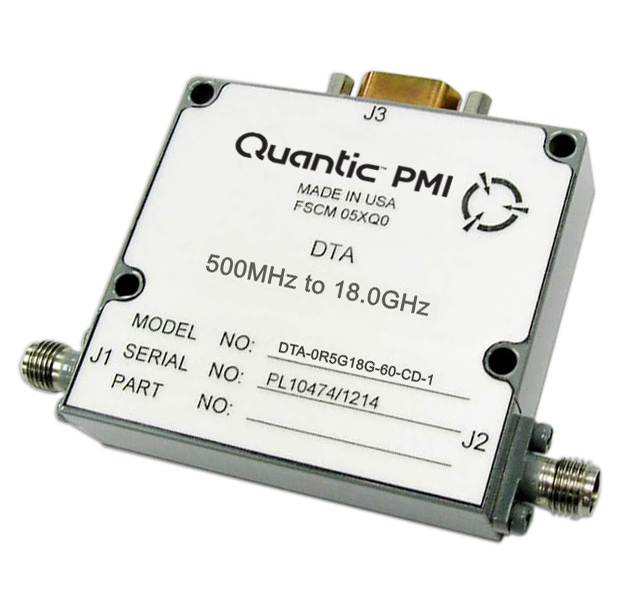

Digital Attenuator

DTA-0R5G18G-60-CD-1

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 4.3 dB

VSWR: 1.7:1

Flatness: ±0.88 dB

Accuracy of Attenuation: ±0.33 dB

Switching Speed: 0.5 us

SMA Female Connectors

Housing: 2.0" x 1.8" x 0.5"

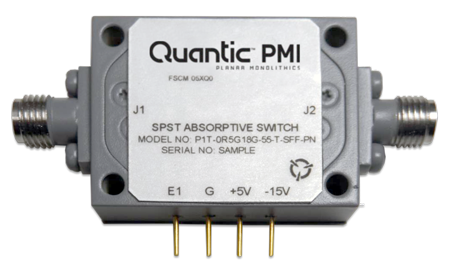

SP1T Absorptive Switch

P1T-0R5G18G-55-T-SFF-PN

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 3.06 dB

Isolation: 70 dB Typ / 55 dB Min

VSWR: 1.8:1

Switching Speed: 100 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.20" x 0.90" x 0.35"

SP2T Absorptive Switch

P2T-500M18G-80-T-515-SFF-4W-ST

Frequency Range: 0.5 to 18 GHz

Isolation: 83.1 dB

Insertion Loss: 3.01 dB

VSWR: 1.71:1

Operating Power: 4 W

Operating Power Peak: 20 W

Switching Speed: 60 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

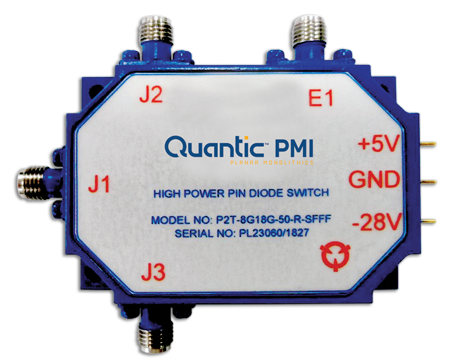

SP2T Reflective Switch

P2T-8G18G-50-R-SFFF

Passband Frequency: 8 to 18 GHz

Insertion Loss: 2.82 dB

Isolation: 54 dB

VSWR: 1.77:1

Switching Speed: 50 ns

Operational Input Power: 40 W

Peak Power: 300 W

Pulse Width: 10 us

SMA Female Connectors

Housing: 2.30" x 1.55" x 0.50"

SP4T Absorptive Switch

P4T-500M18G-80-T-SFF-IND-1

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 2.3 dB

Isolation: 83.69 dB

VSWR: 1.9:1

Switching Speed: 25 ns

Input Power: 20 dBm

Survival Power: 23 dBm

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.40"

SP8T Absorptive Switch

P8T-100M40G-95-T-512-292FF-IND

Frequency Range: 0.1 to 40 GHz

Isolation: 93.6 dB

Insertion Loss: 4.85 dB

VSWR: 2.47:1

Operating Input Power: 20 dBm

Switching Speed: 100 ns

2.92 mm Female Connectors

Housing: 4.0" x 1.5" x 0.4"

SP20T Absorptive Switch

P20T-4G8G-80-T-515-SFF-HERM

Frequency Range: 4 to 8 GHz

Isolation: 87.8 dB

Insertion Loss: 3.9 dB

VSWR: 1.79:1

Operating Power: 0.1 W

Switching Speed: 2000 ns

SMA Female Connectors

Housing: 4.00" x 4.00" x 0.63"

Limiter

LM-10M18G-16-20W-AL-ROHS

Frequency Range: 0.01 to 18 GHz

Insertion Loss: 1.56 dB

Leakage Power: 17 dBm

Recovery Time: 250 ns

VSWR: 1.81:1

RF Power Handling: 20 W

Limiting Threshold: 8 dBm

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

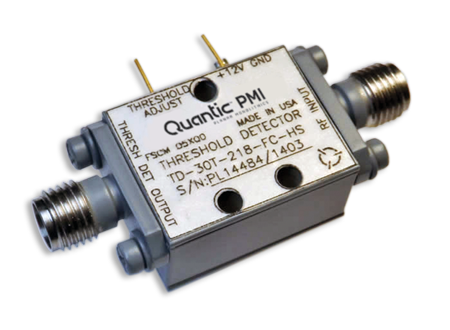

Threshold Detector

TD-30T-218-FC-HS

Frequency Range: 2 to 18 GHz

VSWR: 2.7:1

Dynamic Range: -20 to -10 dBm

Threshold Variation Frequency: ±1.5 dB

Propagation Delay On/Off: 100 ns

SMA Female Connectors

Housing: 0.80" x 0.62" x 0.40"

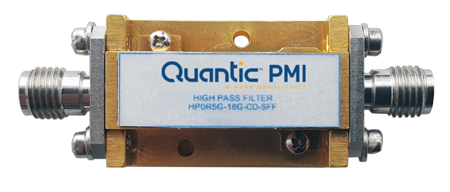

High Pass Filter

HP0R5G-18G-CD-SFF

Passband: 0.5 to 18 GHz

VSWR: 1.49:1

Insertion Loss: 1.65 dB

Rejection @ 0.3 GHz: 45.8 dB

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.32"

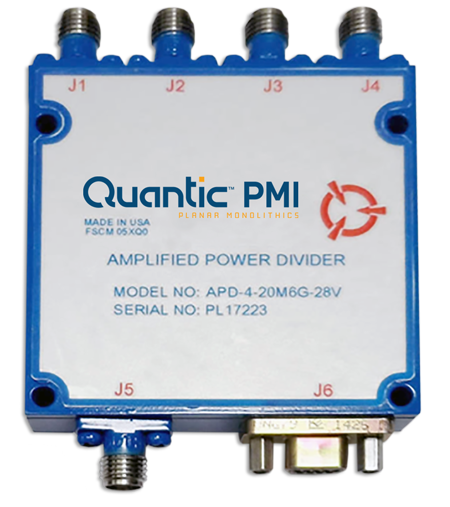

4-Way Power Divider

APD-4-20M6G-28V

Frequency Range: 0.02 to 6 GHz

Gain: 3.17 dB ± 1.19 dB

VSWR: 1.4:1

Noise Figure: 5.5 dB

OP1dB: 10 dBm

Input Power: 33 dBm

SMA Female Connectors

Housing: 2.0" x 2.0" x 0.4"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
