Quantic PMI (Planar Monolithics) Products in Action

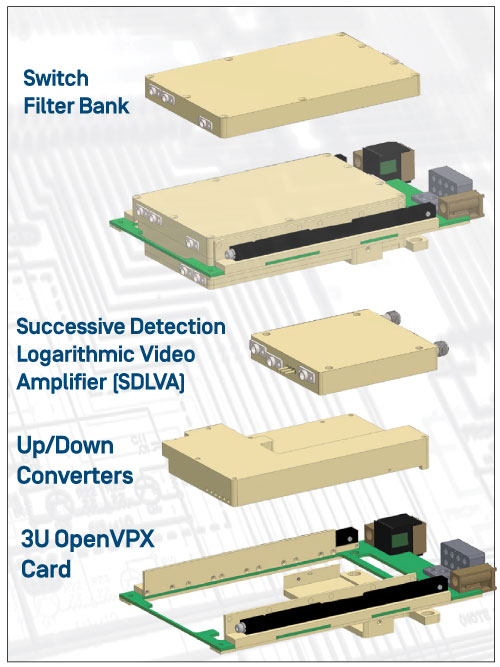

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

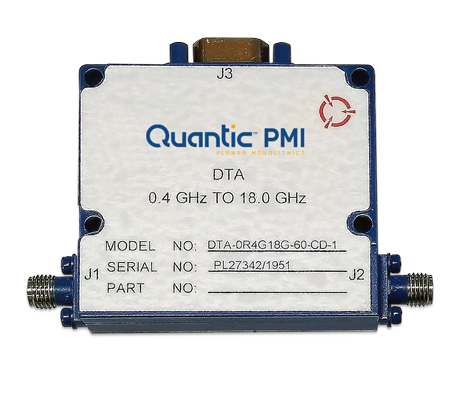

Digital Attenuator

PDVAN-8018-60-8-OPT25DBM

Frequency Range: 8 to 18 GHz

Mean Attenuation Range: 62 dB

LSB: 0.2 dB

Insertion Loss: 3.4 dB

VSWR: 1.9:1

Power Rating: +30 dBm

Attenuation Flatness: ±0.73 dB

Digital Control: 8-Bit

Switching Speed: 800 ns

SMA Female Connectors

Housing: 2.0" x 1.8" x 0.5"

SP1T Absorptive Switch

P1T-DC18-60-T-SFF-HSLVT

Frequency Range: DC to 18 GHz

Insertion Loss: 3.4 dB

Isolation: 80.4 dB

Leakage: 71.4 dB

VSWR: 1.5:1

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

Learn More

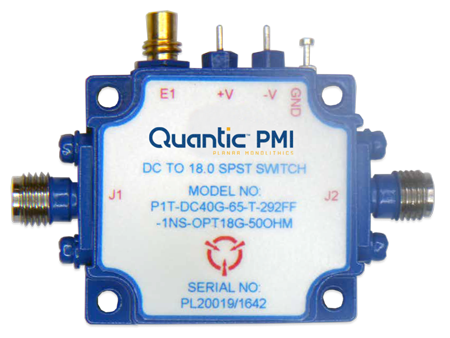

SP1T Absorptive Switch

P1T-DC40G-65-T-292FF-1NS-OPT18G-50OHM

Frequency Range: DC to 18 GHz

Isolation: 60 dB

Insertion Loss: 3.85 dB

VSWR: 1.66:1

Input Power: +17 dBm

Switching Speed: 6 ns

Rise/Fall Time: 1 ns

SMA Female Connectors

Housing: 1.3" x 1.2" x 0.5"

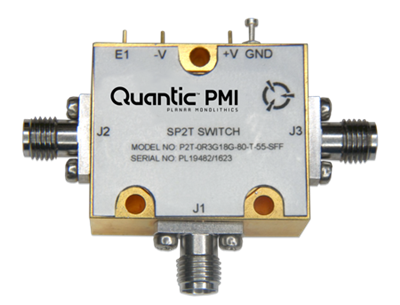

SP2T Absorptive Switch

P2T-0R3G18G-80-T-55-SFF

Frequency Range: 0.3 to 18 GHz

Insertion Loss: 3 dB

Isolation: 93.3 dB

VSWR: 1.88:1

Rise/Fall Time: 50 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.2" x 1.0" x 0.5"

Learn More

SP2T Reflective Switch

P2T-218-60-R-1W-SFF

Frequency Range: 2 to 18 GHz

Insertion Loss: 1.86 dB

Isolation: 61 dB

VSWR: 1.69:1

Switching Speed: 25 ns

Operational Input Power: +23 dBm

SMA Female Connectors

Housing: 0.69" x 0.53" x 0.35"

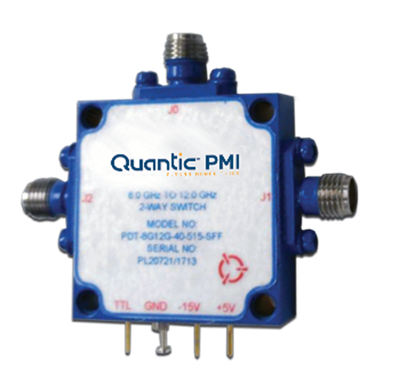

SP2T High Power Switch

PDT-8G12G-40-515-SFF

Frequency Range: 8 to 12 GHz

Insertion Loss: 1.8 dB

Isolation: 46.3 dB

Input Power: 40 dBm

Operating Power Peak: 57 dBm

VSWR: 1.5:1

Switching Speed: 200 ns

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.30"

Learn More

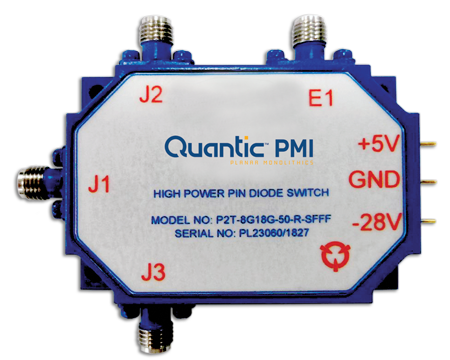

SP2T High Power Switch

P2T-8G18G-50-R-SFFF

Frequency Range: 8 to 18 GHz

Insertion Loss: 2.97 dB

Isolation: 50 dB

VSWR: 1.68:1

Switching Speed: 200 ns

Operational Input Power: 40 W

Peak Power: 300 W

Pulse Width: 10 µs

Duty Cycle: 13%

SMA Female Connectors

Housing: 2.30" x 1.55" x 0.50"

SP6T Absorptive Switch

P6T-2G20G-55-T-SFF

Frequency Range: 2 to 20 GHz

Isolation: 65.2 dB

Insertion Loss: 4.38 dB

Frequency Flatness: 0.6 dB

VSWR: 1.89:1

Input Power: +20 dBm

RF Switching Speed: 30 ns

Video Leakage: 1.3 V, 25 ns Window

SMA Female Connectors

Housing: 3.1" x 1.0" x 0.4"

Learn More

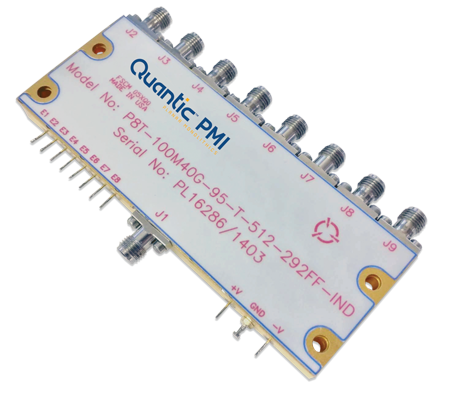

SP8T Absorptive Switch

P8T-100M40G-95-T-512-292FF-IND-OPT100M20G

Passband Frequency: 0.1 to 20 GHz

Insertion Loss: 4.68 dB

Isolation: 87.38 dB

VSWR: 1.81:1

Switching Speed: 100 ns

Input Power: +20 dBm

SMA Female Connectors

Housing: 4.0" x 1.5" x 0.40

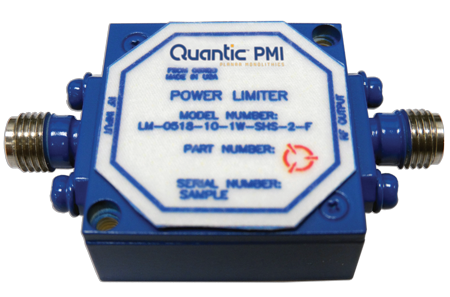

Limiter

LM-0518-10-1W-SHS-2-F

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 1.5 dB

VSWR: 1.67:1

Leakage: 13 dBm

Input Power: 1 W

Limiting Threshold: +10 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

Learn More

Limiter

LM-1G18G-15-25W-SMF

Frequency Range: 1 to 18 GHz

Insertion Loss: 1.95 dB

VSWR: 1.91:1

Recovery Time: 100 ns

RF Power Handling: 10 W

Leakage Power: 17 dBm

SMA Male/Female Connectors

Housing: 1.0" x 1.0" x 0.4"

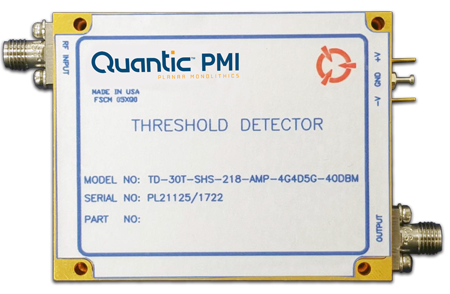

Threshold Detector

TD-30T-SHS-218-AMP-OPT4G4D5G-40DBM

Frequency Range: 4 to 4.5 GHz

Fixed Threshold Level: -41 dBm

Operating Input Power Level: -35 to -15 dBm

Absolute Max Input Power Level: 10 dBm

Output Pulse Width: ±20 ns

Propagation Delay: 10 ns

SMA Female Connectors

Housing: 2.5" x 2.0" x 0.5"

Learn More

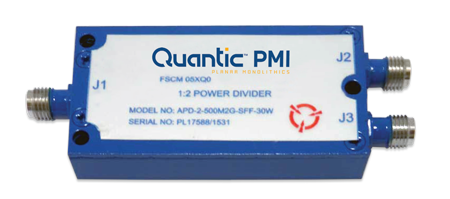

2-Way Power Divider

APD-2-500M2G-SFF-30W

Frequency Range: 0.5 to 2 GHz

Insertion Loss: 0.37 dB

VSWR: 1.18:1

Isolation: 24.18 dB

Amplitude Balance: 0 dB

Phase Balance: 0.9°

SMA Female Connectors

Housing: 2.13" x 1.10" x 0.39"

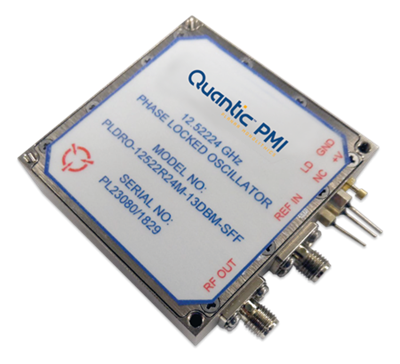

Phase Locked Microwave Oscillator

PLDRO-12522R24M-13DBM-SFF-ROHS

Frequency Range: 12.52224 GHz

External Reference: 0.13044 GHz

Reference Input Power: 0 ± 3 dB

Output Power: 14.64 dBm

Spurious: -80.92 dBc

Harmonics: -37.65 dBc

SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

Learn More

Directional Coupler

PDC-800M2D5G-10C-NFF-60W

Frequency Range: 0.8 to 2.5 GHz

Insertion Loss: 0.33 dB

VSWR: 1.04:1

Directivity: 32.3 dB

Coupling: 10.24 dB

Frequency Sensitivity: 0.24 dB

Power Handling: 60 W

N Female Connectors

Housing: 3.94" x 1.10" x 0.87"

Hybrid Coupler

PCH-180-5R6G5R8G-SFF

Frequency Range: 5.6 to 5.8 GHz

Nominal Split: 3.01 dB

Insertion Loss: 0.5 dB

Isolation: 23.32 dB

Amplitude Balance: ±0.15 dB

Phase Balance: ±0.24°

VSWR: 1.16:1

SMA Female Connectors

Housing: 1.38" x 1.00" x 0.433"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
